Model NO.
AE-S80 Series
+ Double beam spectrophotometer with highly stable optics.
+ Extremely versatile with full functionality from 190 to 1100nm.
+ Variable spectral bandwidth 0.5, 1, 2, 4,5nm.
+ 2 or 8 cell holder available.
+ 6 inches LCD display & integrated user interface.
+ USB port for data storage.
+ ISO/CE Certificate passed.
+ A & E Lab PC software included as standard.
+ Extensive range of accessories available.
Quantity:
AELAB UV VIS Spectrophotometer Single Beam AE-S80 Series

AE-S90/AE-S80 Series are wide screen single/double beam spectrophotometer. Its integrated design assures long term stability and durability. The highly stable optics and one or two detectors measure the sample and reference simultaneously optimising measurement accuracy. It has measurement modes for photometrics, concentration, multi-wavelength, spectrum scanning, kinetics, quantitation, DNA and protein analysis. ThePC software is supplied as standard and offers additional functionality with preloaded methods for DNA and protein analysis, as well as extensive post-measurement tools, unlimited results saving and easy export of data.

Features:
+ Double beam spectrophotometer with highly stable optics.
+ Extremely versatile with full functionality from 190 to 1100nm.
+ Variable spectral bandwidth 0.5, 1, 2, 4,5nm.
+ 2 or 8 cell holder available.
+ 6 inches LCD display & integrated user interface.
+ USB port for data storage.

+ ISO/CE Certificate passed.
+ A & E Lab PC software included as standard.
+ Extensive range of accessories available.


Ordering Models:


Order CodeDescription
AE-S90-MDDouble beam ,Large screen, 2 Single Cell holderBandwith: 0.5/1.0/2.0/4.0/5.0nm, with PC software.
AE-S90-1D Bandwith: 1nm, with PC software.
AE-S90-2DBandwith: 1.8nm, with PC software.
AE-S80-MSSingle beam ,Large screen, 4 Cell holderBandwith: 0.5/1.0/2.0/4.0/5.0nm, with PC software.
AE-S80-1SBandwith: 1nm, with PC software.
AE-S80-2SBandwith: 1.8nm, with PC software.

Technical Specifications:

Wavelength
Wavelength Range190-1100nm
Wavelength Accuracy±0.3nm
Wavelength Repeatability0.2nm
Bandwith1nm/1.8nm/0.5,1,2,4,5nm
Photometric
Accuracy±0.3%T
Photometric Repeatability0.2%T
Photometric Display Range-0.3-3A,0-200%T,0-9999C
StabilityAE-S90 :± 0.001A/h @ 500nm   AE-80 : 0± 0.002A/h @ 500nm
Baseline Flatness±0.001A
Noise±0.001A
Stray Light≤0.05%T @220nm, 360nm
Others
Data Output PortUSB
Printer PortParallel Port
Optical SystemDouble Beam (1200 lines/mm grating)
DisplayLCD (320x240 Dots )
LampsDeuterium & Tungsten Halogen Lamp
DetectorSilicon Photodiode
SoftwareUV PC Software
Power SupplyAC 220V/50Hz, 110V/60Hz.
Packing Size & Gross Weight860x660x465mm & 35kg
860x660x465mm & 37kg(AE-S90-MD)

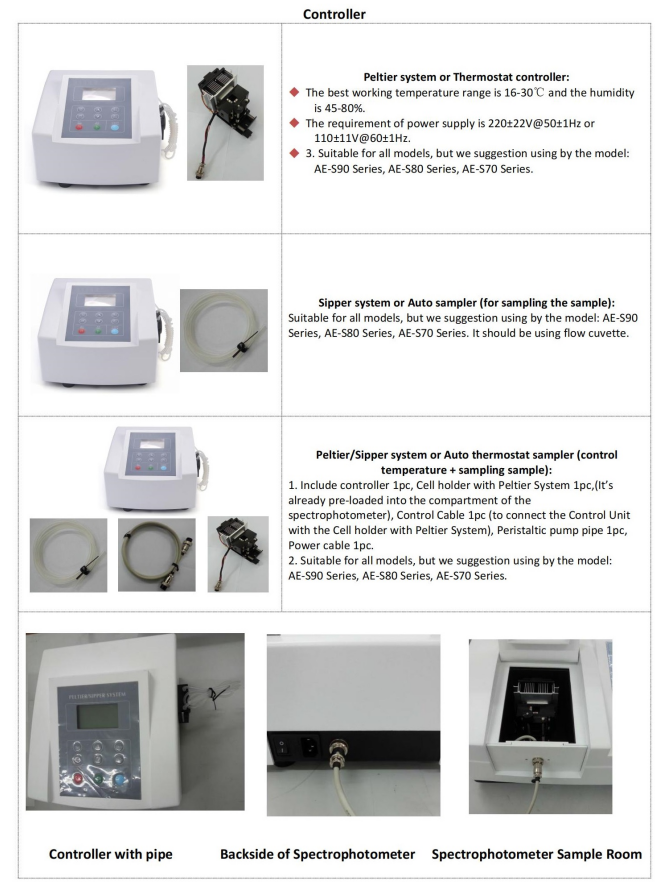

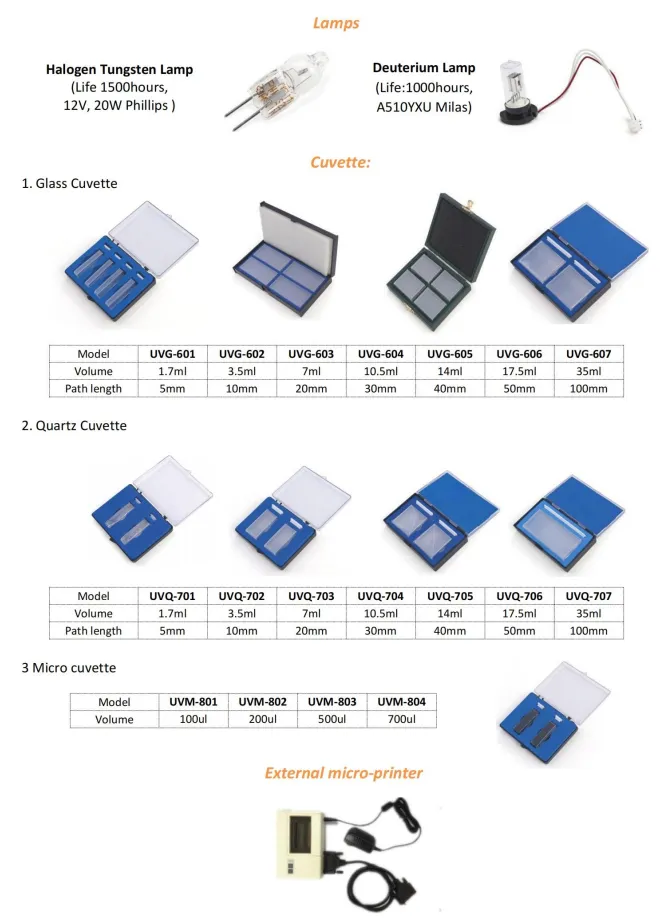

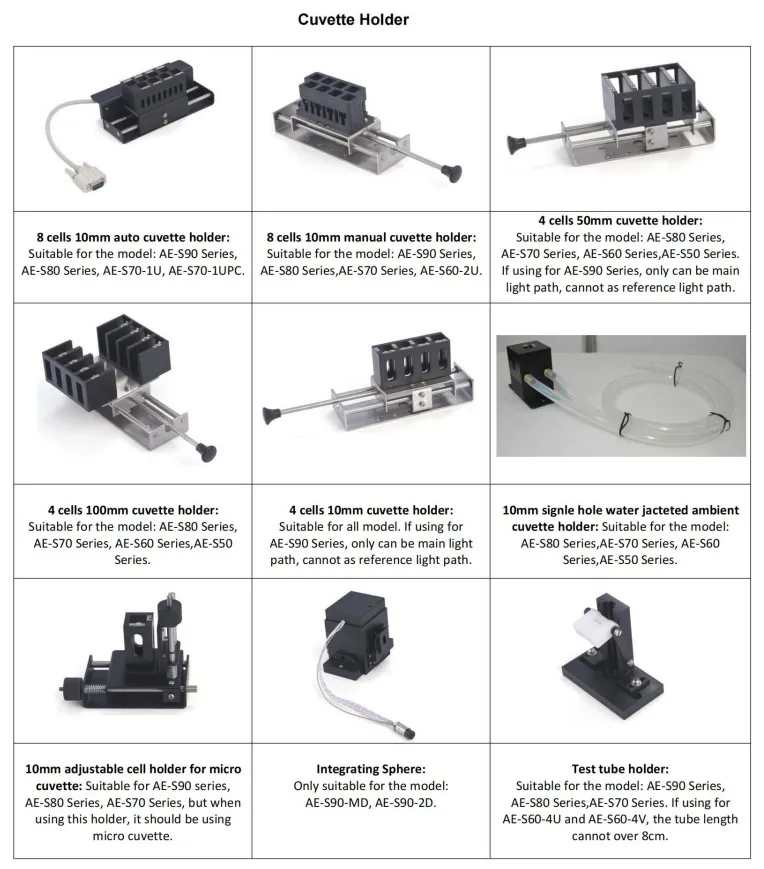

Spectrophotometer Optional Accessories

Spectrophotometer Optional Accessories


​​​​​​​
