AELAB UV VIS Spectrophotometer Double Beam AE-S90 Series

Model NO.: AE-S90 Series
Minimum order quantity:: 1

+ Double beam spectrophotometer with highly stable optics.
+ Extremely versatile with full functionality from 190 to 1100nm.
+ Variable spectral bandwidth 0.5, 1, 2, 4,5nm.
+ 2 or 8 cell holder available.
+ 6 inches LCD display & integrated user interface.
+ USB port for data storage.
+ ISO/CE Certificate passed.
+ A & E Lab PC software included as standard.

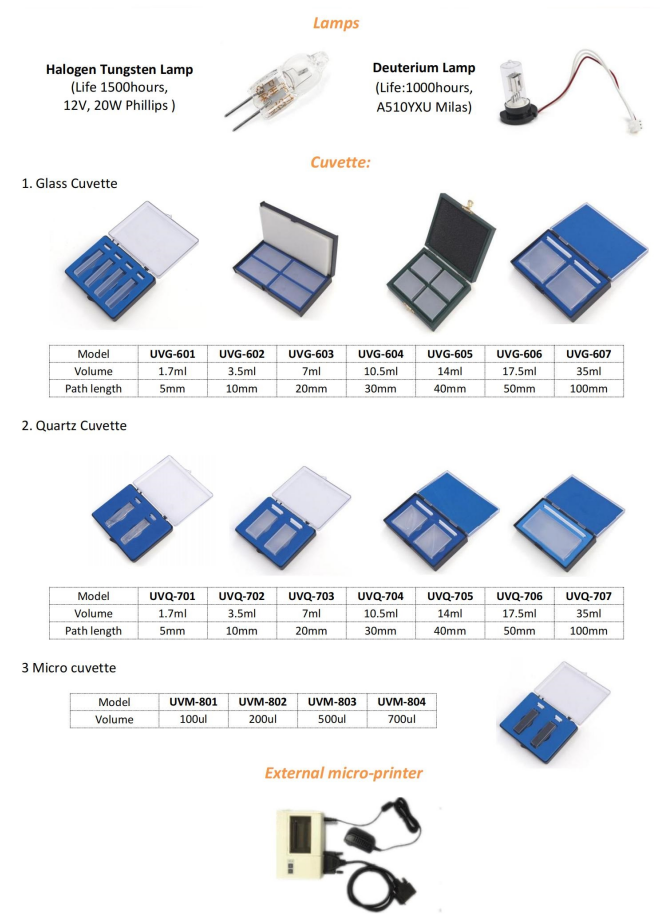

+ Extensive range of accessories available.

Quantity:

Product Description
Brochure

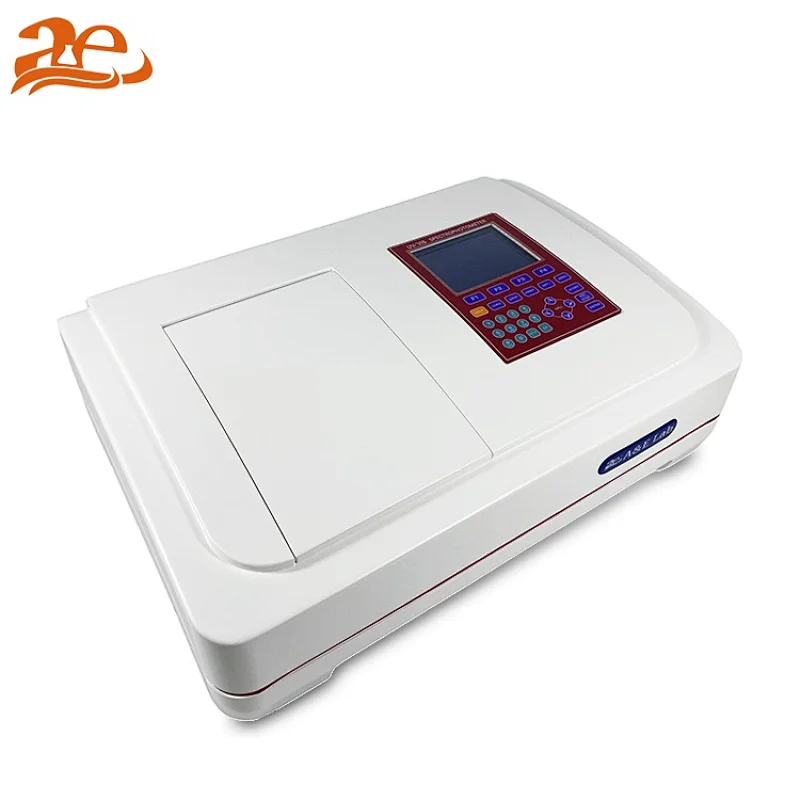

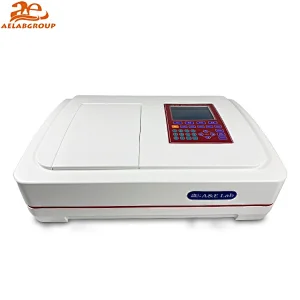

AELAB UV VIS Spectrophotometer Double Beam AE-S90 Series

AE-S90 Series are wide screen double beam spectrophotometer. Its integrated design assures long term stability and durability. The highly stable optics and one or two detectors measure the sample and reference simultaneously optimising measurement accuracy. It has measurement modes for photometrics, concentration, multi-wavelength, spectrum scanning, kinetics, quantitation, DNA and protein analysis. ThePC software is supplied as standard and offers additional functionality with preloaded methods for DNA and protein analysis, as well as extensive post-measurement tools, unlimited results saving and easy export of data.

Features:
+ Double beam spectrophotometer with highly stable optics.
+ Extremely versatile with full functionality from 190 to 1100nm.
+ Variable spectral bandwidth 0.5, 1, 2, 4,5nm.

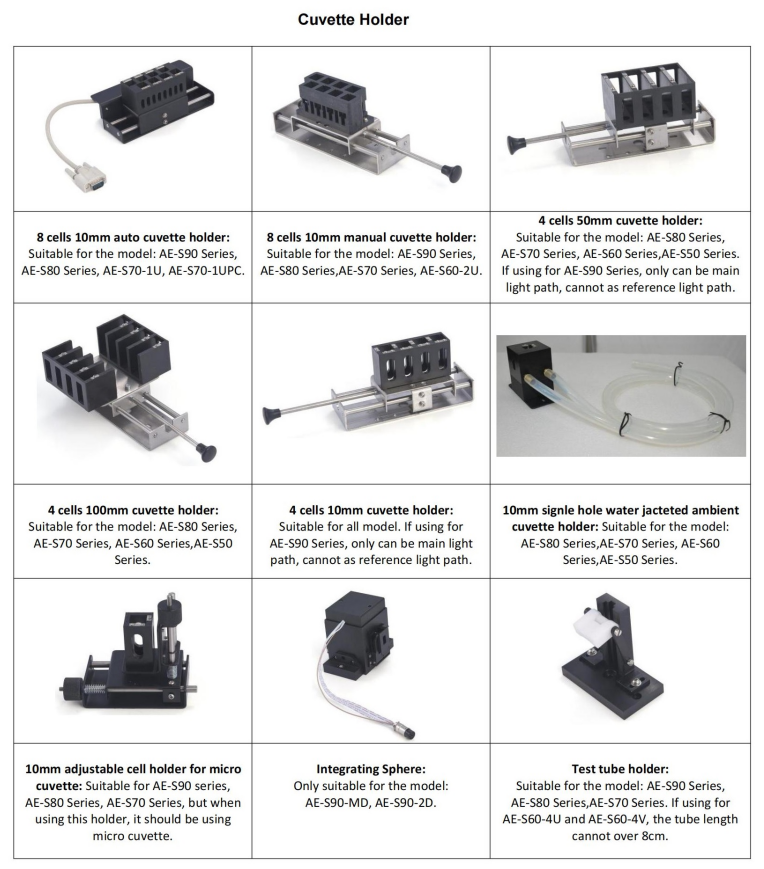

+ 2 or 8 cell holder available.
+ 6 inches LCD display & integrated user interface.
+ USB port for data storage.
+ ISO/CE Certificate passed.
+ A & E Lab PC software included as standard.
+ Extensive range of accessories available.

Ordering Models:

Order Code	Description
AE-S90-MD	Double beam ,Large screen, 2 Single Cell holder	Bandwith: 0.5/1.0/2.0/4.0/5.0nm, with PC software.
AE-S90-1D		Bandwith: 1nm, with PC software.
AE-S90-2D		Bandwith: 1.8nm, with PC software.

Technical Specifications:

Wavelength
Wavelength Range	190-1100nm
Wavelength Accuracy	±0.3nm
Wavelength Repeatability	0.2nm
Bandwith	1nm/1.8nm/0.5,1,2,4,5nm
Photometric
Accuracy	±0.3%T
Photometric Repeatability	0.2%T
Photometric Display Range	-0.3-3A,0-200%T,0-9999C
Stability	AE-S90 :± 0.001A/h @ 500nm
Baseline Flatness	±0.001A
Noise	±0.001A
Stray Light	≤0.05%T @220nm, 360nm
Others
Data Output Port	USB
Printer Port	Parallel Port
Optical System	Double Beam (1200 lines/mm grating)
Display	LCD (320x240 Dots )
Lamps	Deuterium & Tungsten Halogen Lamp
Detector	Silicon Photodiode
Software	UV PC Software
Power Supply	AC 220V/50Hz, 110V/60Hz.
Packing Size & Gross Weight	860x660x465mm & 35kg 860x660x465mm & 37kg(AE-S90-MD)
