AELAB Touch Screen UV VIS Spectrophotometer Double Beam AE-S90-TD
Features:
+ Color Touch series are
+ Intelligent alarm function.
+ Display several groups of data at the same time for direct reading.
+ New panel with touch screen.
+ System encryption function.
+ Module design for easy operation.
Ordering Models:
Technical Specifications:

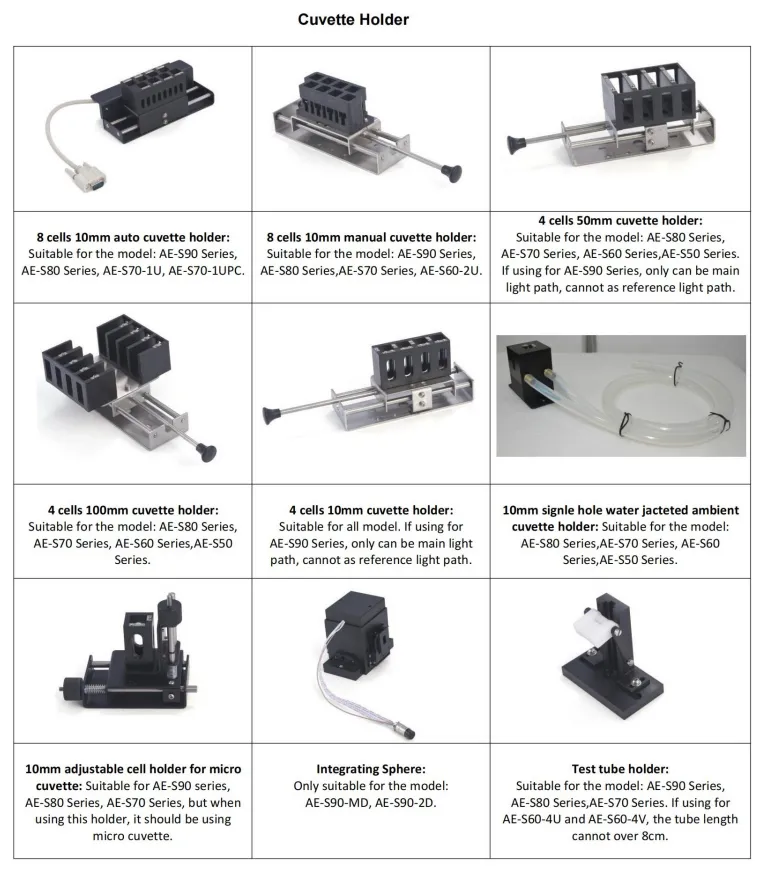

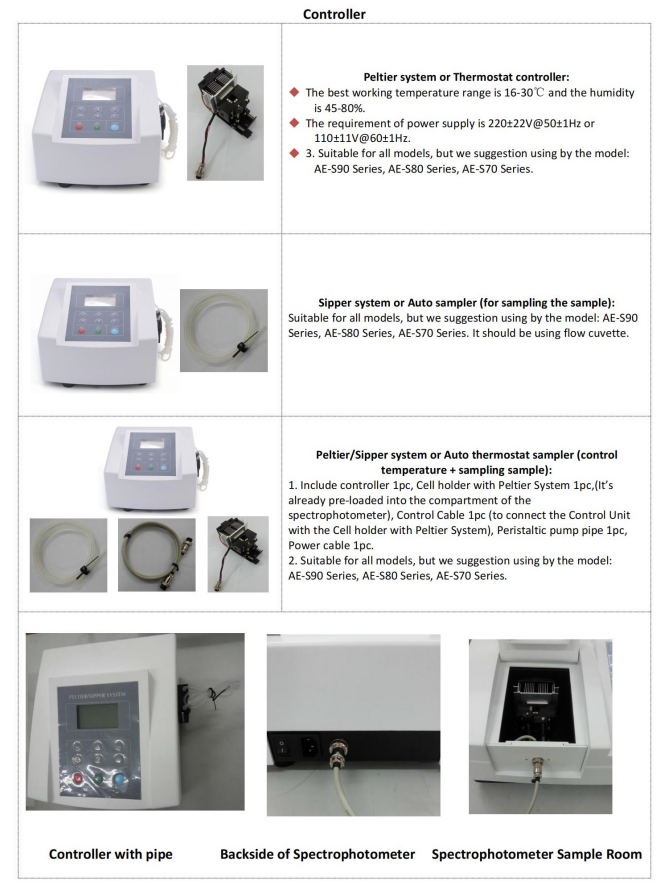

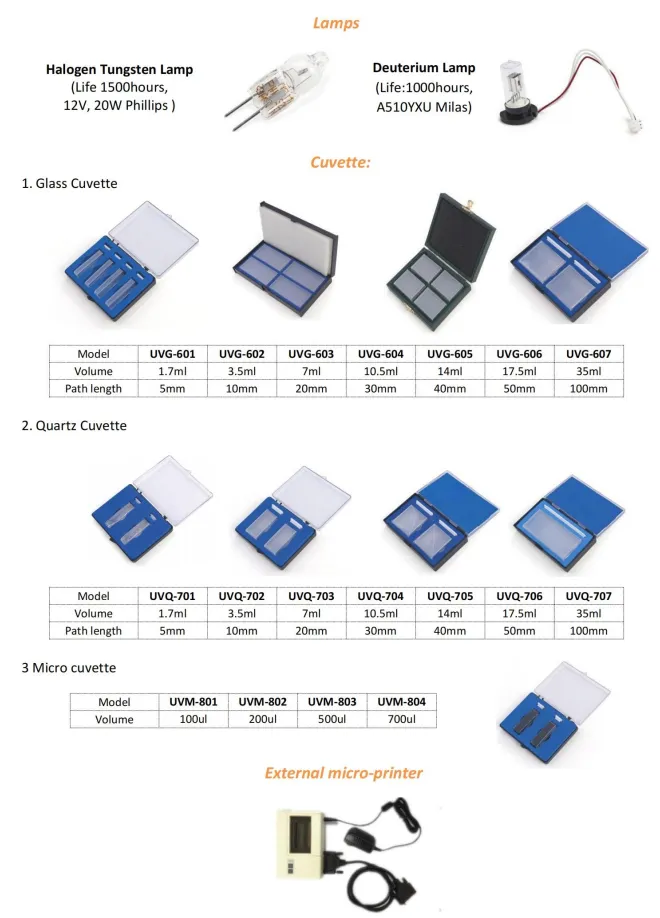

Spectrophotometer Optional Accessories
Spectrophotometer Optional Accessories
* 800x480 touch screen display which shows clear graphs.
* Stand-along system which can realize spectrum measurement, quantitative, wavelength scanning, kinetics, system setting directly on the instrument.
* The instrument uses a rigid 8mm die-case aluminumm base as its optical mount to ensure instrument stability and reliablity.
* Automatic system calibration an dpositioning to recover deviation after long-time use.
* Imported main optical spare parts to ensure low stray light, stability and reliability.
* With powerful menmory, can print data and graphs in A4 format directly by connecting to a printer.
* Data can export to USB directly.
Features:
+ Color Touch series are
+ Intelligent alarm function.
+ Display several groups of data at the same time for direct reading.
+ New panel with touch screen.
+ System encryption function.
+ Module design for easy operation.
Ordering Models:
| Order Code | Description |
| AE-S80-TS Single beam | Touch Screen, Bandwidth: 2nm, Wavelength range 190-1100nm . Without PC Software, the data can transfer from USB interface or connect to computer print it. |
| AE-S90-TD Double beam |
Technical Specifications:
| Wavelength | |
| Wavelength Range | 190-1100nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.2nm |
| Band Width | 2nm |
| Photometric | |
| Photometric Accuracy | ±0.2%T (0-100%T) ±0.002Abs (0-0.5Abs) ±0.004Abs (0.5-1.0Abs) |
| Photometric Repeatability | ≤0.15%T (0-100%T) 0.001Abs (0-0.5Abs) 0.002Abs (0.5-1.0Abs) |
| Photometric Display Range | 0-200%T, -0.4~4.0A, 0-9999C |
| Stability | ±0.001A/h (@500nm) |
| Baseline Flatness | ±0.001A |
| Noise | ±0.0005A |
| Stray Light | ≤0.05%T@220nm, 360nm |
| Others | |
| Data Output Port | USB |
| Printer Port | USB port |
| Display | 800x480 touch screen |
| Lamps | Imported D2 lamp & W lamp |
| Detector | Silicon photodiode |
| Power Supply | AC220V/50Hz or 110V/60Hz |
| Packing Size & Gross Weight | 860x660x465mm - 37kg (AE-90-TD) 860x660x465mm - 36kg（AE-S80-TS） |
Spectrophotometer Optional Accessories
Spectrophotometer Optional Accessories
