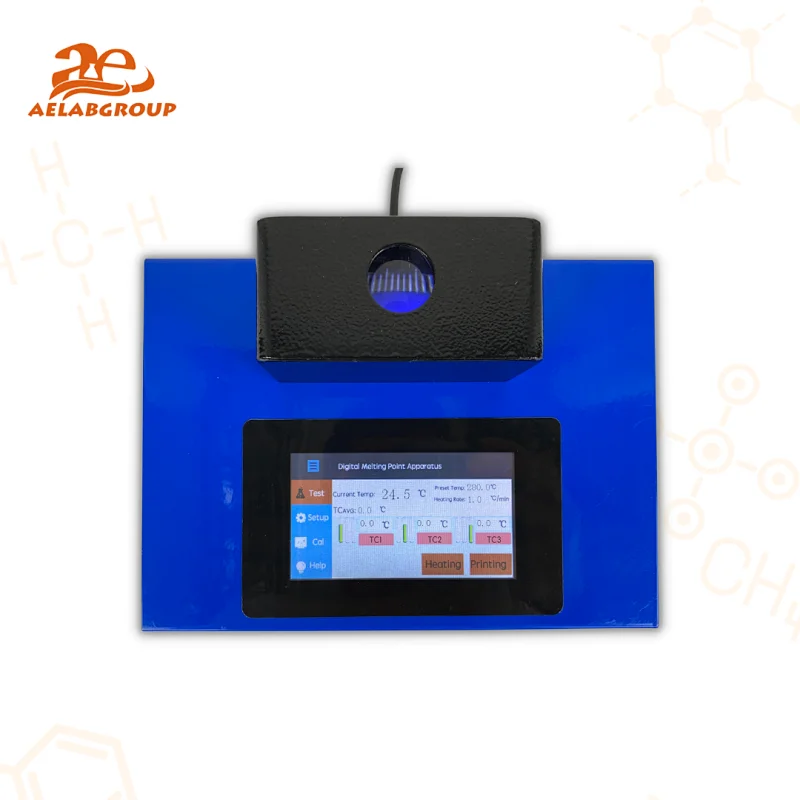

AELAB Colorful Touch Screen Melting Point Device DMP-600
AELAB Melting point device is widely using in chemical industry and medicine. It is a necessary instrument for the production of food, drugs, spices, dyes and other organic crystal substances.
Application fields:
+ Drug Testing
+ Pharmaceutical
+ Medical Industries
Features:
+ Colorful Touch Screen Display.
+ Increase Temperature can easy setting from 0.1 to 10℃/min.
+ One time can test 3 samples. Temperature can reach to 320℃.
+ High resolution microscope lenses can observe sample clearly.
+ Built-in cooling fan can easy come down temperature and test next samples.
+ PID control temperature, fully closed design of furnace body to avoid any empyrosis for the user.
Display Detail:

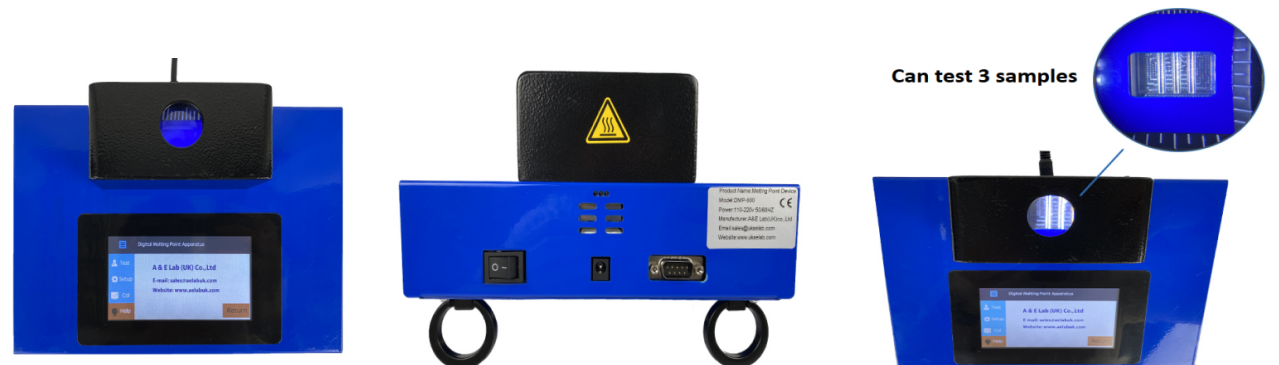

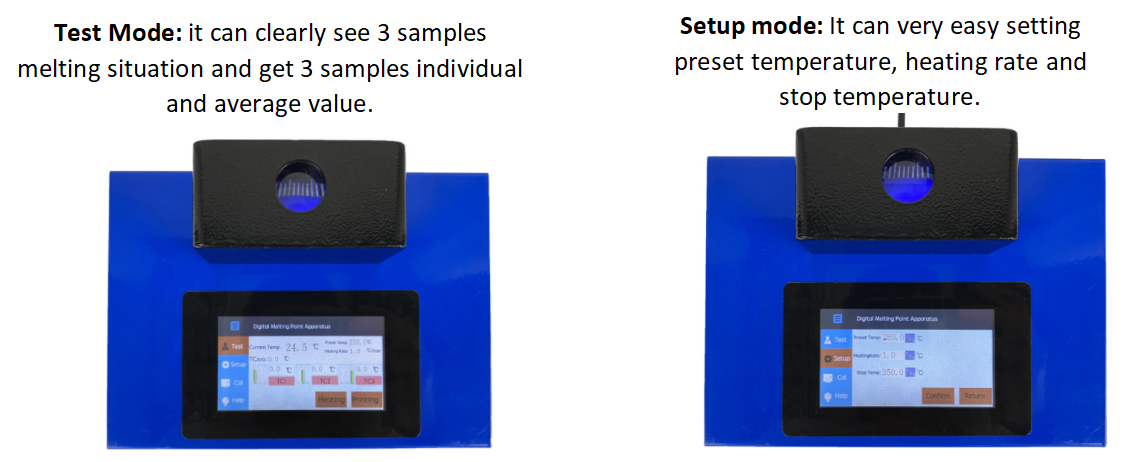

The more details for this machine:
Display Detail:
#aluminum melting point
#melting point of steel
AELAB Melting point device is widely using in chemical industry and medicine. It is a necessary instrument for the production of food, drugs, spices, dyes and other organic crystal substances.
Application fields:
+ Drug Testing
+ Pharmaceutical
+ Medical Industries
Features:
+ Colorful Touch Screen Display.
+ Increase Temperature can easy setting from 0.1 to 10℃/min.
+ One time can test 3 samples. Temperature can reach to 320℃.
+ High resolution microscope lenses can observe sample clearly.
+ Built-in cooling fan can easy come down temperature and test next samples.
+ PID control temperature, fully closed design of furnace body to avoid any empyrosis for the user.
Technical Specifications:
| Model | DMP-600 | |
| Temperature Range | Room Temperature to 320℃ | |
| Cooling Function | NO | |
| Resolution | 0.1℃ | |
| Temperature Increase Speed | 0.1℃-10℃ (100temperature point infinitely adjustable) | |
| Temperature Control Method | PID control temperature, fully closed design of furnace body | |
| Accuracy | ±0.4℃（<250℃）,±0.7℃（>250℃） | |
| Repeatability | When0.1℃/Min,repeatability±0.3℃ | |
| Display | FTF High Solution Color Touch Screen | |
| Output | RS232 interface | |
| Sample Tube | external diameter φ1.6mm,internal diameter :φ1.2mm | |
| Voltage | 100V-240V 50HZ-60HZ | |
| Power | 100W | |
| Size | 250mm*250mm*150mm | |
| Weight | 1.2kg | |
Display Detail:
The more details for this machine:
Display Detail:
#aluminum melting point
#melting point of steel
