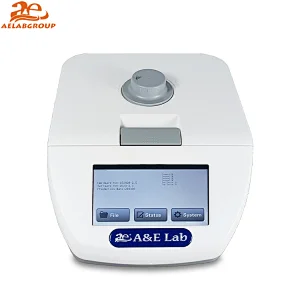

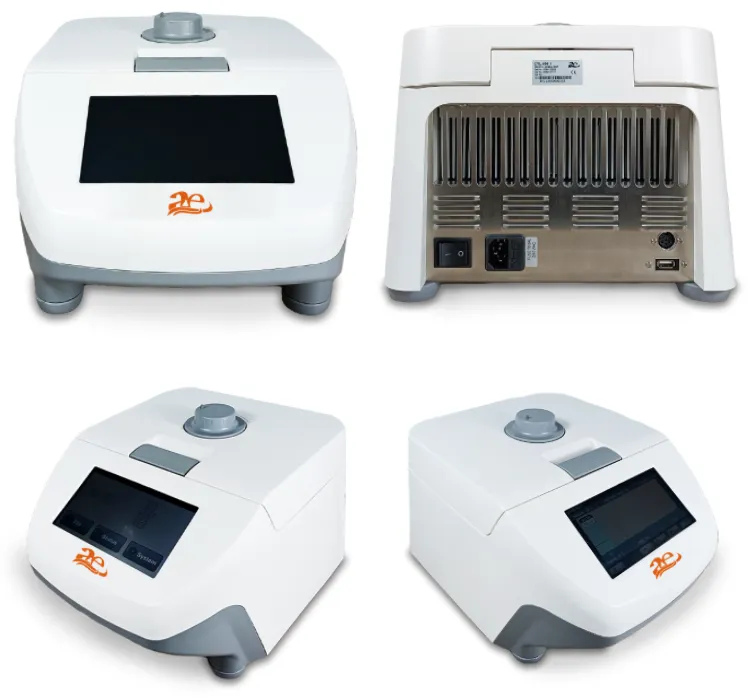

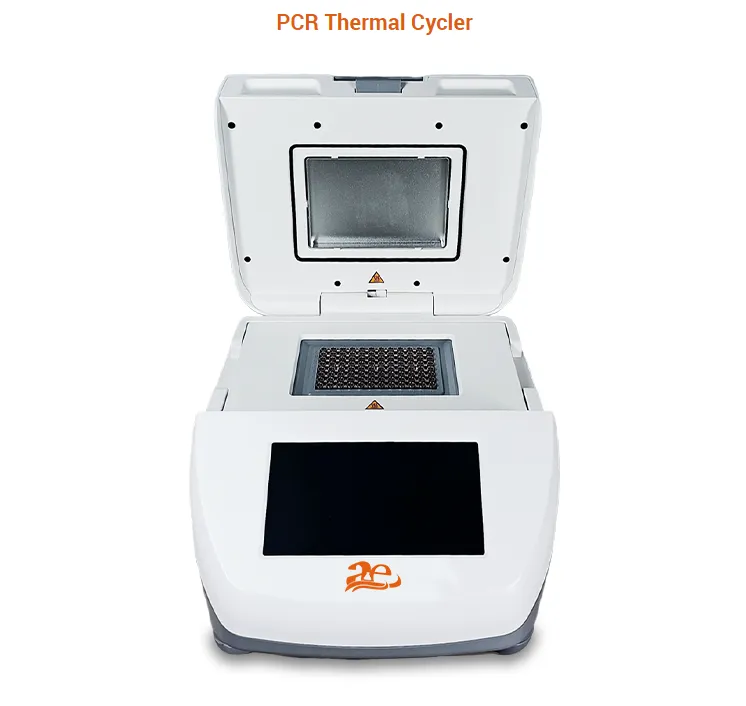

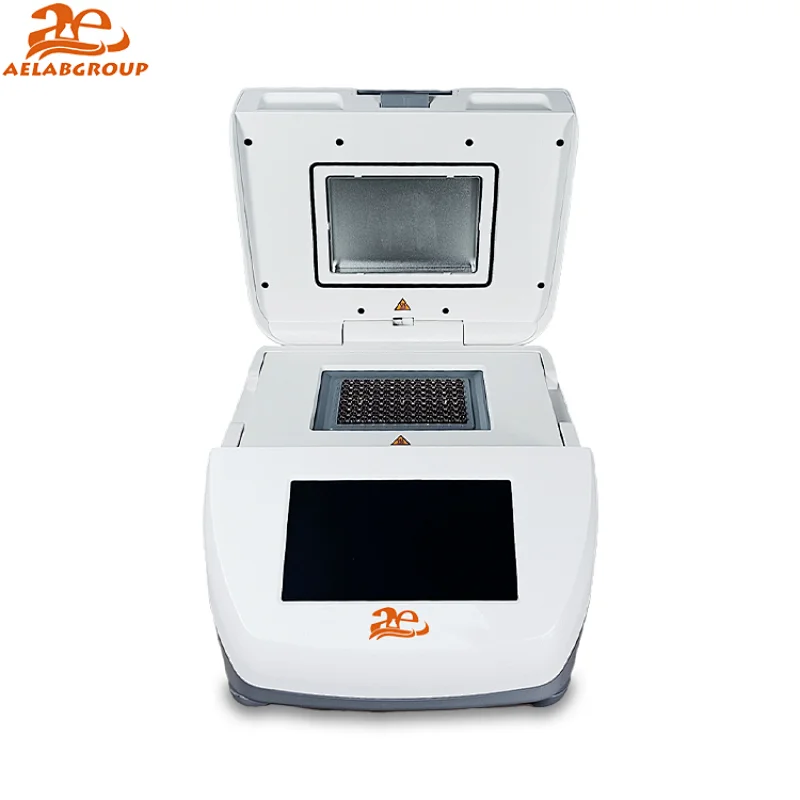

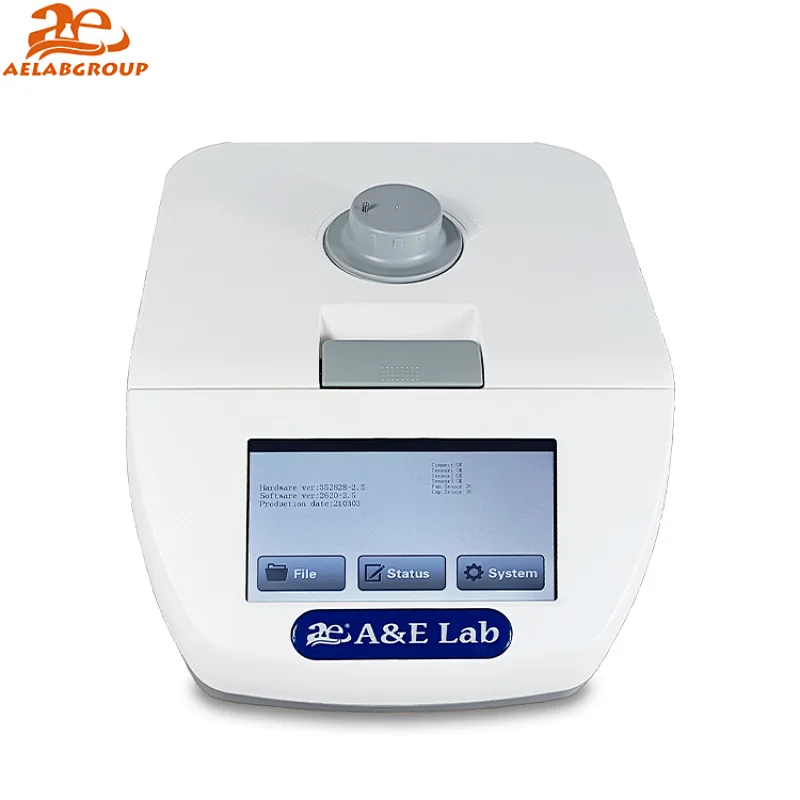

AELAB Touch Screen Thermal Cycler CYL-005-1 CYL-006-1
Applications:
Thermal Cycler is essential laboratory instrument useful in molecular genetics research areas like genetic finger printing ,genetic testing,genetic chip, genetic cloning, genetic expression, DNA cloning, DNA sequencing, prenatal testing, tissue typing, preimplantation of genetic diagnosis, quantitative determination of gene expression levels etc ,and applied market like drug discovery, agriculture, food industry, etc.
Also used to amplify DNA segments and perform temperature sensitive reactions. These thermal cyclers consist of a block designed to accommodate micro centrifuge tubes or 96-well plates for precise temperature control and uniform operation.
Features:
+ The hot lid is flexible to press the tube caps or plate cover uniformly and ensure minimum loss of evaporation.
+ Hot lid auto-off function: if the module temperature is lower than 3 degree, the hot lid function will automatically turn off.

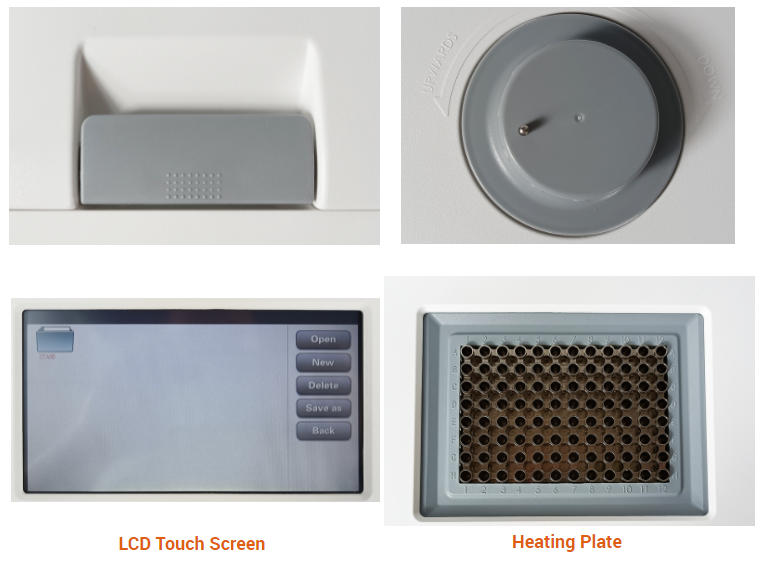

+ Large LCD digital touch screen for easy programming with clear display and user friendly software.
+ User defined large program storage system of up to 16 folders and 16 files in each folder.
+ High precision temperature control with high heating/ cooling ramping rates.
+ Homogeneous temperature across plate wells or PCR tubes.
+ Aluminum heating block for efficient heat transfer.
Technical Specifications:
Applications:
Thermal Cycler is essential laboratory instrument useful in molecular genetics research areas like genetic finger printing ,genetic testing,genetic chip, genetic cloning, genetic expression, DNA cloning, DNA sequencing, prenatal testing, tissue typing, preimplantation of genetic diagnosis, quantitative determination of gene expression levels etc ,and applied market like drug discovery, agriculture, food industry, etc.
Also used to amplify DNA segments and perform temperature sensitive reactions. These thermal cyclers consist of a block designed to accommodate micro centrifuge tubes or 96-well plates for precise temperature control and uniform operation.
Features:
+ The hot lid is flexible to press the tube caps or plate cover uniformly and ensure minimum loss of evaporation.
+ Hot lid auto-off function: if the module temperature is lower than 3 degree, the hot lid function will automatically turn off.
+ Large LCD digital touch screen for easy programming with clear display and user friendly software.
+ User defined large program storage system of up to 16 folders and 16 files in each folder.
+ High precision temperature control with high heating/ cooling ramping rates.
+ Homogeneous temperature across plate wells or PCR tubes.
+ Aluminum heating block for efficient heat transfer.
Technical Specifications:
| Model | CYL-006-1 | CYL-005-1 |
| Sample Capacity | 96X0.2mL PCR tube | 96X0.2mL PCR tube |
| 8X12 PCR plate or 96 well plate | 8X12 PCR plate or 96 well plate | |
| Heating Temperature Range | 4-105℃ | |
| Lid Temperature Range | 30-110℃ | |
| Temperature Display Accuracy | ±0.1℃ | |
| Temperature Control Accuracy [at 55℃] | ±0.3℃ | |
| Temperature uniformity[at 55℃] | <0.3℃ | |
| Max. Heating/Cooling Rate | 5℃Sec | 3℃/Sec |
| Gradient Temperature Setting Range | 30-99℃ | ---- |
| Gradient Range | 1-42℃ | --- |
| Adapter block material | aluminum | |
| Display | 7” LCD 800x480 | |
| Input | Touch panel | |
| User defined file system | Max. 30 segments 99 cycles max. 16 folder and 16 files each folder | |
| Power off protection | Yes | |
| Power Supply | 100-120V/200-240V,50/60Hz | |
| Dimension [D×W×H] ( without the heating block ) | 280x370x250 mm | |
| Weight | 11kg | |
Send Message
Related Products

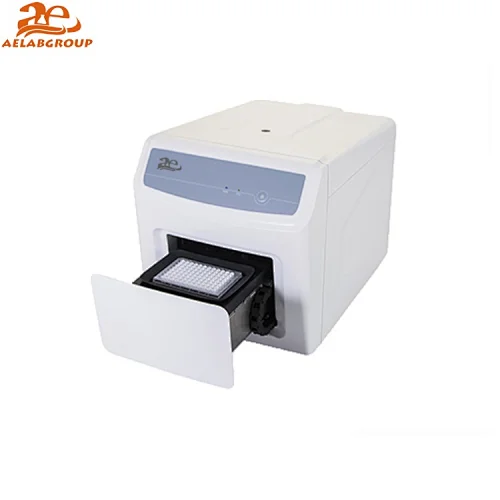

Model NO. Accurate96-x4 , Accurate96-x6

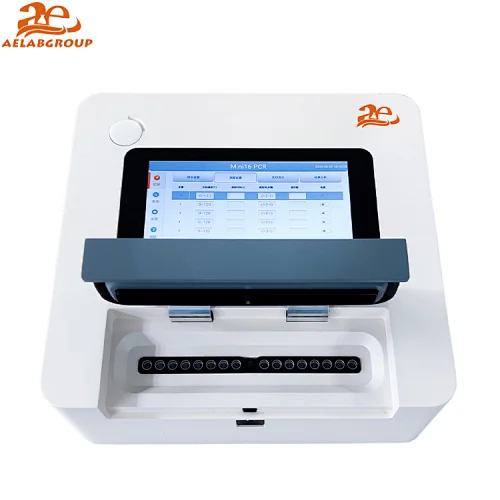

Model NO. Mini Real Time PCR
