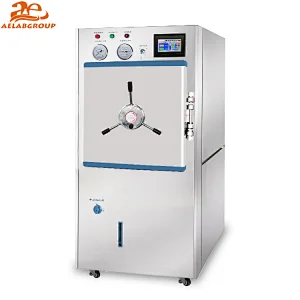

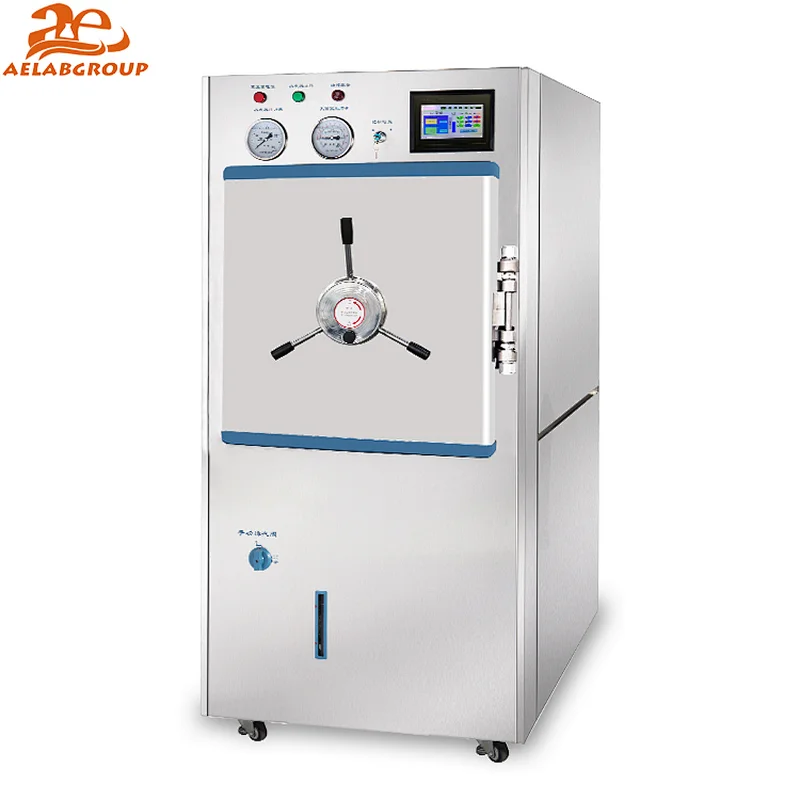

AELAB Steam Sterilizer Autoclave Sterilization AE-H120KC AE-H200KC AE-H300KC

Model NO.: AE-H120KC AE-H200KC AE-H300KC
Minimum order quantity:: 1

+ Intelligent microcomputer control system: Using LED digital control system; After sterilization finished, sterilizer will automatic alarm and shut down.
+ Electric interlock device: The control system can real time supervision the sterilizer chamber’s temperature and pressure. Only under the safety temperature and pressure can open the sterilizer’s cover. Make sure the operator’s safety.
+ The structure of cover’s opening: Using 8 rotary extendable stick to improve sealing and safety performance.
+ Preset program: Can preset fixed program that sterilize and dry the liquid and solid body.
+ Memory storage system: Store the last operation program so convenient next operation.
+ Exhaust steam control: After sterilization, exhaust steam valve automatically work when sterilization time run out(apply to Auto exhaust and dry configuration).
+ Interface check: Provide temperature and pressure check interface; convenient to check multiple position temperature measurement.
+ Digital display screen: Digital display screen and working indicator light display running state.
+ Safety devices: Interlock device, overtemperature and over pressure protecting system, burned protection, safety relief valve, current leakage protector and automatic fault detection.
+ Print function(add configuration): Print the current temperature and sterilization time.

Quantity:

Product Description

AELAB Steam Sterilizer Autoclave Sterilization AE-H120KC AE-H200KC AE-H300KC
+ Intelligent microcomputer control system: Using LED digital control system; After sterilization finished, sterilizer will automatic alarm and shut down.
+ Electric interlock device: The control system can real time supervision the sterilizer chamber’s temperature and pressure. Only under the safety temperature and pressure can open the sterilizer’s cover. Make sure the operator’s safety.
+ The structure of cover’s opening: Using 8 rotary extendable stick to improve sealing and safety performance.
+ Preset program: Can preset fixed program that sterilize and dry the liquid and solid body.
+ Memory storage system: Store the last operation program so convenient next operation.
+ Exhaust steam control: After sterilization, exhaust steam valve automatically work when sterilization time run out(apply to Auto exhaust and dry configuration).
+ Interface check: Provide temperature and pressure check interface; convenient to check multiple position temperature measurement.
+ Digital display screen: Digital display screen and working indicator light display running state.
+ Safety devices: Interlock device, overtemperature and over pressure protecting system, burned protection, safety relief valve, current leakage protector and automatic fault detection.
+ Print function(add configuration): Print the current temperature and sterilization time.

Technical Specifications:

Parameter/Model	AE-H120KC	AE-H200KC	AE-H300KC
Configuration	Semi-automatic Control	Semi-automatic Control	Semi-automatic Control
The main material	Stainless steel	Stainless steel	Stainless steel
Volume/GW	120L/225Kg	200L/300Kg	300L/335Kg
Voltage/Power	380V/2.5Kw X 3	380V/3kw X 3	380V/4Kw X 3
Packing size(L x W x H mm)	1340x730x1700	1640x830x1800	1640x930x1900
Product size(L x W x H mm)	1220x620x1540	1550x720x1640	1550x820x1740
Sterilization chamber volume(D x H mm)	400 x 960	500 x 1120	600 x 1240
Basket size(Upper length X upper width X lower length X lower width X height mm)	380x340x380x225x140	480x440x480x250x195	500x540x500x300x230
Time setting range	0-99 h	0-99 h	0-99 h
Rated working pressure	0.217MPa	0.217MPa	0.217MPa
Sterilization temperature setting range	50～134℃	50～134℃	50～134℃
