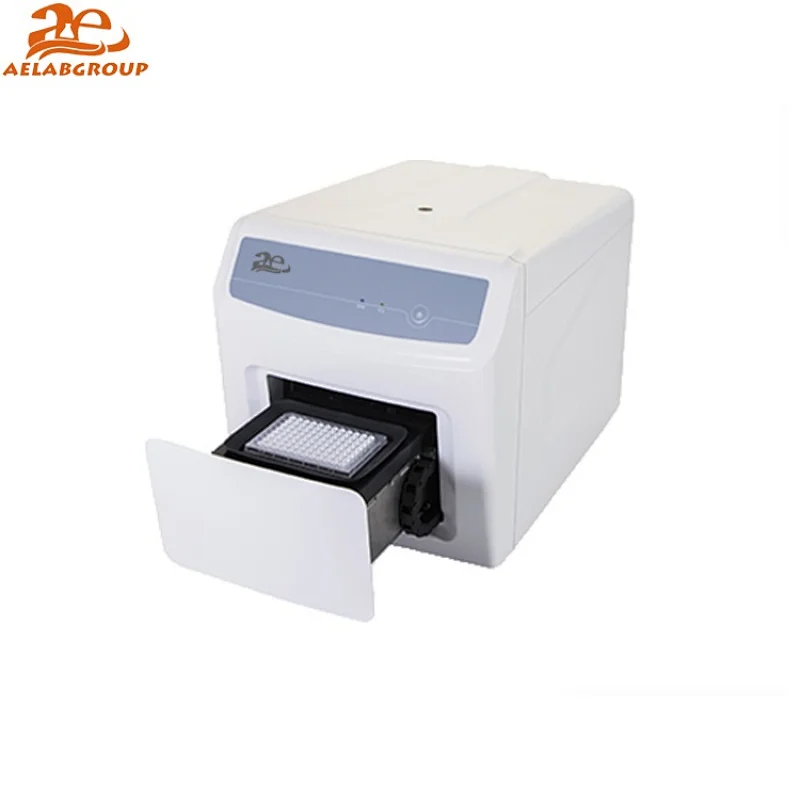

AELAB Real Time PCR Fast Nucleic Acid Testing 96 wells
As a necessary choice for quantitative analysis of molecular biology, real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications.
Features:

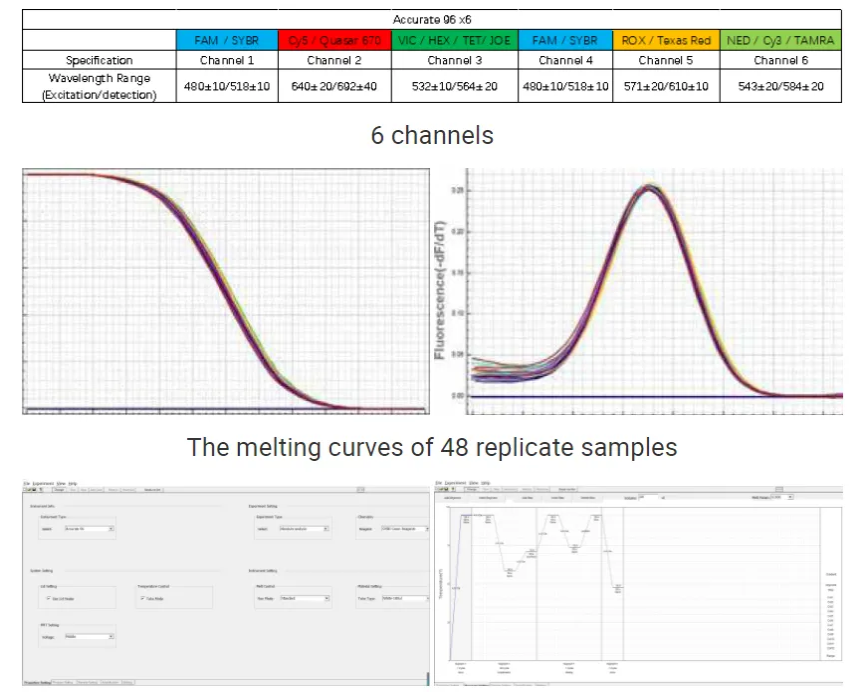

+ Up to 6 fluorescence detection channels allowing multiplex PCR.

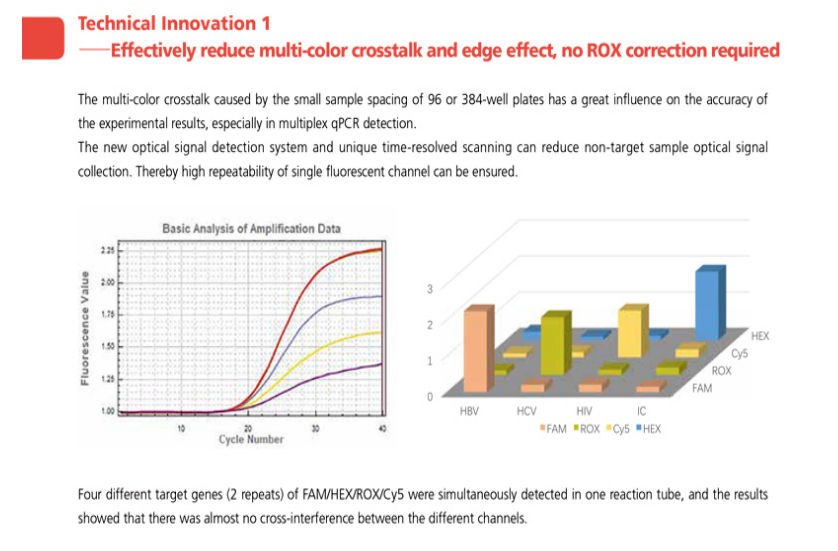

+ Effectively reduce multi-color crosstalk and edge effect, no ROX correction required.

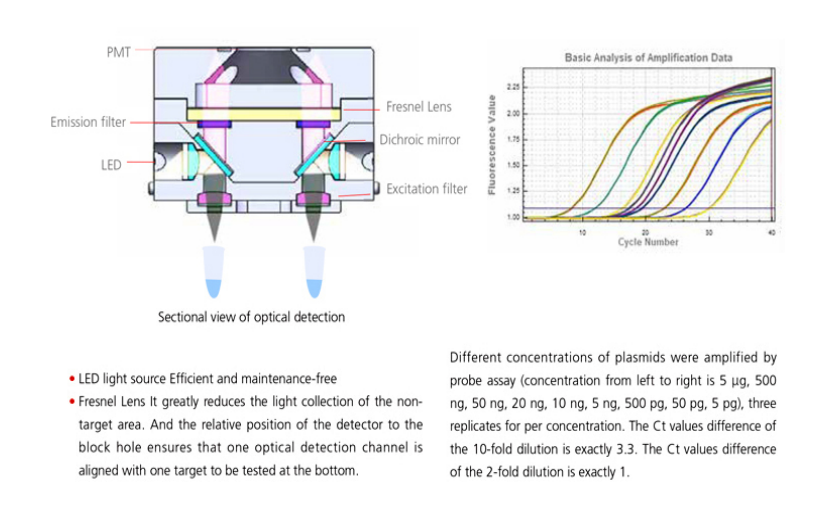

+ New optical scanning detection system

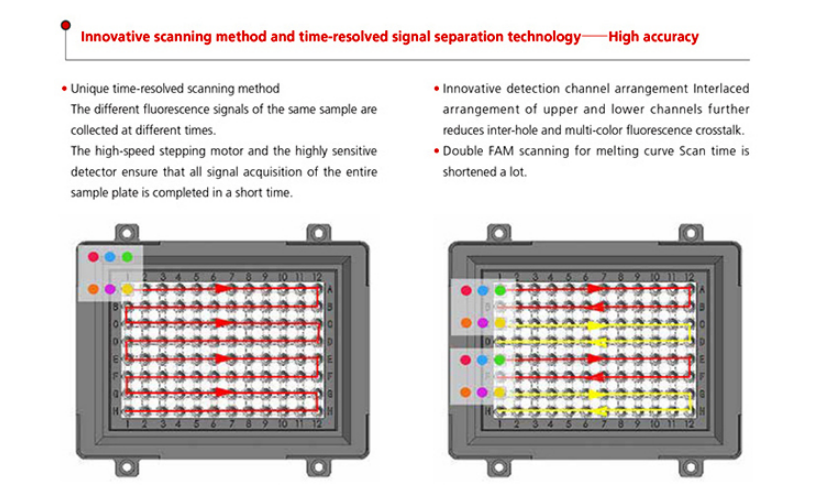

+ Innovative scanning method and time-resolved signal separation technology

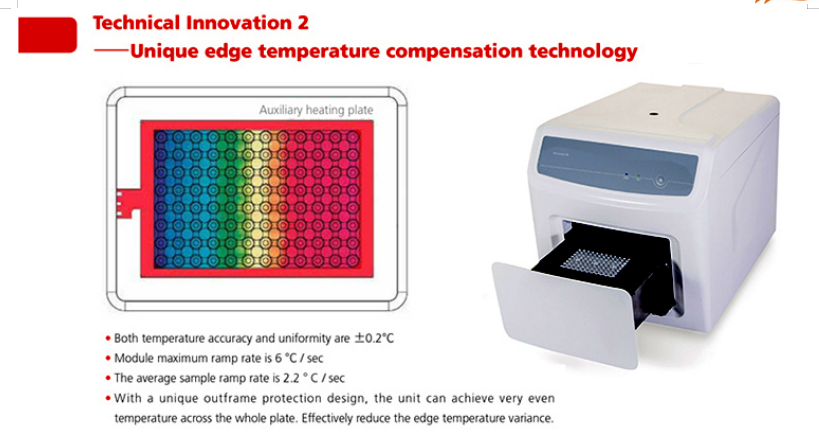

+ Unique edge temperature compensation technology
+ User-friendly software
Technical Specifications:
As a necessary choice for quantitative analysis of molecular biology, real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications.
Features:
+ Up to 6 fluorescence detection channels allowing multiplex PCR.
+ Effectively reduce multi-color crosstalk and edge effect, no ROX correction required.
+ New optical scanning detection system
+ Innovative scanning method and time-resolved signal separation technology
+ Unique edge temperature compensation technology
+ User-friendly software
Technical Specifications:
| Temperature control system | |
| Sample capacity | 96 |
| Reaction volume | 10-50 μl |
| Thermal cycle technology | Peltier |
| Max. Heating/Cooling rate | 6.0° C/s |
| Heating temperature range | 4 – 100 °C |
| Temperature accuracy | ± 0.2°C |
| Temperature uniformity | ±0.2℃ @60℃ , ±0.3℃ @95℃ |
| Temperature gradient setting range | 30–100°C |
| Temperature gradient difference setting range | 1 – 36°C |
| Detection system | |
| Excitation light source | 4/6 monochrome high efficiency LEDs |
| Detection device | PMT |
| Detection mode | Time-resolved signal separating technology |
| Excitation/detection wavelength range | 455-650nm/510-715nm |
| Fluorescent channels | 4/6 channels |
| Supported dye | FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ |
| Sensitivity | Single copy gene |
| Resolution | 1.33 folds copy number difference can be distinguished in single-plex qPCR |
| Dynamic range | 10 orders of magnitude copies |
Send Message
Related Products
Model NO. CYL-005-1 CYL-006-1

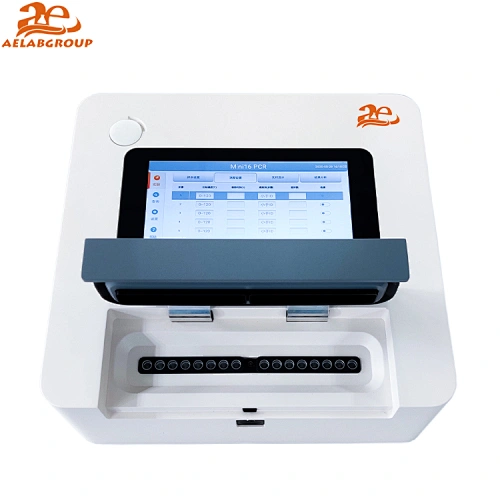

Model NO. Mini Real Time PCR
