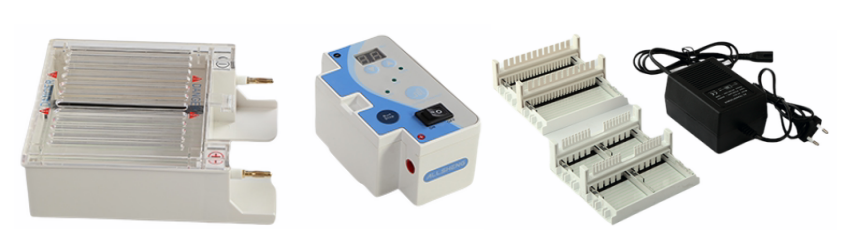

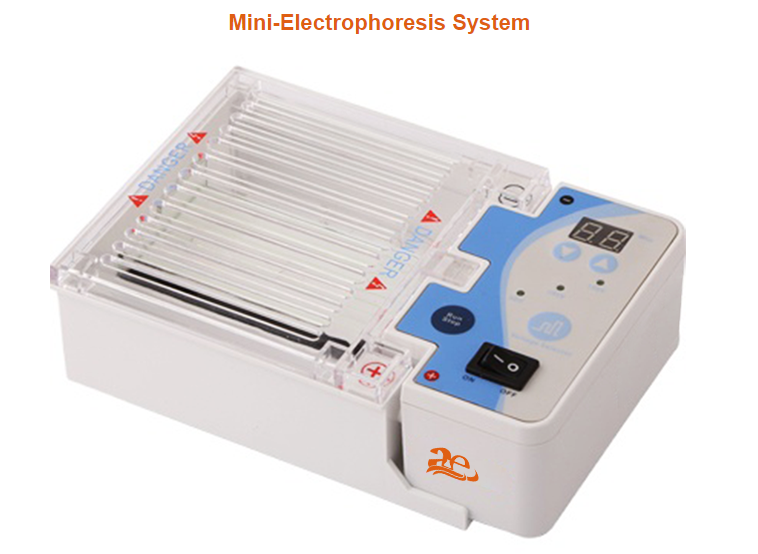

AELAB Mini-Electrophoresis System Mini-S1 , Mini-S2
AE- MiniS Electrophoresis System is specifically designed for DNA and RNA electrophoresis.
Voltages 35V/50V/100V, compact, lightweight and easy to operate are its features.
A magnetic sensor allows current to flow to the electrodes only when the lid is in place. If the lid is removed while the system is operating, it will be shut down immediately.
It's ideal for many applications, including Northern and Southern blotting, Cosmid library restriction analysis microsatellite analysis PCR fragment analysis, DNA fingerprinting and high-throughput analysis.
AE- MiniS Electrophoresis System is specifically designed for DNA and RNA electrophoresis.
Voltages 35V/50V/100V, compact, lightweight and easy to operate are its features.
A magnetic sensor allows current to flow to the electrodes only when the lid is in place. If the lid is removed while the system is operating, it will be shut down immediately.
It's ideal for many applications, including Northern and Southern blotting, Cosmid library restriction analysis microsatellite analysis PCR fragment analysis, DNA fingerprinting and high-throughput analysis.
Features:
+ Input Power: AC100~120V 50~60Hz or AC220~240V with transformer 50~60Hz
+ Output Power: DC35V/DC50V/DC100V
+ Bath Dimensions (WxDxH): 110x121x43mm
+ Volume of Bath: 230ml
+ Construction of Bath: PC+ABS with high temperature resistance
+ Max.Power:40W
+ Timer range:1min~99min
+ Overall Dimensions (WxDxH):190x130x60mm
Ordering Models:
Mini-S1: AC100~120V 50~60Hz
Mini-S2: AC220~240V with transformer 50~60Hz
Technical Specifications:
+ Input Power: AC100~120V 50~60Hz or AC220~240V with transformer 50~60Hz
+ Output Power: DC35V/DC50V/DC100V
+ Bath Dimensions (WxDxH): 110x121x43mm
+ Volume of Bath: 230ml
+ Construction of Bath: PC+ABS with high temperature resistance
+ Max.Power:40W
+ Timer range:1min~99min
+ Overall Dimensions (WxDxH):190x130x60mm
Ordering Models:
Mini-S1: AC100~120V 50~60Hz
Mini-S2: AC220~240V with transformer 50~60Hz
Technical Specifications:
| MODEL | Mini-S |
| Input Power | Mini-S1: AC100~120V 50~60Hz |
| Mini-S2: AC220~240V with transformer 50~60Hz | |
| Output Power | DC35V/DC50V/DC100V |
| Bath Dimensions (WxDxH) | 110x121x43mm |
| Volume of Bath | 230ml |
| Construction of Bath | PC+ABS with high temperature resistance |
| Max.Power | 40W |
| Timer | 1~99min |
| Dimensions(mm) | 190x130x60mm |

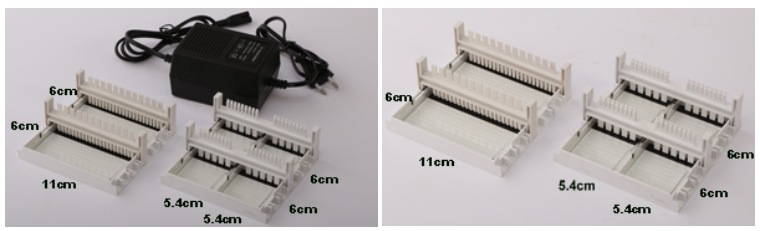

| Accessories | |
| Tooth wide (width x thickness x no.) | 3mmx1mmx22 |
| 5.6mmx1mmx12 | |
| 3mmx1mmx18 | |
| 5.6mmx1mmx10 | |
| Gel Dimension (WxD) | 126x126mm -- 1pcs |
| Gel Migration Board (WxD) | 110x60mm -- 2pcs |
| 54x60mm -- 4pcs | |
| Transformer for AC200~240V | AC220V (input) / AC110V (output) |
