Microwave Digestor

AELAB Microwave Sample Preparation Workstation TANK PRO TANK BASIC

Model NO.TANK PRO TANK BASIC

+ The TANK microwave digester has been adhering to the principle and concept of "safe experiement", "efficient and convenient operation" and "durable use" from R&D to production. It can be widely used in routine laboratories and also applied under extreme conditions.
+ TANK adopts advanced dual magnetron non-pulse frequency microwave heating technology, realizing the high power microwave heating & homogeneous heating;
+ TANK has more than 20 safety guarantee technologies to ensure that TANK has high level of safety performance and data accuracy; At the same time, TANK's highly intelligent man-machine dialogue operation system and wireless control module make the experiment process become efficient, convenient and humanized, and bring safe and comfortable experience to users.
+ 12-vessel High-throughput processing capacity, meeting the needs of all kinds of sample preparation;
+ Advanced multicore integrated optical fiber temperature control system, with precise temperature control and uniform digestion;

AELAB MDS-15 High-throughput Microwave Sample Preparation Workstation

Model NO.MDS-15

+ The quartz digestion vessel enables the digestion process to be visible.
+ Initiative wireless remote video monitoring system, together with quartz vessels, makes the reaction be seen clearly at a glance. Pictures and videos can be taken during the entire process;
+ 500 ml ultra-large digestion vessel meets the special requirements for the digestion of samples of up to 10 grams.
+ The drying rotor aides in the drying process of samples,
+ It is patented safety bolt design eliminates the need for explosion-proof membranes and other costly consumables.
+ The Aerospace composite fiber outer vessel ensures the highest level of vessel security.
+ Large 65L stainless steal chamber and dual magnetron structure, is designed for high energy and uniform microwave field.
+ With over 20 years of experience in the industry it is known asa innovation leader with numerous patents.

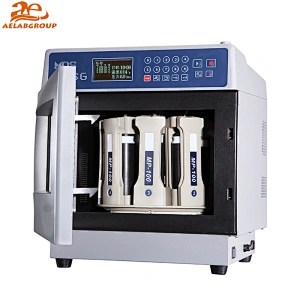

AELAB MDS-6G (SMART) Closed Microwave Digestion/Extraction System

Model NO.MDS-6G

+ MDS-6G microwave digestion/extraction/synthesis system (nickname: SMART), a subversion of tradition, is a market-oriented practical compact microwave digester made by us with its over 20 years' experience;
+ It highlights the company's three major ideas of product design and also meets users' needs in "safety", "durability" and "convenience of operation."
+ The outer vessel of SMART exclusively made by ultrastrength aerospace composite fiber is invincible in anti-explosion, and its performance indicators such as corrosion resistance, high temperature/impact/pressure resistance are far better than that of the widely used modified PEEK engineering plastics vessel (this material is fusible at high temperature, fragile at high pressure and explosive by chemical corrosion).
+ The compressive strength of aerospace composite fiber is up to 10000psi and temperature 500-600℃, fundamentally eliminating safety risks to operator in use.

AELAB Ultra High Throughput Closed Microwave Digestion/Extraction Workstation

Model NO.MASTER

+ More than 20 years of experience in microwave;
+ Leader in number of users nationally of 9000+ units;
+ 6-year supplier of Administration of Quality Supervision, Inspection and Quarantine of P.R.C;
+100 vessel throughput, NO.1 in the world;
+ 4 times BCEIA gold award of China Association for Instrumental Analysis;
+ Various choices of vessel configurations, throughput of: 16, 18, 40 and 100 vessels; volume of: 15ml, 30ml, 50ml, 70ml, 100ml, 200ml and 500ml;
+ Free lifetime warranty to the core components-magnetron of the Microwave Digestion System;

AELAB Jupiter Series High Throughput Closed Microwave Digestion/Extraction Workstation

Model NO.Jupiter Series

+ Satisfy the requirements of different samples' digestion / extraction processing;
+ Up to 12 vessels high-throughput processing capacity;
+ Exclusive patented multifunctional safety bolt design, instead of explosion-proof membrane and other consumables
+ Aerospace composite fiber outer vessel-the highest level of security measures;
+ Large-screen color software interface, clear and direct-viewing in operation, bright in appearance and smart in performance.
+Connected to and controlled by computer, achieving secure remote operation, and unlimited program storage database;
+ Small volume VS big chamber, which is advance in industrial design and provides perfect experience;
+ Free lifetime warranty to the core components - magnetron of the microwave Digestion System;
+ 20 years of industry experience with no life injury;
+ Won China’stop award-BCEIA GOLD four times and leads in the number of users nationally;

AELAB Microwave Digestion System AE-MD610 Series

Model NO.AE-MD610 Series

+ Up to 12 vessels to meet different digestion requirements.
+ Vertical Microwave design for even distribution of microwave.
+ Real time monitoring for both temperature and pressure of each vessel.
+ Contactless monitoring with no burst disk design saves consumable cost and maintenance cost.
+ Imported vessel material for both sample vessel and protection vessel ensures safety.
+ Touch screen with user-friendly interface for easy operation.
+ Imported CFRP with high strength ensures impact resistance.
+ Pre-installed international standard methods while user can also edit, save, modify and delete own method.
+ 316L stainless steel tank with teflon coating avoids erosion and ensures fast cooling.
+ Special magnetron design which carries out high microwave leakage standards.

AELAB Microwave Digestion System AE-MD700/650 AE-MD850/800

Model NO.AE-MD700/650 AE-MD850/800

+ Vent and Self-reseal digestion vessel: self-vent and reseal structure with patented law ensures that vessels will release pressure and instantly reseal when a sudden over-pressurization occurs.
This prevents waste of batch samples and solutions, and also avoids sample vessel damage.
+ Temperature-pressure monitoring/protection system: Advanced contactless temperature control technology which measures real temperature of solution in each digestion vessel. Meanwhile, it adopts multi-fiber to monitor pressure in a contactless way. This realizes isolation between temperature and pressure control system, avoids cross-contamination of all samples and also ensures temperature and pressure monitor and control for each and every vessel. All temperature and pressure data are displayed in real time during the microwave rum, allowing a visual check of digestion conditions. It prevents over-pressurization and over-heating
+ Large storage capacity: can edit and store 255 programs according to user's requirements and each method program can set 10 digestion steps. Users can set parameters (temperature, pressure, time, microwave power) according to their own requirements which provides convenient operation for users.
+ Multi safety protection functions: high strength double security door, temperature monitoring, high temperature prevention, pressure monitoring, high pressure prevention, instruments fault monitoring alert, innovative stopping running when opening door, instruments abnormal sound monitoring.
+ Power and power regulation mode: using variable frequency resonance or non-pulse (optional) continuous rotating mode to ensure highly efficient and even microwave throughput. Users can adjust it according to users' requirement between 0-3000W.

12 Microwave Digestor
