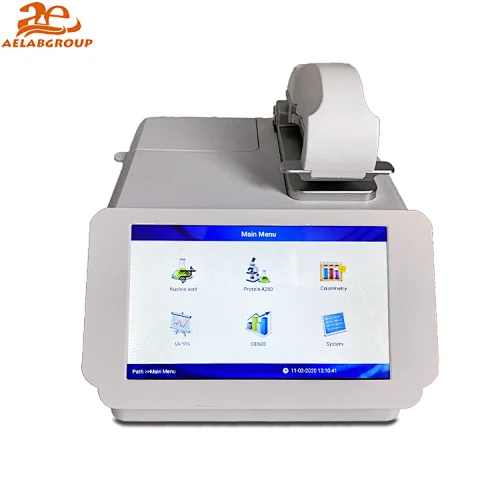

AELAB Micro Volume Spectrophotometer AE-NANO500
AELAB Micro Volume Spectrophotometer AE-NANO500
AELAB Micro Volume Spectrophotometer AE-NANO500
AELAB Micro Volume Spectrophotometer AE-NANO500
AELAB Micro Volume Spectrophotometer AE-NANO500

AELAB Micro Volume Spectrophotometer AE-NANO500

Model NO.
AE-NANO500
+ User-friendly software, easy to use: It is easy to use, free software updates are available
+ Micro-volumes measuring : Only require 0.5~2μl sample to accurate determinate of nucleic acids, proteins
+ Fast and easy measurements :Turn on and instantly measure without lamp warm up time; Easy measurement within 8 sec
+ Long life’s Xenon flash lamp :Xenon flash lamp, 10 flashes, up to 10 years, no cells or cuvettes, no dilutions and expensive consumables
+ No consumables required:Direct microvolume measurements from 1–2μL of sample. Eliminates the need for expensive accessories
+ No computer required and with touch screen (only AE-NANO300) :AE-NANO300 is equipped with Android system operation
+ The Nano-100 / AE-NANO300 are full range of wavelength (200-800nm) detection ability
Quantity:
AELAB Micro Volume Spectrophotometer AE-NANO500
+ User-friendly software, easy to use: It is easy to use, free software updates are available
+ Micro-volumes measuring : Only require 0.5~2μl sample to accurate determinate of nucleic acids, proteins
+ Fast and easy measurements :Turn on and instantly measure without lamp warm up time; Easy measurement within 8 sec
+ Long life’s Xenon flash lamp :Xenon flash lamp, 10 flashes, up to 10 years, no cells or cuvettes, no dilutions and expensive consumables
+ No consumables required:Direct microvolume measurements from 1–2μL of sample. Eliminates the need for expensive accessories
+ No computer required and with touch screen (only AE-NANO300) :AE-NANO300 is equipped with Android system operation
+ The Nano-100 / AE-NANO300 are full range of wavelength (200-800nm) detection ability


Features  :
1.AE-NANO500 is designed base on AE-NANO300:
   A.To added the 0.05mm optical path length, and the highest detection concentration up to 15000ng/ul
   B.To added the Fluorescence detection function, which can be used for accurate quantification of extremely low concentration nucleic acid with a lower limit of 0.5pg/ul
   C.Automatic detect after put down the arm
2. The patented lifting motor structure makes the liquid column stretch more gentle, perventing the liquid column from breaking due to structural problems. In addition, the structure can effectively solve the instability of reading caused by high concentration sample, especially suitable for precise quantification of protein samples

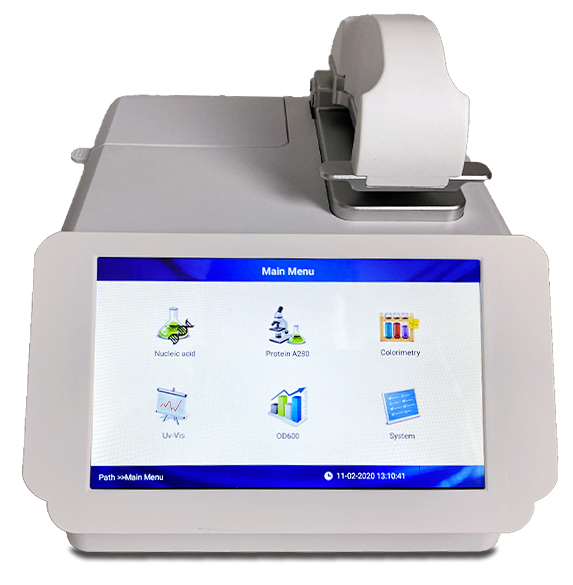

3. Android system, 7-inch capacitive touch screen, intuitive APP software, simple and easy to use
4. To detect the concentration of bacteria and microorganism are more convenient with the OD600 function
5. With a 2048-Element linear CCD array detector, the detection and display can be completed in 6s
6. Equipped with HD touch screen, no need to connect computer.
7. Longer service life of optical component, intelligent identification of user usage. The light source will auto off after 5 minutes without any operation to extend service life.
8. The result can be printed by a built-in printer or exported via USB for data analysis and storage.

TechnicalSpecification:

ModelAE-NANO100AE-NANO300AE-NANO400AAE-NANO500
Wavelength Range200-800nm200-800nm260nm, 280nm200-800nm
Minimum Sample Size0.5-2.0uL0.5-2.0uL1-2.0uL0.5-2.0uL
Path Length0.2mm0.2mm0.5mm0.05mm
1.0mm1.0mm0.3mm
1.0mm
Light SourceXenon flash lampXenon flash lampUVLEDXenon flash lamp
Detector Type3864-Linear CCD array2048-Linear CCD arrayUV-sillion photocell2048-Linear CCD array
Wavelength Accuracy1nm1nm1nm
Spectral Resolution3nm (FWHM at Hg546 nm)3nm(FWHM at Hg546nm)
 546nm Hg546 HGHGHHHhGhghhgHg546 Hg546nm)Hg546om]
3nm (FWHM at Hg546nm
Absorbance Precision0.003Abs0.003Abs0.005Abs0.003Abs
Absorbance Accuracy1%(7.332Abs at 260nm)  1% (7.332Abs at 260nm)  1% (7.332Abs at 260nm)  1%(7.332Abs at 260nm)
Absorbance Range0.02 - 90A0.02 - 100A0.02 - 80A0.02 - 100A
Detects Nucleic Acid up to2-4500ng/ul (dsDNA)2-5000ng/ul (dsDNA)10-4000ng/ul (dsDNA)2-15000ng/ul (dsDNA)
Measurement Time<8S<5S<8S<6S
Data OutputConnect PCUSBUSBUSB
Operating Voltage24V DC24V DC24V DC24V DC
Operating Power20W25W25W25W
Standby Power5W5W5W5W
Packing Size (W x D x H)500 x 495 x 310mm500 x 495 x 310mm500 x 495 x 310mm500 x 495 x 310mm
Gross Weight9.2kg9.2kg9.2kg9.2kg
Software CompatibilityWinXP, Win7. Win8Android SystemAndroid SystemAndroid System
Fluorescent detection
SensitivitydsDNA: 0.5pg/ul
Linear Dynamic RangeR2>0.995
Repeatability<1.5%
OD600nm Measurement
Light SourceLEDLEDLED
Wavelength Range600±8nm600±8nm600±8nm
Absorbance Range0-4A0-4ACMA
