Model NO.
AE-NANO400A
+ User-friendly software, easy to use: It is easy to use, free software updates are available
+ Micro-volumes measuring : Only require 0.5~2μl sample to accurate determinate of nucleic acids, proteins
+ Fast and easy measurements :Turn on and instantly measure without lamp warm up time; Easy measurement within 8 sec
+ Long life’s Xenon flash lamp :Xenon flash lamp, 10 flashes, up to 10 years, no cells or cuvettes, no dilutions and expensive consumables
+ No consumables required:Direct microvolume measurements from 1–2μL of sample. Eliminates the need for expensive accessories
+ No computer required and with touch screen (only AE-NANO300) :AE-NANO300 is equipped with Android system operation
+ The Nano-100 / AE-NANO300 are full range of wavelength (200-800nm) detection ability
Quantity:
AELAB Micro Volume Spectrophotometer AE-NANO400A
+ User-friendly software, easy to use: It is easy to use, free software updates are available
+ Micro-volumes measuring : Only require 0.5~2μl sample to accurate determinate of nucleic acids, proteins
+ Fast and easy measurements :Turn on and instantly measure without lamp warm up time; Easy measurement within 8 sec
+ Long life’s Xenon flash lamp :Xenon flash lamp, 10 flashes, up to 10 years, no cells or cuvettes, no dilutions and expensive consumables
+ No consumables required:Direct microvolume measurements from 1–2μL of sample. Eliminates the need for expensive accessories
+ No computer required and with touch screen (only AE-NANO300) :AE-NANO300 is equipped with Android system operation
+ The Nano-100 / AE-NANO300 are full range of wavelength (200-800nm) detection ability


Features  :
1.This is a basic micro-volume UV spectrophotometer designed (only 3 types of wavelength: 260nm, 280nm and 365nm) for the measurement of nucleic acids and proteins.

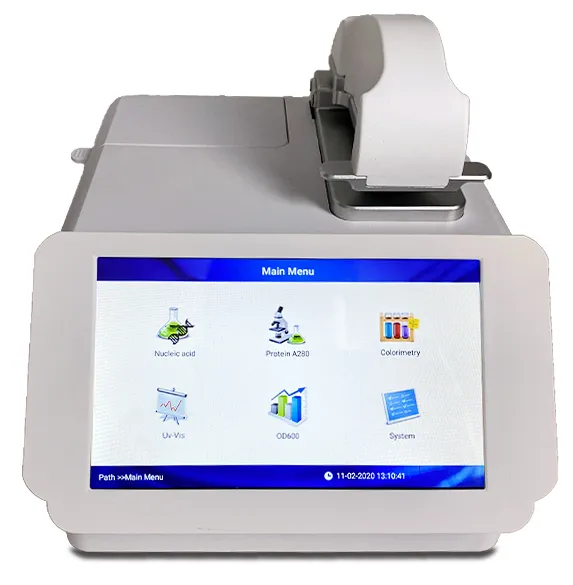

2.Android system operation, 7 inch touch screen no computer, APP software, simple interface, easy to use.
3.To detect the concentration of bacteria and microorganism are more convenient with the OD600 function.
4.Measure nucleic acid concentration at 260nm and purity using the ratio 260/280.
5.Measure purified protein concentration at 280nm.
6.The data can be printed with built-in printer, the data can output via SD-RAM and USB memory.

TechnicalSpecification:

ModelAE-NANO100AE-NANO300AE-NANO400AAE-NANO500
Wavelength Range200-800nm200-800nm260nm, 280nm200-800nm
Minimum Sample Size0.5-2.0uL0.5-2.0uL1-2.0uL0.5-2.0uL
Path Length0.2mm0.2mm0.5mm0.05mm
1.0mm1.0mm0.3mm
1.0mm
Light SourceXenon flash lampXenon flash lampUVLEDXenon flash lamp
Detector Type3864-Linear CCD array2048-Linear CCD arrayUV-sillion photocell2048-Linear CCD array
Wavelength Accuracy1nm1nm1nm
Spectral Resolution3nm (FWHM at Hg546 nm)3nm(FWHM at Hg546nm)
 546nm Hg546 HGHGHHHhGhghhgHg546 Hg546nm)Hg546om]
3nm (FWHM at Hg546nm
Absorbance Precision0.003Abs0.003Abs0.005Abs0.003Abs
Absorbance Accuracy1%(7.332Abs at 260nm)  1% (7.332Abs at 260nm)  1% (7.332Abs at 260nm)  1%(7.332Abs at 260nm)
Absorbance Range0.02 - 90A0.02 - 100A0.02 - 80A0.02 - 100A
Detects Nucleic Acid up to2-4500ng/ul (dsDNA)2-5000ng/ul (dsDNA)10-4000ng/ul (dsDNA)2-15000ng/ul (dsDNA)
Measurement Time<8S<5S<8S<6S
Data OutputConnect PCUSBUSBUSB
Operating Voltage24V DC24V DC24V DC24V DC
Operating Power20W25W25W25W
Standby Power5W5W5W5W
Packing Size (W x D x H)500 x 495 x 310mm500 x 495 x 310mm500 x 495 x 310mm500 x 495 x 310mm
Gross Weight9.2kg9.2kg9.2kg9.2kg
Software CompatibilityWinXP, Win7. Win8Android SystemAndroid SystemAndroid System
Fluorescent detection
SensitivitydsDNA: 0.5pg/ul
Linear Dynamic RangeR2>0.995
Repeatability<1.5%
OD600nm Measurement
Light SourceLEDLEDLED
Wavelength Range600±8nm600±8nm600±8nm
Absorbance Range0-4A0-4ACMA
