AELAB Melting Point Device DMP-800

Model NO.
DMP-800
Minimum order quantity:
1
AELAB melting point device is widely using in chemical industry and medicine. It is a necessary instrument for the production of food, drugs, spices, dyes and other organic crystal substances.
Quantity:

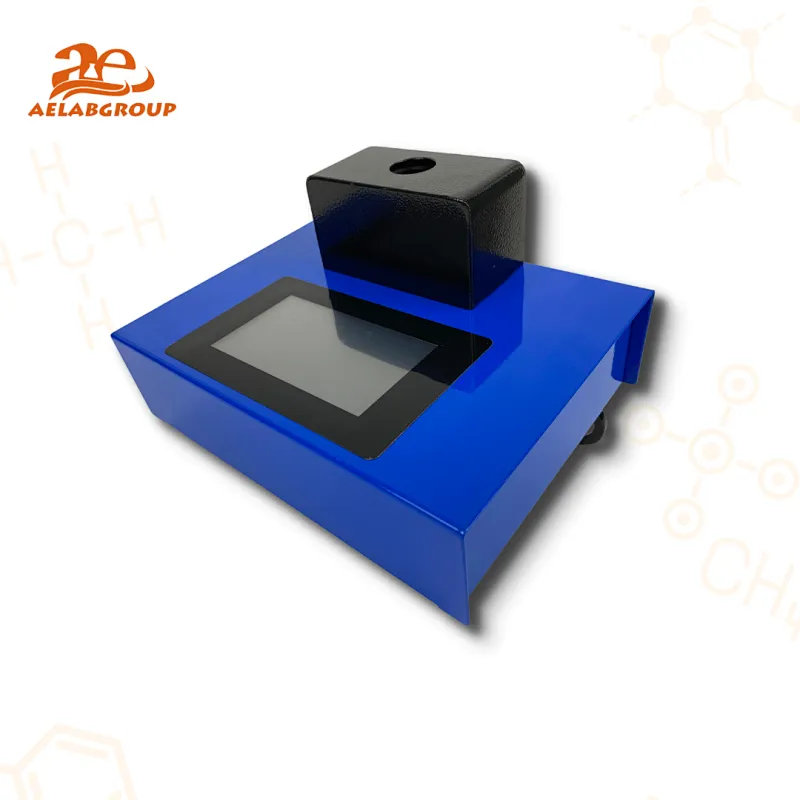

AELAB Colorful Touch Screen Melting Point Device DMP-800 (Built-in cooling fan)
Melting point device is widely using in chemical industry and medicine. It is a necessary instrument for the production of food, drugs, spices, dyes and other organic crystal substances.




Application fields:
+ Pharmaceutical
+ Medical Industries
+ Drug Testing



Features:

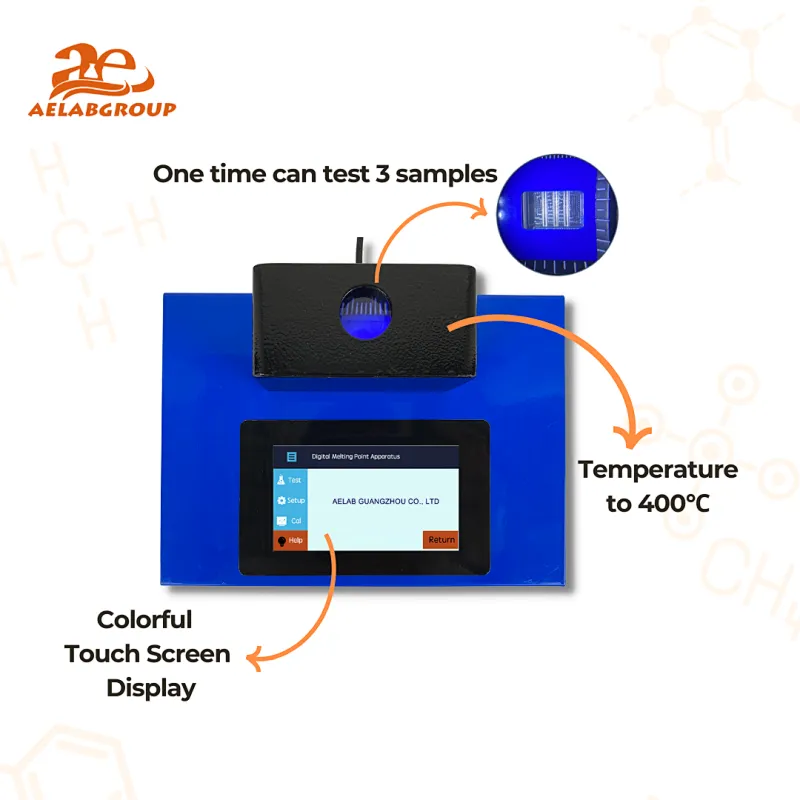

+ Colorful Touch Screen Display.
+ Increase Temperature can easy setting from 0.1 to 10℃/min.
+ One time can test 3 samples. Temperature can reach to 400℃.
+ High resolution microscope lenses can observe sample clearly.
+ Built-in cooling fan can easy come down temperature and test next samples.
+ PID control temperature, fully closed design of furnace body to avoid any empyrosis for the user.

Technical Specifications:

ModelDMP-800
Temperature RangeRoom Temperature to 400℃
Cooling FunctionBuilt-incooling fan
Resolution0.1℃
Temperature Increase Speed0.1℃-10℃ (100temperature point infinitely adjustable)
Temperature Control MethodPID control temperature,
fully closed design of furnace body
Accuracy±0.4℃（<250℃）,±0.7℃（>250℃）
RepeatabilityWhen0.1℃/Min,repeatability±0.3℃
DisplayFTF High Solution Color Touch Screen
OutputRS232 interface
Sample Tube external diameter φ1.6mm,internal diameter :φ1.2mm
Voltage100V-240V  50HZ-60HZ
Power100W
Size250mm*250mm*150mm
Weight1.2kg

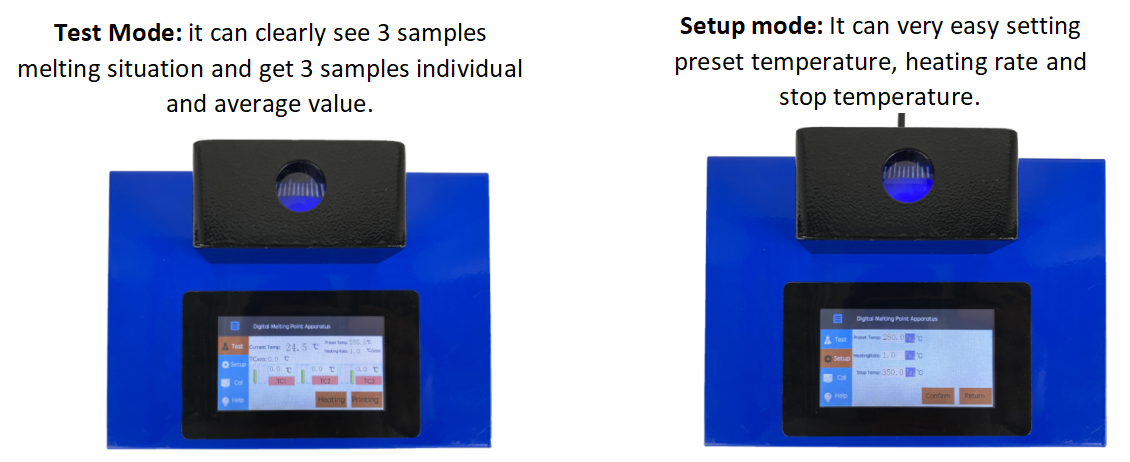

Display Detail:







#melting point device
#melting point measuring device
#dmp-800 dmp-600


  • AELAB Melting Point Device DMP-800 DMP-600.pdf：Downloads
  • AELAB Melting Point DMP-800 Brochure.pdf：Downloads
