Model NO.
LC-100
+ Pumping system: Isocratic system and Binary Gradient system.
+ Different detectors available: UV, ELSD, FLD, RID.
+ UV Detector for routine analysis/ RID for universal detection in isocratic analysis, especially necessary in GPC system.
+ Superior high-pressure pump achieves accurate solvent delivery with high-precision and low-fluctuation.
+ Advanced and innovative design modules provide high reliability and accuracy for long time operation.
+ The pump works in-parallel and ensures accuracy and duration.
+ Electronic signature function.
Quantity:

High Performance Liquid Chromatography LC1620A

Features:
+ Pumping system: Isocratic system and Binary Gradient system.
+ Different detectors available: UV, ELSD, FLD, RID.
+ UV Detector for routine analysis/ RID for universal detection in isocratic analysis, especially necessary in GPC system.
+ Superior high-pressure pump achieves accurate solvent delivery with high-precision and low-fluctuation.
+ Advanced and innovative design modules provide high reliability and accuracy for long time operation.
+ The pump works in-parallel and ensures accuracy and duration.
+ Electronic signature function.

Technical Specification :

ModelLC1620A
Isocratic systemBinary Gradient system

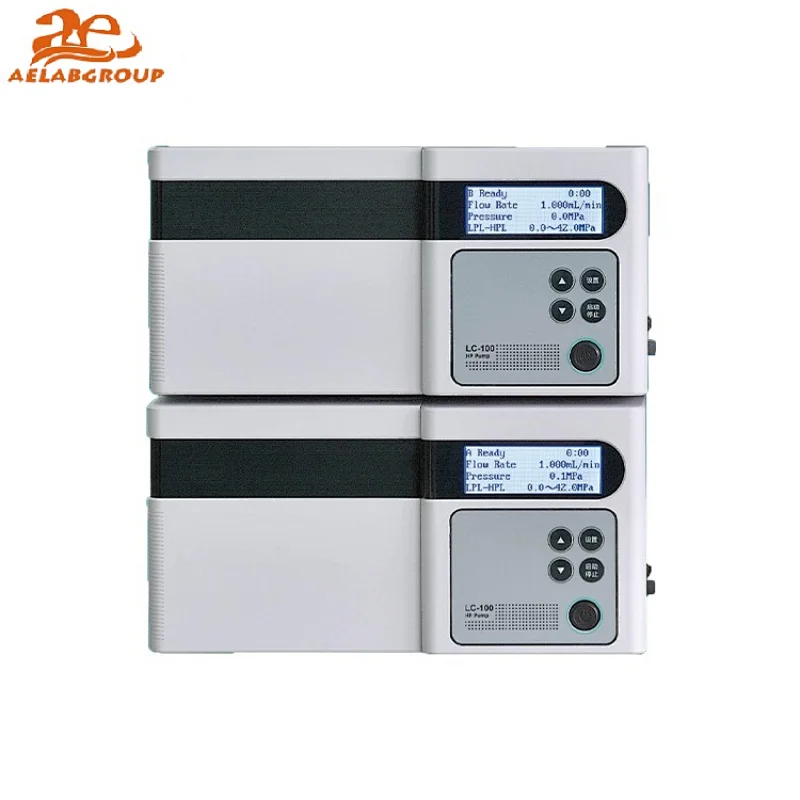

LC1620A Pump
Specifications:
Delivery systemDual-plunger in series, Float plunger design,
Single stroke discharged fluid volume is 30 ul
Flow rate range0.001-9.999mL/min  Increment: 0.001ml/min

Flow rate accuracy≤±0.5% or 10 µL/min
(1mL/min, water, room temperature)
Flow rate precisionRSD≤0.1%
(1mL/min, water, room temperature)
Pressure fluctuation≤ 0.5%
Pressure range≤ 42 Mpa for 316L pump head
 ≤ 30 Mpa for PEEK pump head
Pipeline connection1/16” standard pipeline connection
Display parametersOLED graphic display
ControlInstrument panel control or computer anti-control
Power supply100240VAC, power: 75W
LC1620A

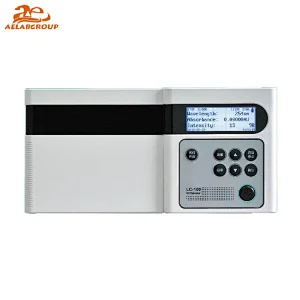

UV Detector
Specifications:
LampDeuterium or halogen lamp selectable
Detection systemSingle or dual-wavelength mode selectable
Wavelength range190-700nm  Increment: 1nm
Wavelength accuracy1nm
Wavelength precision±0.1nm
Volume of flow cell10μl
Detect range0-2Au
Baseline noise ±0.5×10-5 AU
Baseline drift 2×10-4 AU
Detection Limit4×10-9 g/ml(Naphthalene/methyl alcohol solvent)
Pipeline connection1/16” standard pipeline connection
Display parametersOLED graphic display
ControlInstrument panel control or computer anti-control
Power supply100240VAC, power: 80W
