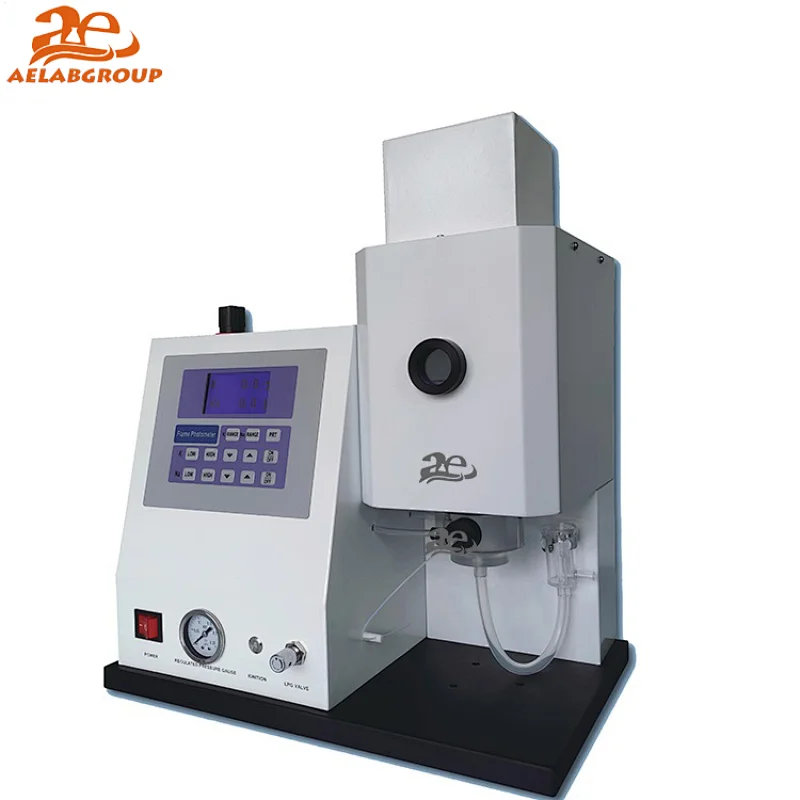

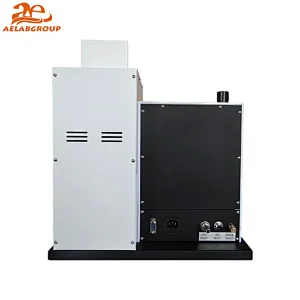

AELAB Flame Photometer AE-FP8201-A AE-FP8201-B

Model NO.
AE-FP8201A AE-FP8201-B
AELAB Flame Photomter used for analyzing & measuring the content & concentration of elements " K, Na " .
Quantity:

AELAB Flame Photometer AE-FP8201-A AE-FP8201-B

AELAB Flame Photometer is used for analyzing & measuring the content & concentration of elements  K, Na . It can be widely applied to agriculture (soil, fertilizer, and tobacco), industry (cement, glass, ceramics, mineral or ore powder, fireproof material), food (wine, water), laboratory, clinical experiments and pathology research (serum, urine, and plasma), etc.

Application fields:

+Bevege
+Enviromental

+Chemical
+Cement Industries
+Food
+Pharmecutical


Features:
+ With K, Na two filters, which can detect two kinds of elements.
+ LCD display with numeric keypad.
+ With auto correlation coefficient calculating function.
+ With ore-select function for flame size.
+ A flame-out protection device.
+ with single point calibration function.
+ Calibration curve can be saved.
+ With RS232 interface, can connect with external printer.
+ with a mist separator.
+ Easy adjustable Relief valve, direct view of pressure gauge.
+ LPG Burning Gas.


Technical Specifications:
ModelAE-FP8201-AAE-FP8201-B
DisplayLCD display
RangeK: 0-100ppm, Na: 0-160ppm
StabilityThe biggest change in the relative volume in 15s: ≤3%
Linear  ErrorK: 0.2ppm Na: 0.5ppm
Min.  Detection limitK: 0.1ppm Na: 0.1ppm
Curve calibrationStraight-line method, Polygon method; 2-points calibrate.Straight-line method, Polygon method; 1-10 points calibrate.
LinearityBetter than the best results of the intermediate value of 2% (single-point CAL)

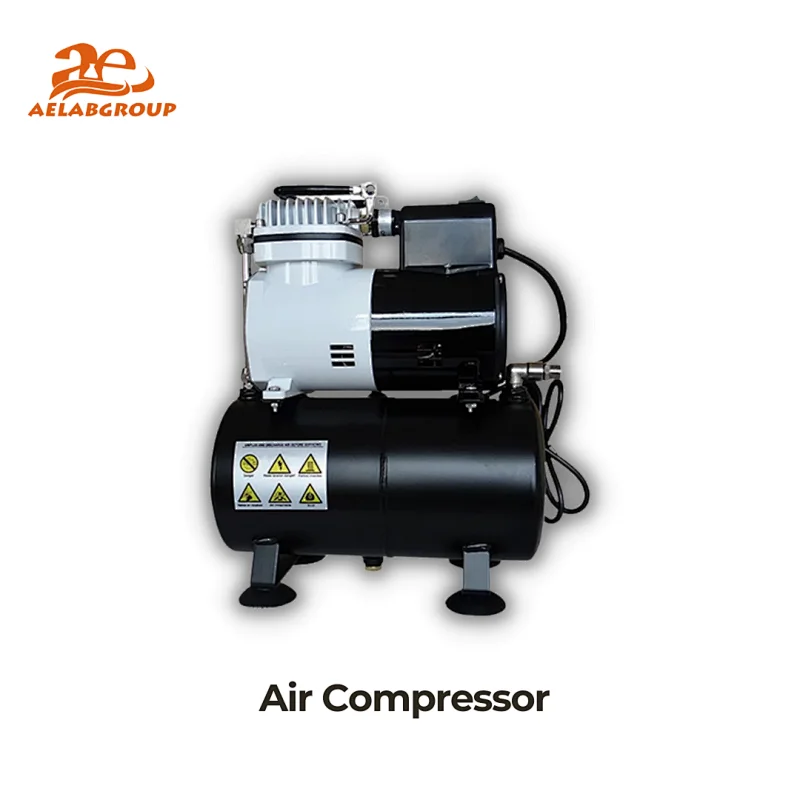

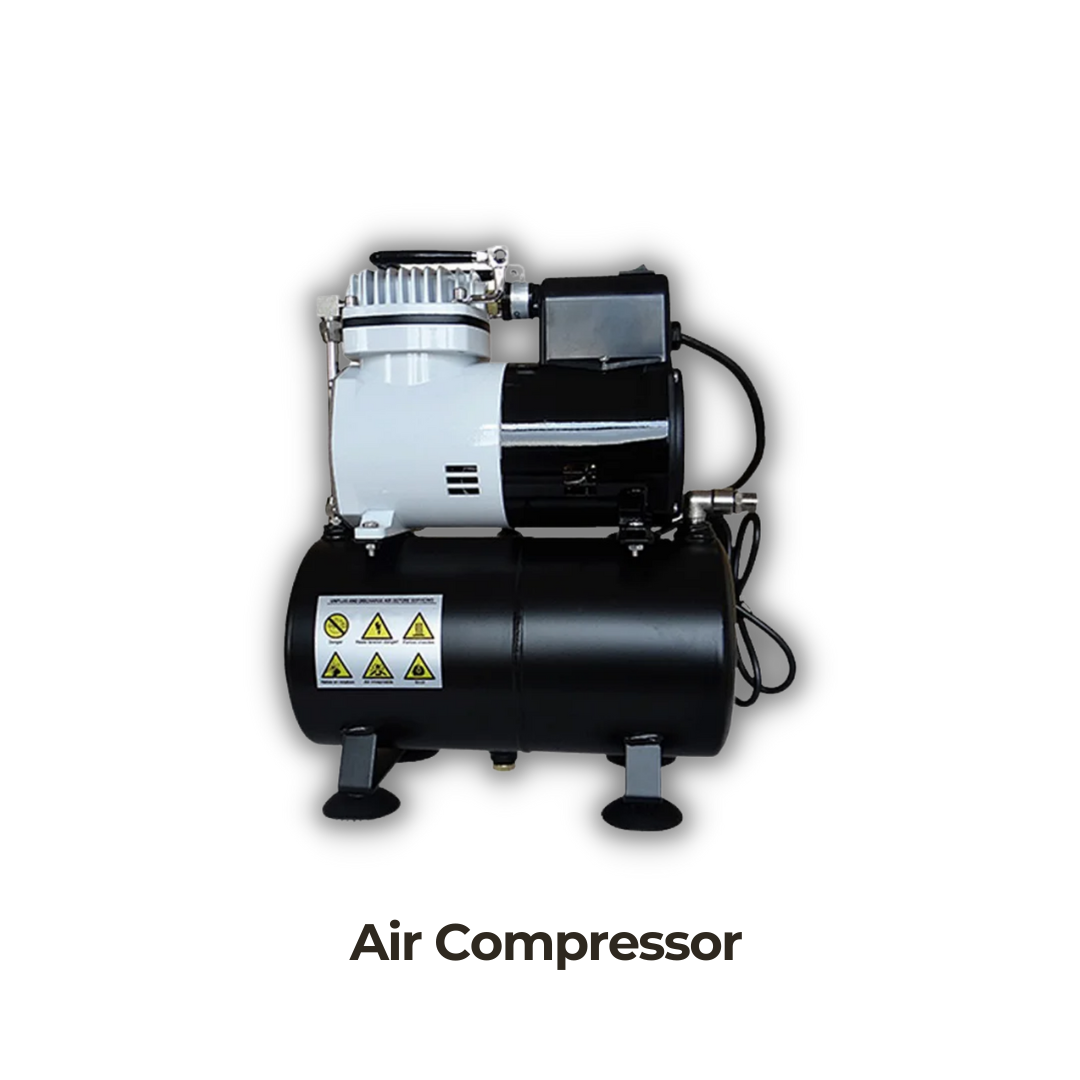

Standand AccessoryAir Compressor

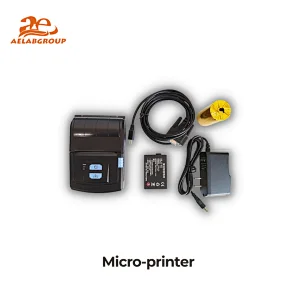

Optional AccessoryMicro-printer

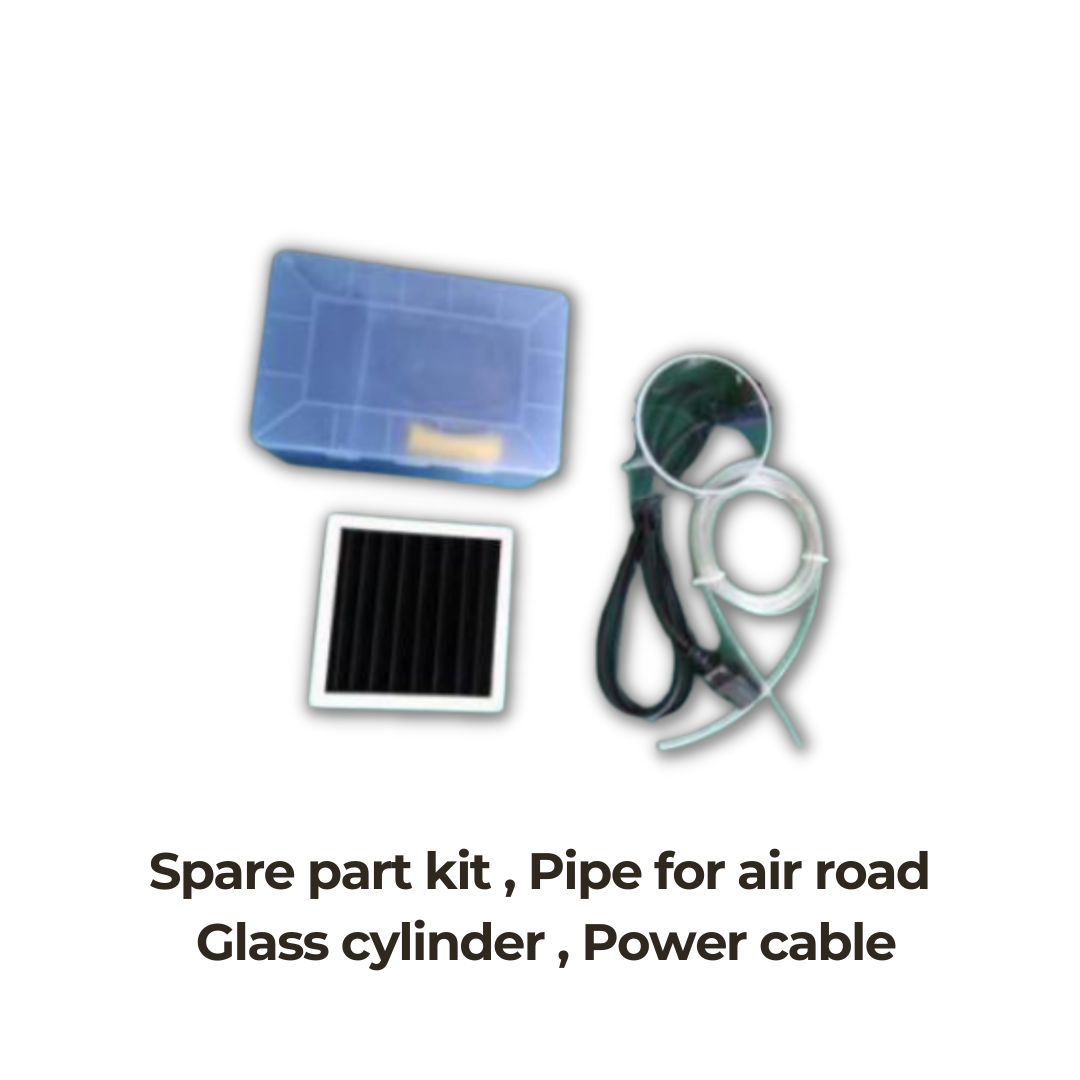

 Standard Accessories:
Operating manual  1pc
Air compressor 1unit
PU pipe for air road 2.5m
Silicone tube (spare) 0.6m
Funnel parts 1pc
Glass cylinder 1pc
Capillary 1pc
Fuse 2pcs
Power cable 1pc
Micro-printer 1set (optional)



Machine Details:
