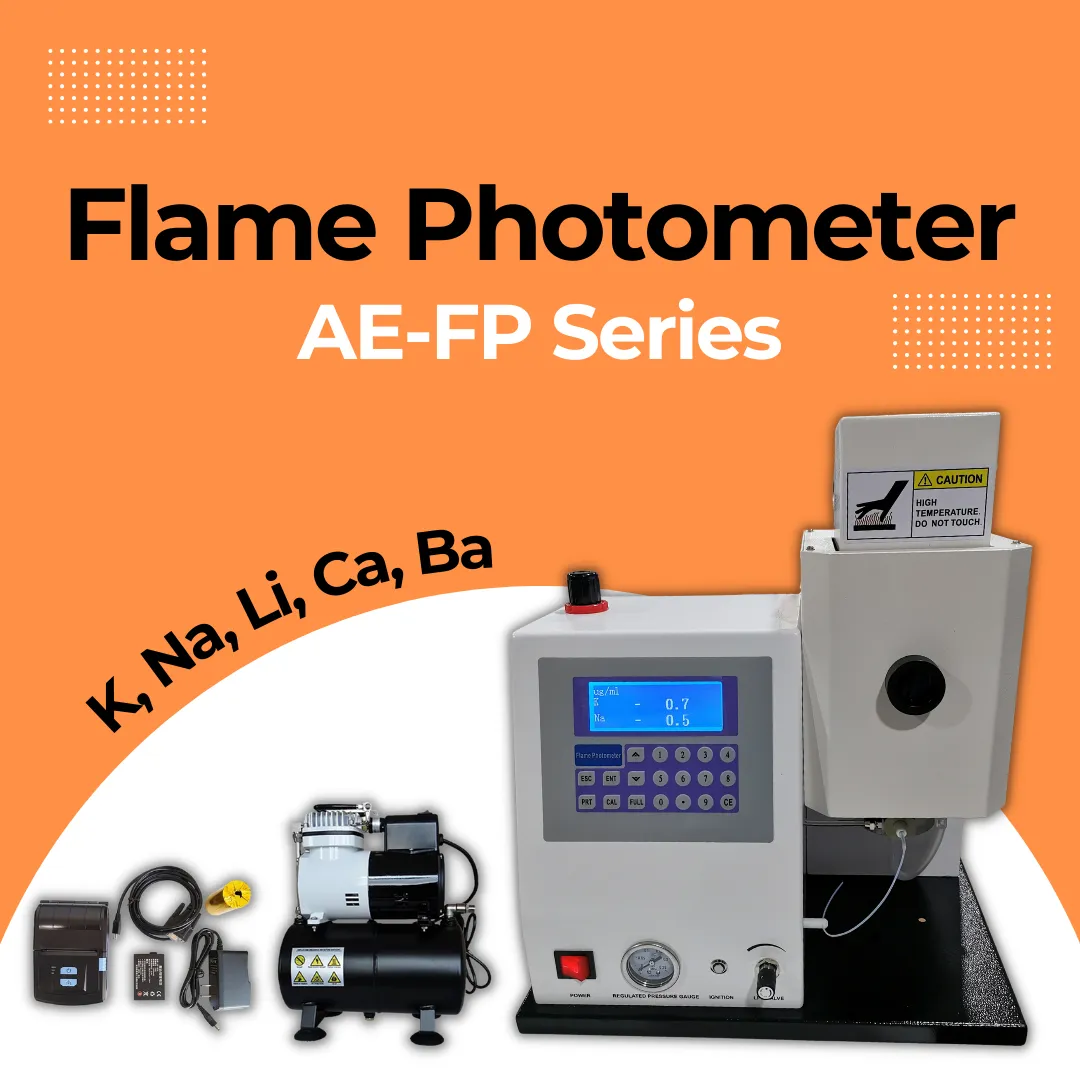

AELAB Flame Photometer AE-FP8201,AE-FP8301,AE-FP8401 AE-FP8501

Model NO.: AE-FP8201, AE-FP8301, AE-FP8401, AE-FP8501
Minimum order quantity:: 1

AELAB Flame Photomter used for analyzing & measuring the content & concentration of elements " K, Na, Li, Ca, Ba " .

Quantity:

Product Description
Brochure

AELAB Flame Photometer AE-FP8201-AE-FP8301-AE-FP8401-AE-FP8501

AELAB Flame Photometer is used for analyzing & measuring the content & concentration of elements “ K, Na, Li, Ca, Ba “. It can be widely applied to agriculture (soil, fertilizer, and tobacco), industry (cement, glass, ceramics, mineral or ore powder, fireproof material), food (wine, water), laboratory, clinical experiments and pathology research (serum, urine, and plasma), etc.

Application fields:

+Bevege
+Enviromental
+Chemical
+Cement Industries
+Food
+Pharmecutical

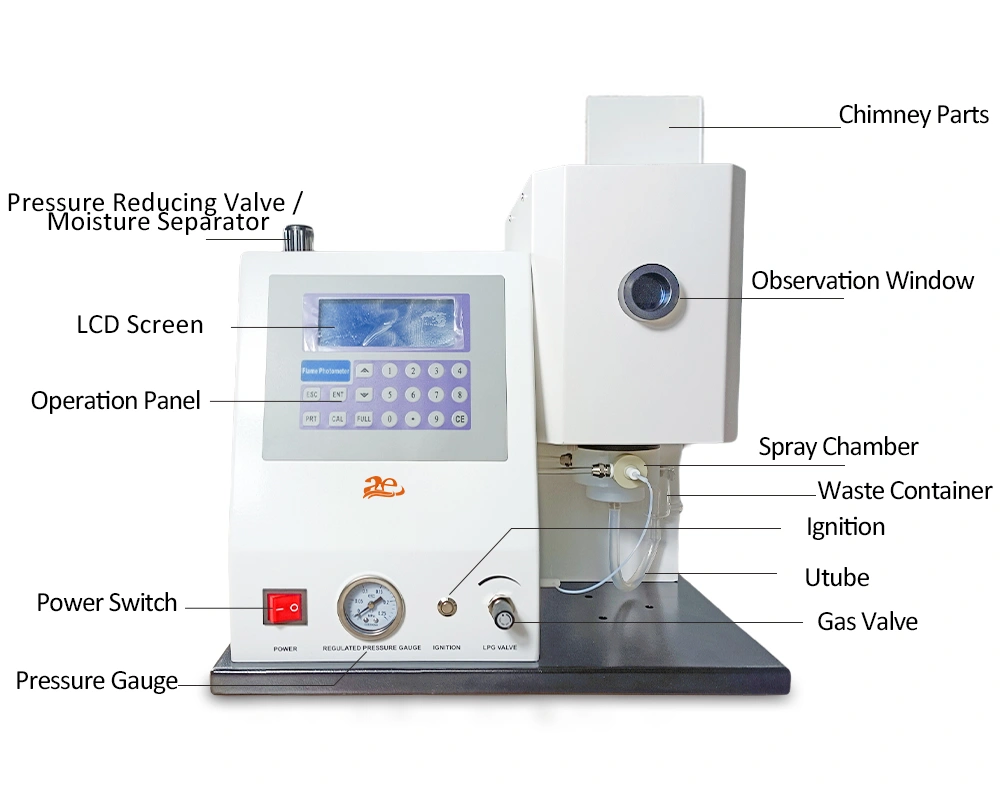

Features:
+ With K, Na, Li, Ca, Ba five filters, which can detect three kinds of elements.

+ LCD/Touch Screen display, touch panel with numeric keypad.

+ With auto correlation coefficient calculating function.
+ With ore-select function for flame size.

+ A flame-out protection device.

+ with single point calibration function.

+ Calibration curve can be saved.

+ With RS232 interface, can connect with external printer.

+ with a mist separator.

+ Easy adjustable Relief valve, direct view of pressure gauge.

+ LPG Burning Gas.

Model Selection:

2 Elements		3 Elements		4 Elements
Model	Elements	Model	Elements	Model	Elements
AE-FP8201	K, NA	AE-FP8301	K, NA,LI	AE-FP8401	K, NA,LI,CA
AE-FP8202	K, LI	AE-FP8302	K, NA, CA	AE-FP8402	K, NA, LI, BA
AE-FP8203	K, BA	AE-FP8303	K, NA, BA	AE-FP8403	NA,LI,CA,BA
AE-FP8204	K, CA	AE-FP8204	NA,LI,CA	5 Elements
AE-FP8205	NA,LI	AE-FP8205	NA,LI,BA	Model	Elements
AE-FP8206	NA,CA	AE-FP8206	LI, CA, BA.	AE-FP8501	K, NA,LI, CA,BA
AE-FP8207	NA,BA
AE-FP8208	LI,CA
AE-FP8209	LI,BA
AE-FP8210	CA,BA

Technical Specifications:

Measurement Range	K: 0-100ppm, Na: 0-160ppm, Li: 0-100ppm, Ca: 0-1000ppm, Ba: 0-3000ppm
Display	LCD Display, display show the concentration value. Display range: 0.000~999.9
Elements Dispaly Channels	Max. 3 channels
Display Range (ug/ml)	Potassium:0-100,sodium:0-160,lithium:0-100,calcium:0-1000,barium:0-3000
Response Time	<8 seconds
Minimum Suction Volume	＜6mL∕min
Repeatability	Repeat 7 consecutive independent measurements on the same standard solution ≤ 3%
Stability	The biggest change in the relative volume in 15s: ≤3%
Linear Error	K:0.2ppm, Na:0.5ppm, Li:0.1ppm, Ca:2ppm, Ba:8ppm.
Min. Detection Limit	K:0.1ppm, Na:0.1ppm, Li:0.1ppm, Ca:2ppm, Ba:8ppm.
Curve Calibration	Straight-line method; Polygon method; Quadratic fit.
Linearity	Better than the best results of the intermediate value of 2% (single-point CAL)
Standard Accessories	Air-compress &Micro-printer for all models
Optional Accessories	PC Software
Packing Size	74x40x55 cm (carton box)
Gross Weight	27 kg (carton box)

Model	AE-FP8201	AE-FP8301	AE-FP8401	AE-FP8501
Display Range (ug/ml)	Potassium：0-100，sodium：0-100，lithium：0-100，calcium：0-1000，barium：0-3000
Detection Limit (mmol/L)	Potassium：≤0.004，sodium：≤0.008，lithium：≤0.015，calcium：≤0.050，barium ：≤0.058
Linearity error (mmol/L)	Potassium：≤0.005，sodium：≤0.03，lithium：≤0.02，calcium：≤0.07，barium：≤0.07
Response Time	<8 seconds
Minimum Suction Volume	＜6mL∕min
Repeatability	Repeat 7 consecutive independent measurements on the same standard solution ≤ 3%
Number of Channels	2	3	4	5

Standard Accessories:
Operating manual 1pc
Air compressor 1unit
PU pipe for air road 2.5m
Silicone tube (spare) 0.6m
Funnel parts 1pc
Glass cylinder 1pc
Capillary 1pc
Fuse 2pcs
Power cable 1pc
Micro-printer 1set
(AE-FP8201-A/B not include)
