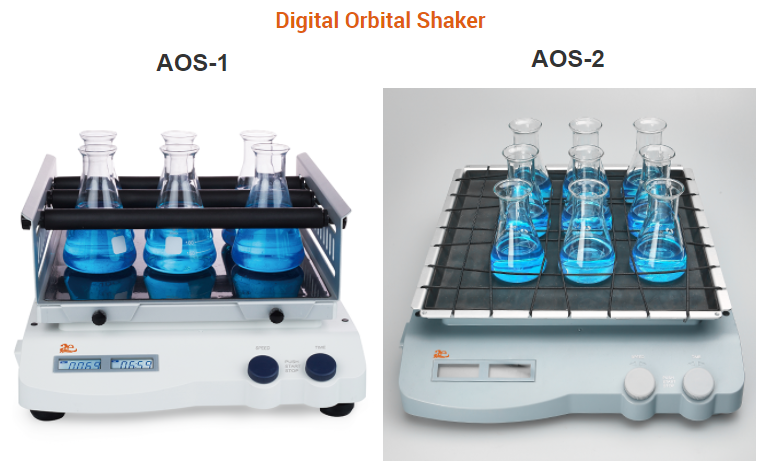

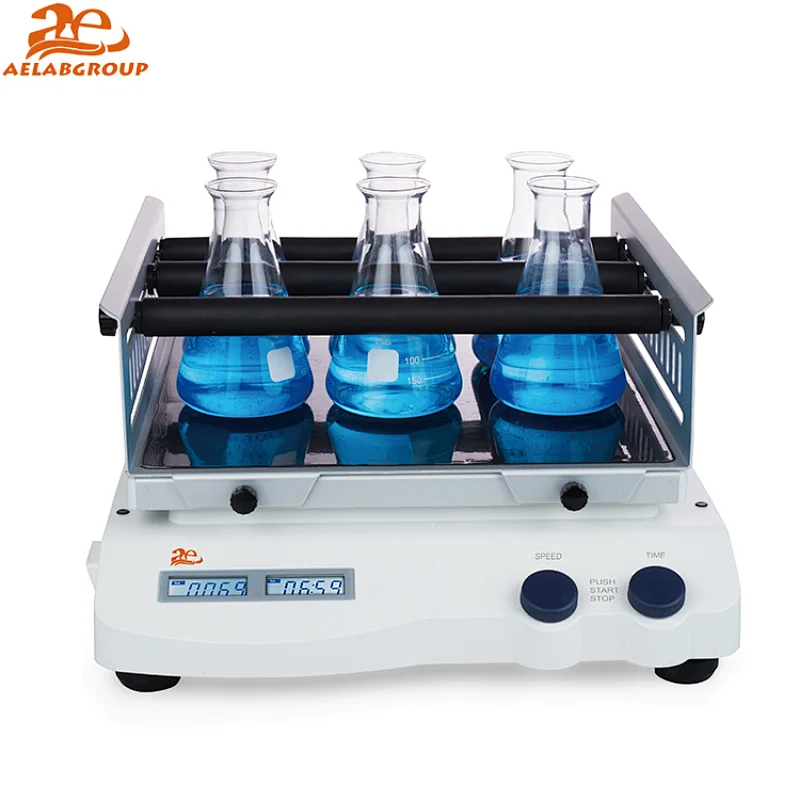

AELAB Digital Orbital Shakers AOS-1

Model NO.: AOS-1

+ Compact and space saving unit.
+ Microprocessor PID control ensures powerful and consistent shaking motion.
+ Load capacity up to 7.5Kg
+ LCD digital control of speed and time.
+ Programmable speed ranges from 100-500rpm.
+ Easy-to-set digital timer from 1min-19h59min.
+ High performance BLDC motor with overspeed detection.

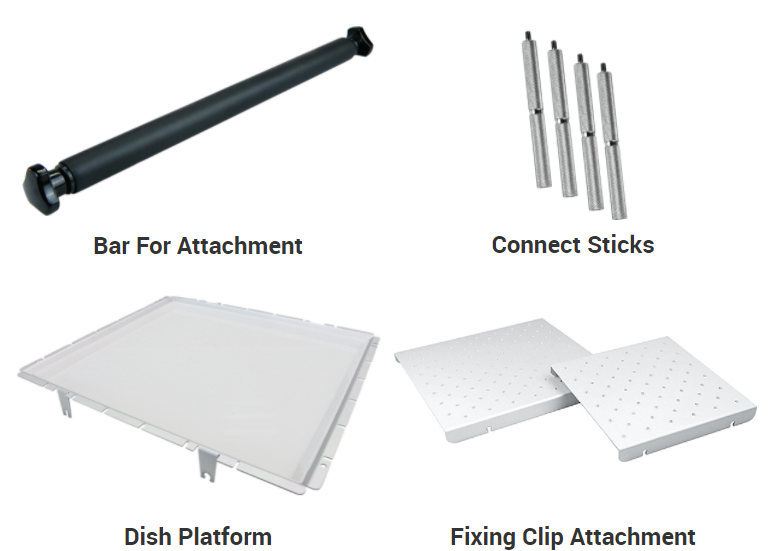

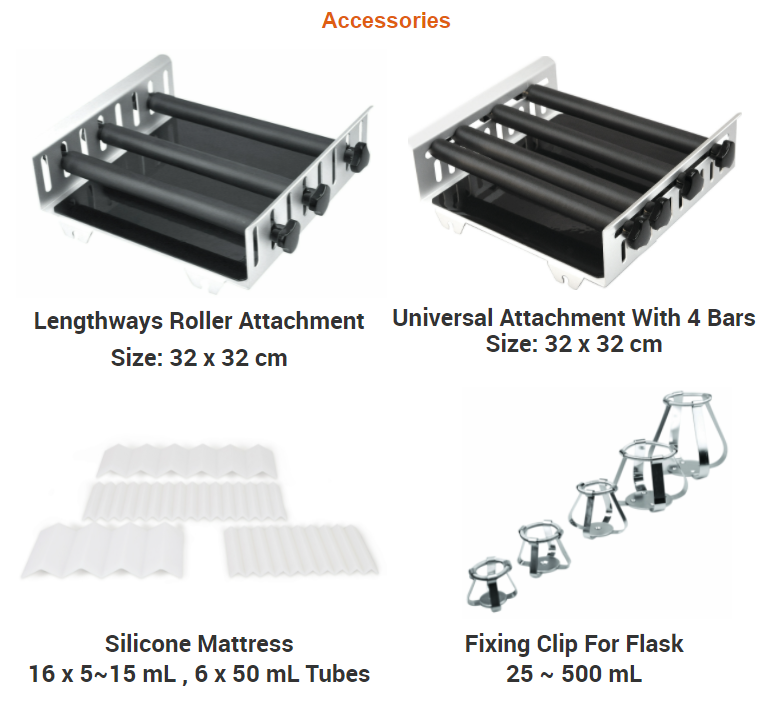

+ Variety of accessories suitable for most commonly used vessels.
+ RS232 interface for data documentation and external control through PC.

Quantity:

Product Description

AELAB Digital Orbital Shakers AOS-1
Orbital shakers with a variety of accessories are suitable for use in different laboratories in microbiology, chemistry, biochemistry and molecular biology in applications like drug analysis, ELISA, Enzyme immunoassays, protein synthesis, etc.,

Features:
+ Compact and space saving unit.
+ Microprocessor PID control ensures powerful and consistent shaking motion.
+ Load capacity up to 7.5Kg
+ LCD digital control of speed and time.
+ Programmable speed ranges from 100-500rpm.
+ Easy-to-set digital timer from 1min-19h59min.
+ High performance BLDC motor with overspeed detection.
+ Variety of accessories suitable for most commonly used vessels.
+ RS232 interface for data documentation and external control through PC.

Technical Specifications:

Model	AOS-1	AOS-2	A0SM-1	A0SM-2
Orbital diamter /Amplitude	10mm		20mm	10mm
Max.load capacity (with platform)	7.5kg	3kg	3kg	7.5kg
Motor type	Brushless DC motor
Motor input power	28W	20W	16W	28W
Motor output power	15W	15W	10W	15W
Speed range	100-500rpm	70-400rpm	70-200rpm	100-350rpm
Speed display	LCD	LCD	LED	LCD
Timer display	LCD	LCD	LED	LCD
Time setting range	1min-19h59min	1-1199min		1min-19h59min
Voltage	100-240V, 50/60Hz
Power	30W	25W	20W	30W
Weight	12.5kg	9.8kg	3.1kg	13.5kg
Ambient temperature and humidity	5-40℃, 80%
Dimensions (WxDxH)	370x420x100mm	420X370X100mm	330x270x110mm	420X370X100mm
Protection class	IP21
Data connector	RS232	---
