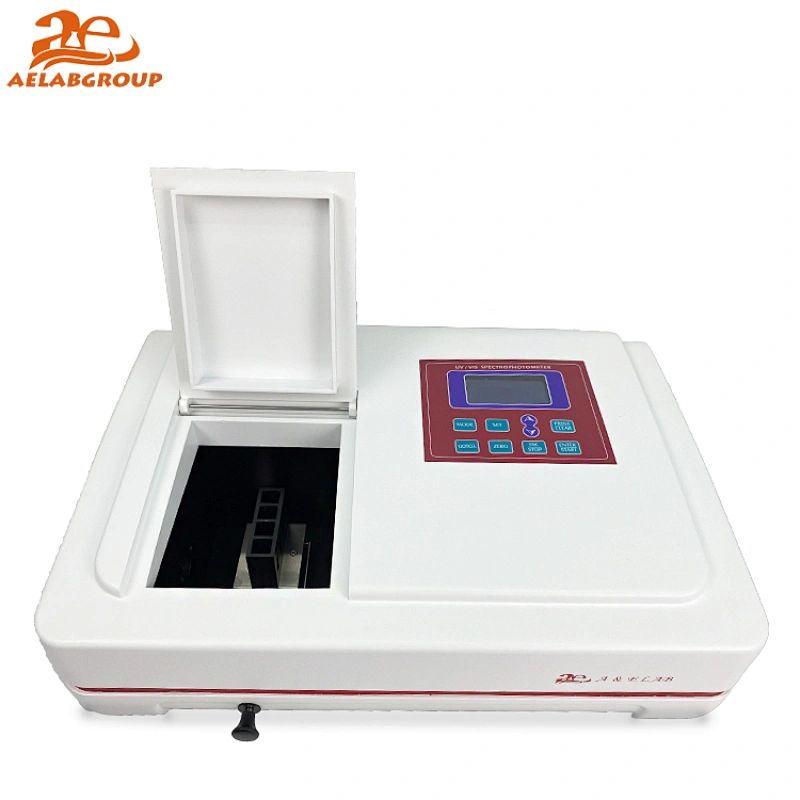

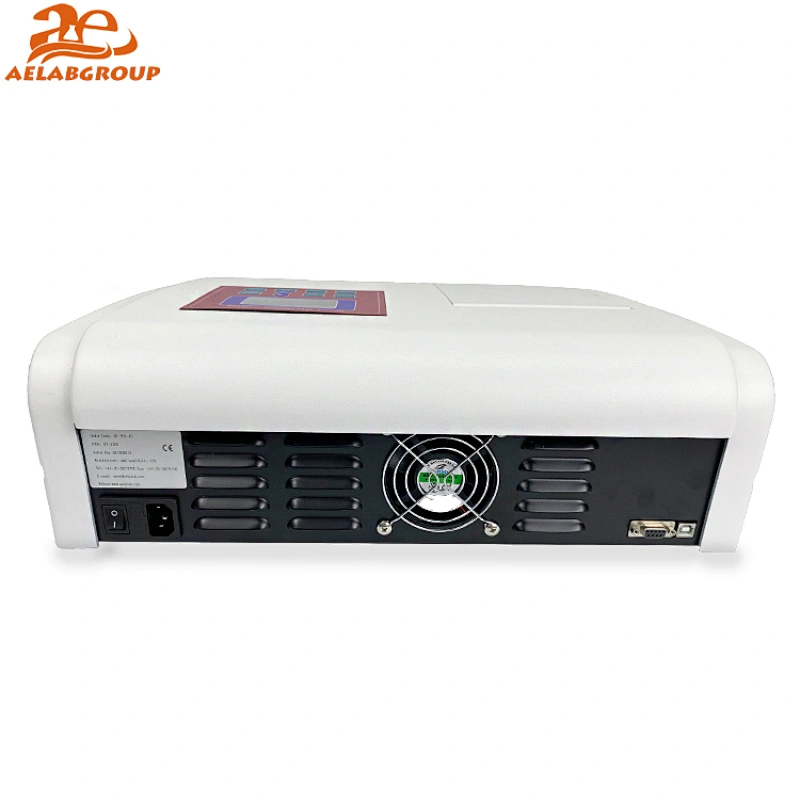

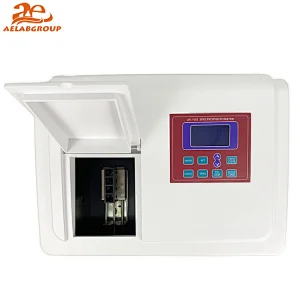

AELAB VIS Spectrophotometer Single Beam AE-S60-4V
AELAB VIS Spectrophotometer Single Beam AE-S60-4V
AELAB VIS Spectrophotometer Single Beam AE-S60-4V
AELAB VIS Spectrophotometer Single Beam AE-S60-4V
AELAB VIS Spectrophotometer Single Beam AE-S60-4V
AELAB VIS Spectrophotometer Single Beam AE-S60-4V
AELAB VIS Spectrophotometer Single Beam AE-S60-4V
AELAB VIS Spectrophotometer Single Beam AE-S60-4V
AELAB VIS Spectrophotometer Single Beam AE-S60-4V

AELAB VIS Spectrophotometer Single Beam AE-S60-4V

Model NO.
AE-S60-4V
+ Single beam spectrophotometer with highly stable optics.
+ 6 inches & compact LCD display. Integrated user interface.
+ Extremely versatile with full functionality
+ UV range: 190 to 1100nm, VIS range:320-1100nm.
+ Spectral bandwidth 1.8 & 2nm.
+ USB port for data storage.
+ ISO/CE Certificate passed.
+ A & E Lab PC software available.
+Extensive range of accessories available.
Quantity:

AELAB VIS Spectrophotometer Single Beam AE-S60-4V
AE-S60 SeriesCan display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results.
* It can set up various standard curves according to customer/s solutions and find the concentration of unknown solutions.
* Equipped with imported deuterium lamp which ensures low stray light, photometric accuracy and is easy to be replaced.

Features:
+ Single beam spectrophotometer with highly stable optics.
+ 6 inches & compact LCD display. Integrated user interface.
+ Extremely versatile with full functionality
+ UV range: 190 to 1100nm, VIS range:320-1100nm.
+ Spectral bandwidth 1.8 & 2nm.
+ USB port for data storage.
+ ISO/CE Certificate passed.
+ A & E Lab PC software available.
+Extensive range of accessories available.


Functions:
T Mode: Continuously measure the Transmittance of samples
A Mode: Continuously measure the Absorbance of samples

C Mode: Standard Curve method, can use at most 9 standard samples to create a new standard curve, and to measure the unknown samples by the new one.
F Mode: Coefficient Method, Input the known K and C to measure the unknown concentration samples.

Ordering Models:


Order CodeDescription
AE-S60-2USingle beam,UV-VIS Spectrophotometer,LCD displayWavelength range 190-1000nm, Bandwith: 2nm
AE-S60-4UWavelength range 200-1000nm, Bandwith: 4nm.
AE-S60-4VSingle beam,Visible Spectrophotometer,LCD displaySingle Beam,325-1000nm, Bandwith: 4nm.

Technical Specifications:

Wavelength
Wavelength RangeUV range: 190-1000nm
Visible Range: 325-1000nm
Wavelength Accuracy ±1nm
Wavelength Repeatability0.5nm
Band Width2nm/4nm
Wavelength SettingAuto
Photometric
Photometric Accuracy±0.5%T
Photometric Repeatability 0.3%T
Photometric Display Range 0-200%T, -0.3-3.0A, 0-9999C
Stability 0.002A/h @ 500nm
Noise±0.001A
Stray Light ≤0.3%T  @220nm, 360nm
Others
Data Output PortUSB
Printer PortParallel Port
Optical SystemSingle Beam (1200 lines/mm grating)
DisplayAE-S60: 128x64 Dots LCD
LampsDeuterium & Tungsten Halogen Lamp
DetectorSilicon Photodiode
SoftwareUV or VIS software
Power SupplyAC 220V/50Hz, 110V/60Hz.
Packing Size & Gross Weight57x45x31cm & 13kg

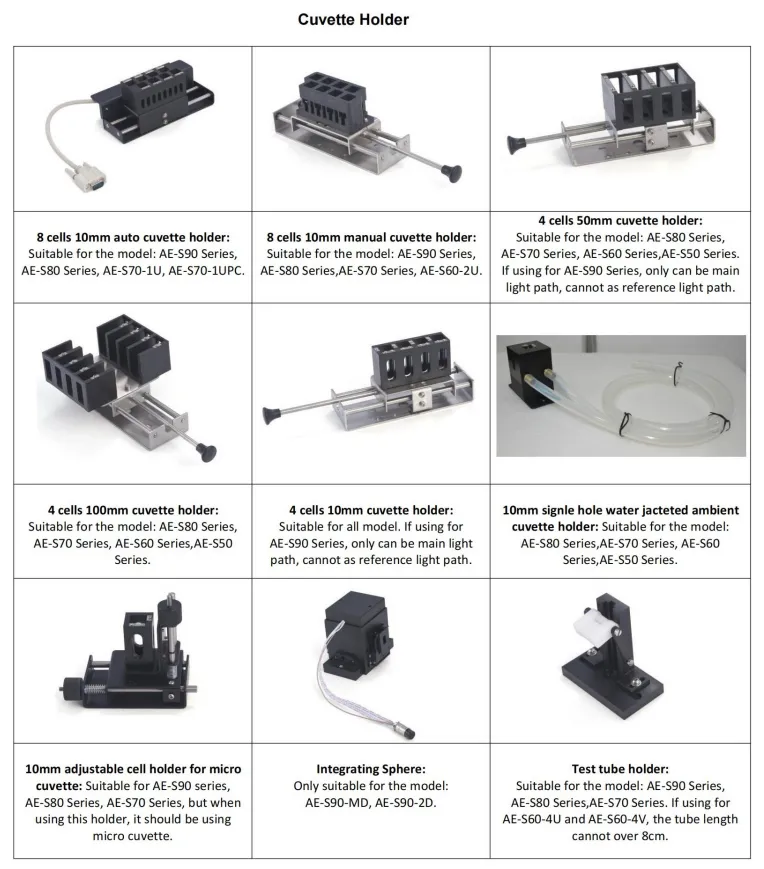

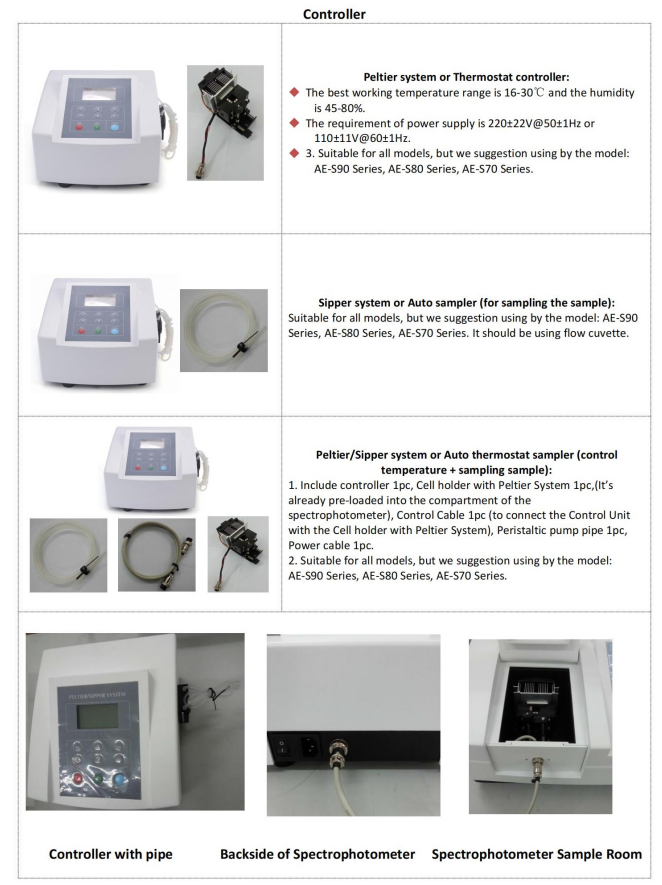

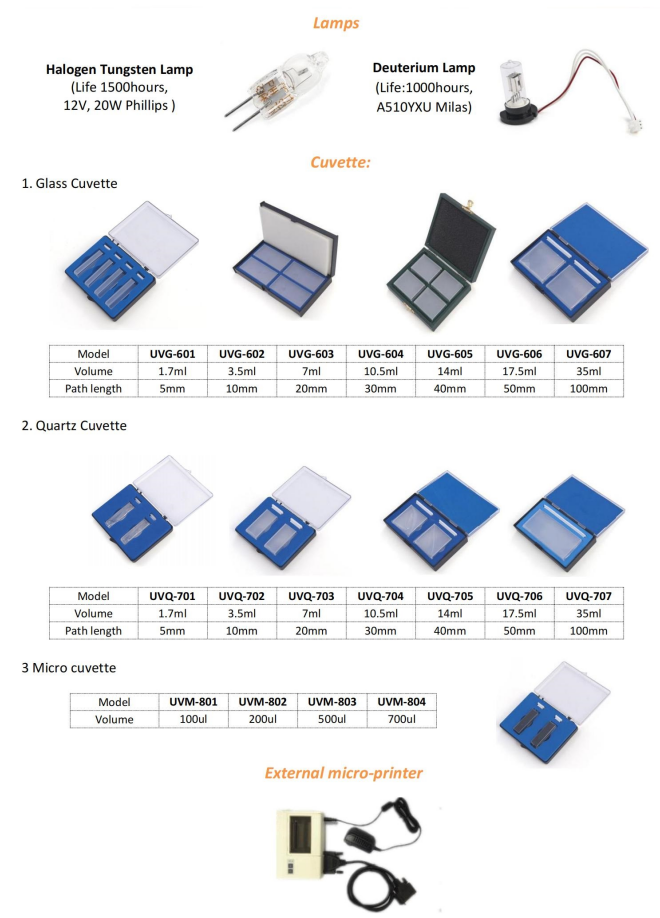

Spectrophotometer Optional Accessories

Spectrophotometer Optional Accessories
