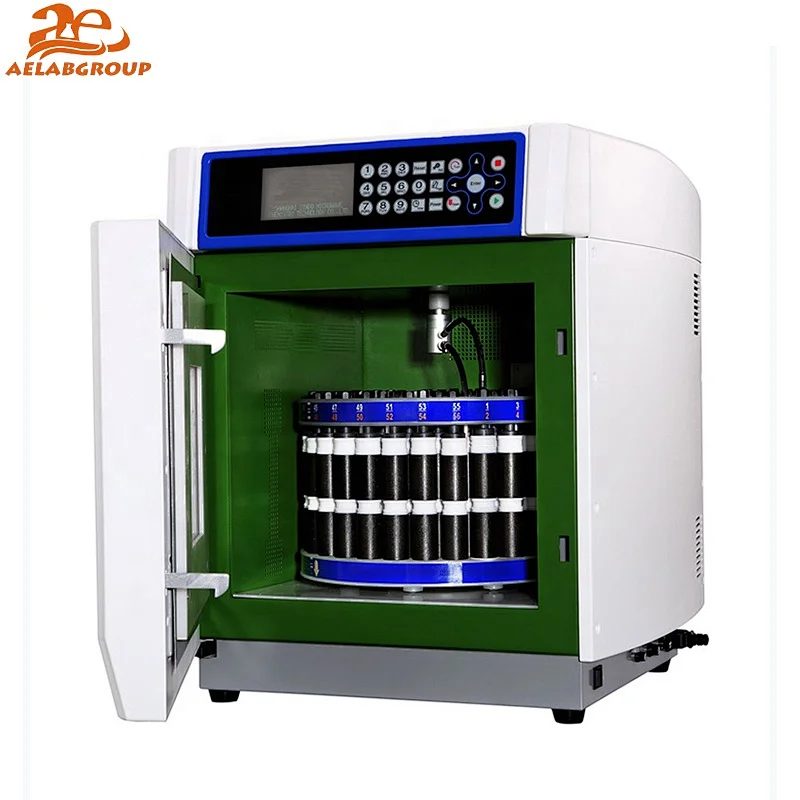

AELABUltra High Throughput Closed Microwave Digestion/Extraction Workstation
Feature:

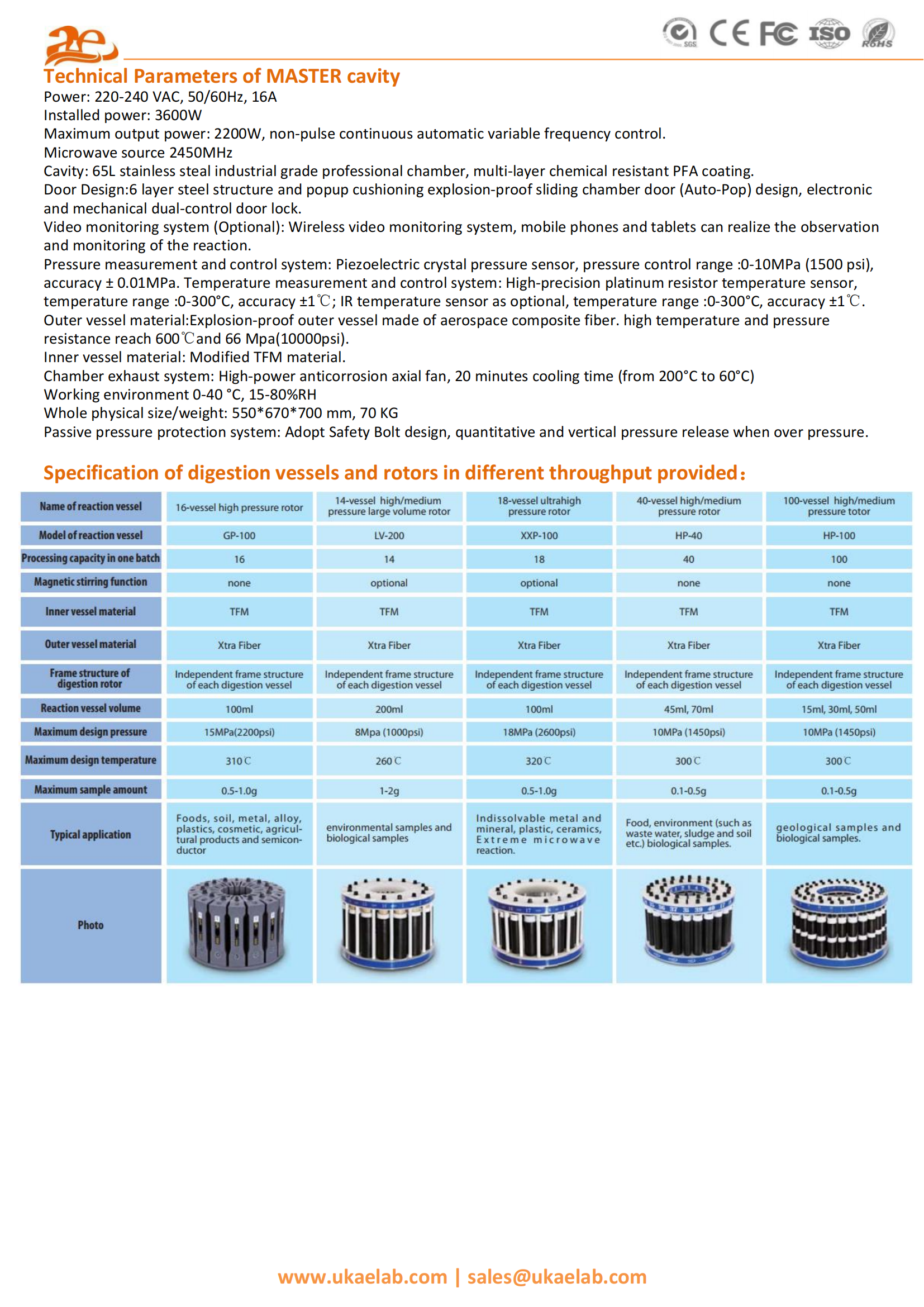

Technical Parameters of MASTER cavity
Power: 220-240 VAC, 50/60Hz, 16A
Installed power: 3600W
Maximum output power: 2200W, non-pulse continuous automatic variable frequency control.
Microwave source 2450MHz
Cavity: 65L stainless steal industrial grade professional chamber, multi-layer chemical resistant PFA coating.
Door Design:6 layer steel structure and popup cushioning explosion-proof sliding chamber door (Auto-Pop) design, electronic and mechanical dual-control door lock.
Video monitoring system (Optional): Wireless video monitoring system, mobile phones and tablets can realize the observation and monitoring of the reaction.
Pressure measurement and control system: Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa. Temperature measurement and control system: High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃; IR temperature sensor as optional, temperature range :0-300°C, accuracy ±1℃.
Outer vessel material:Explosion-proof outer vessel made of aerospace composite fiber. high temperature and pressure resistance reach 600℃and 66 Mpa(10000psi).
Inner vessel material: Modified TFM material.
Chamber exhaust system: High-power anticorrosion axial fan, 20 minutes cooling time (from 200°C to 60°C)
Working environment 0-40 °C, 15-80%RH
Whole physical size/weight: 550*670*700 mm, 70 KG
Passive pressure protection system: Adopt Safety Bolt design, quantitative and vertical pressure release when over pressure.

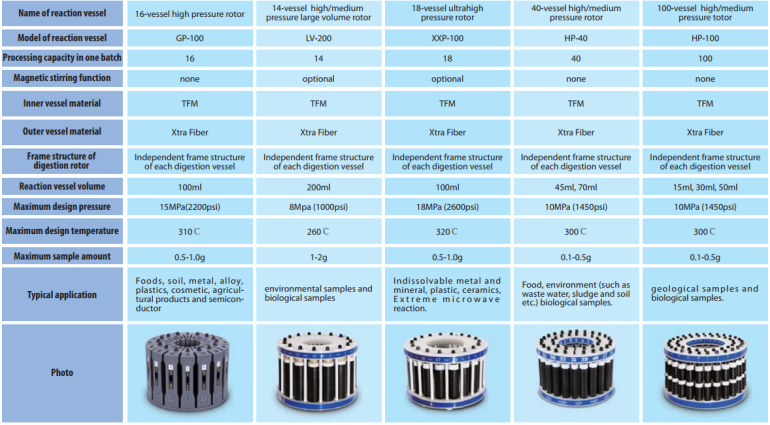

Specification of digestion vessels and rotors in different throughput provided:
Feature:
+ More than 20 years of experience in microwave;
+ Leader in number of users nationally of 9000+ units;
+ 6-year supplier of Administration of Quality Supervision, Inspection and Quarantine of P.R.C;
+100 vessel throughput, NO.1 in the world;
+ 4 times BCEIA gold award of China Association for Instrumental Analysis;
+ Various choices of vessel configurations, throughput of: 16, 18, 40 and 100 vessels; volume of: 15ml, 30ml, 50ml, 70ml, 100ml, 200ml and 500ml;
+ Free lifetime warranty to the core components-magnetron of the Microwave Digestion System;
+ Leader in number of users nationally of 9000+ units;
+ 6-year supplier of Administration of Quality Supervision, Inspection and Quarantine of P.R.C;
+100 vessel throughput, NO.1 in the world;
+ 4 times BCEIA gold award of China Association for Instrumental Analysis;
+ Various choices of vessel configurations, throughput of: 16, 18, 40 and 100 vessels; volume of: 15ml, 30ml, 50ml, 70ml, 100ml, 200ml and 500ml;
+ Free lifetime warranty to the core components-magnetron of the Microwave Digestion System;
Technical Parameters of MASTER cavity
Power: 220-240 VAC, 50/60Hz, 16A
Installed power: 3600W
Maximum output power: 2200W, non-pulse continuous automatic variable frequency control.
Microwave source 2450MHz
Cavity: 65L stainless steal industrial grade professional chamber, multi-layer chemical resistant PFA coating.
Door Design:6 layer steel structure and popup cushioning explosion-proof sliding chamber door (Auto-Pop) design, electronic and mechanical dual-control door lock.
Video monitoring system (Optional): Wireless video monitoring system, mobile phones and tablets can realize the observation and monitoring of the reaction.
Pressure measurement and control system: Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa. Temperature measurement and control system: High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃; IR temperature sensor as optional, temperature range :0-300°C, accuracy ±1℃.
Outer vessel material:Explosion-proof outer vessel made of aerospace composite fiber. high temperature and pressure resistance reach 600℃and 66 Mpa(10000psi).
Inner vessel material: Modified TFM material.
Chamber exhaust system: High-power anticorrosion axial fan, 20 minutes cooling time (from 200°C to 60°C)
Working environment 0-40 °C, 15-80%RH
Whole physical size/weight: 550*670*700 mm, 70 KG
Passive pressure protection system: Adopt Safety Bolt design, quantitative and vertical pressure release when over pressure.
Specification of digestion vessels and rotors in different throughput provided:
