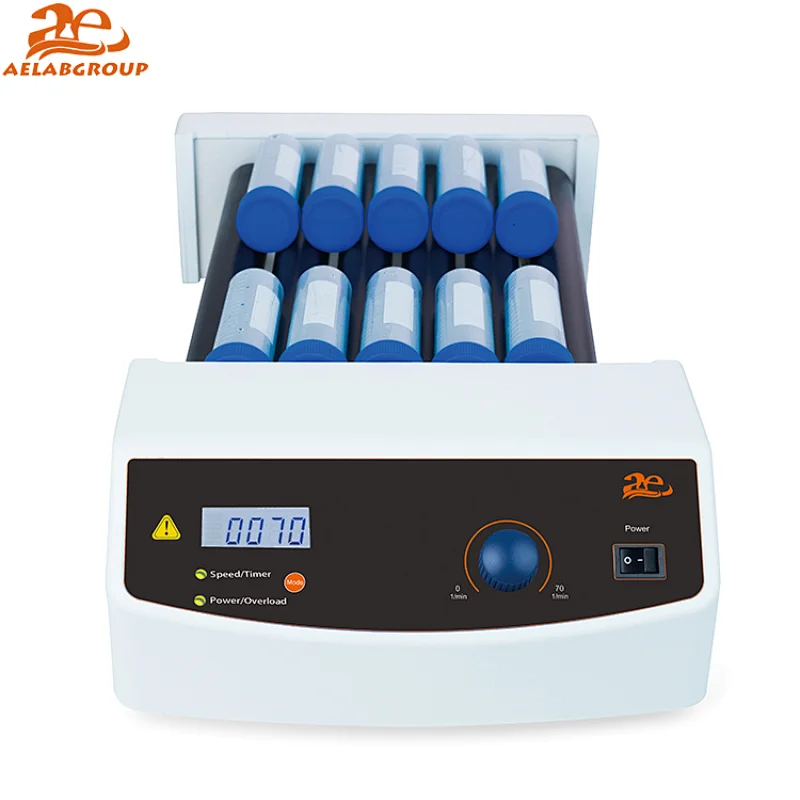

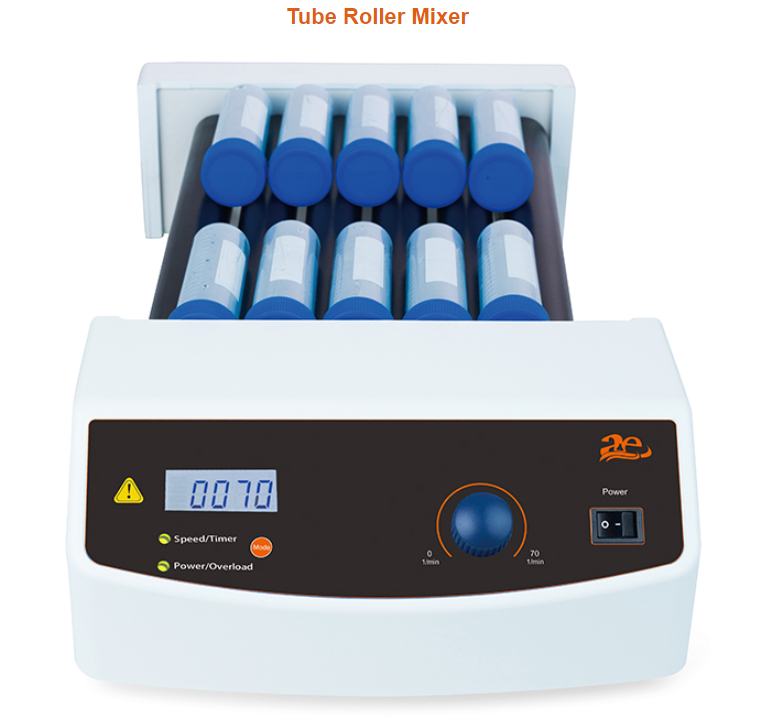

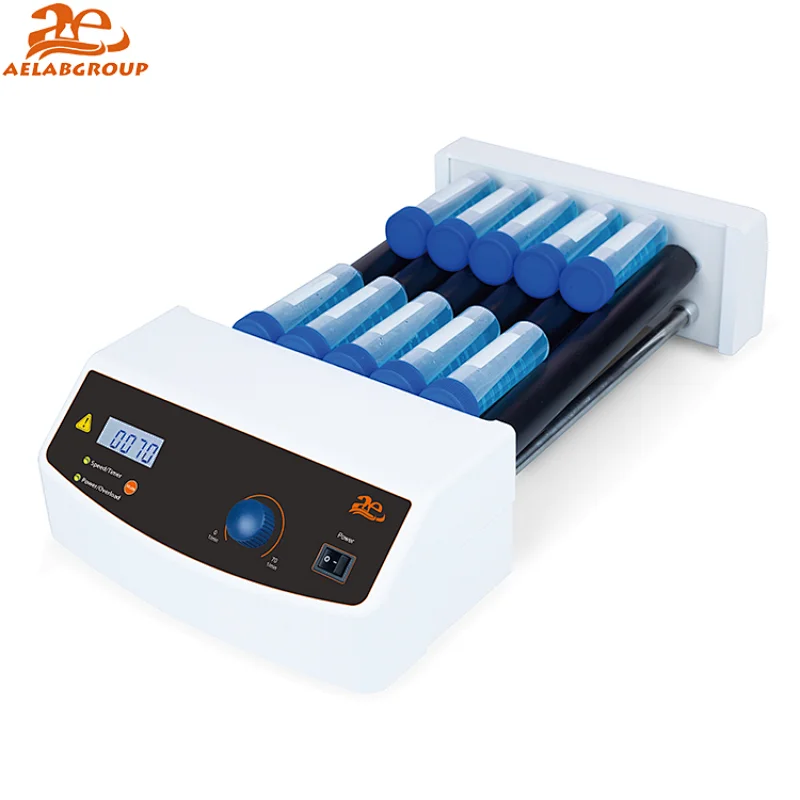

AELAB Tube Roller ATRL-1
Tube Rollers are used for uniform mixing of blood samples, viscous liquids, and whole blood components in the anticoagulation tubes or bottles. These rollers can mix samples in any type of liquid containers. Tube rollers are microprocessor controlled with digital timer.
Features:
+ Maximum load of up to 4Kg.
+ Gentle mixing in rolling motion with a capacity of 6 tubes.

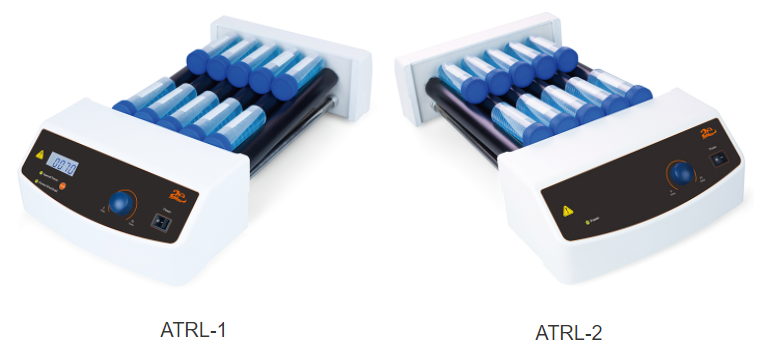

+ LCD digital display of adjustable speed and time (ATRL-1).
+ Speed adjustable from 10-70rpm and timer from 1-1199min (ATRL-1).
+ Speed adjustable from 0-70rpm (ATRL-2).
+ LED overload indicator.
Technical Specifications:
Tube Rollers are used for uniform mixing of blood samples, viscous liquids, and whole blood components in the anticoagulation tubes or bottles. These rollers can mix samples in any type of liquid containers. Tube rollers are microprocessor controlled with digital timer.
Features:
+ Maximum load of up to 4Kg.
+ Gentle mixing in rolling motion with a capacity of 6 tubes.
+ LCD digital display of adjustable speed and time (ATRL-1).
+ Speed adjustable from 10-70rpm and timer from 1-1199min (ATRL-1).
+ Speed adjustable from 0-70rpm (ATRL-2).
+ LED overload indicator.
Technical Specifications:
| Specifications | ATRL-1 | ATRL-2 |
| Amplitude | 24mm | 24mm |
| Motor type | DC motor | DC motor |
| Rocking motion | Rocking and rolling | Rocking and rolling |
| Amplitude | 24mm | 24mm |
| Max. load capacity | 4kg | 4kg |
| Number of rollers | 6 | 6 |
| Roller size[length] | 280mm | 280mm |
| Speed range | 10 -70rpm | 0-70rpm |
| Speed display | LCD | Scale |
| Timer | Yes | -- |
| Timer display | LCD | -- |
| Time setting range | 1-1199min | -- |
| Operation mode | Continuous/timer | Continuous |
| Voltage | 100-240V,50/60Hz | 100-240V,50/60Hz |
| Power | 30W | 25W |
| Dimension [D×W×H] | 450×260×120mm | 450×260×120mm |
| Weight | 5.1kg | 4.5kg |
| Permissible ambient temperature and humidity | 5-40°C,80%RH | 5-40°C,80%RH |
| Protection class | IP21 | IP21 |
