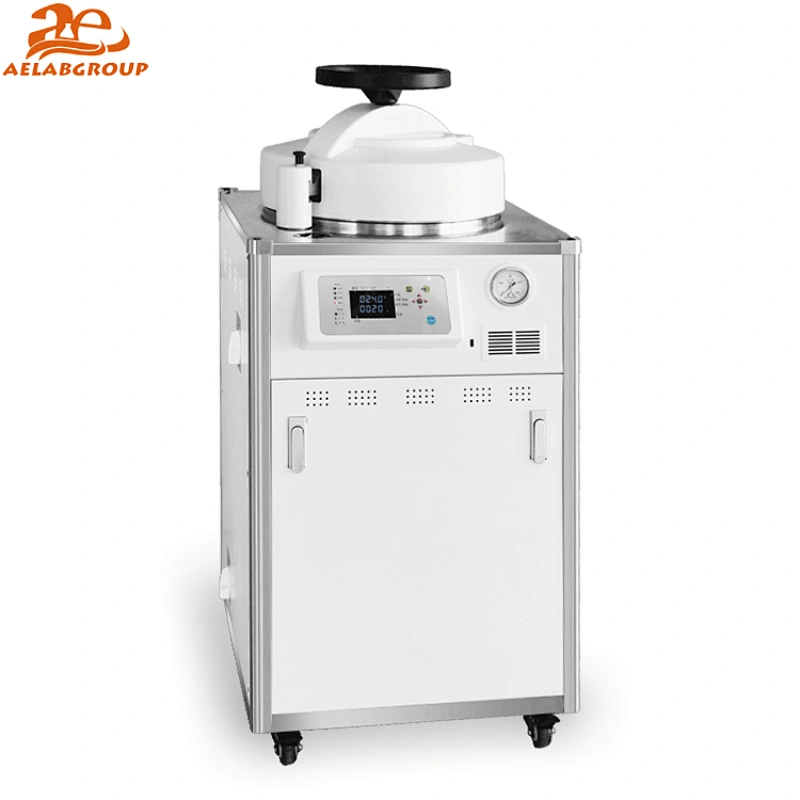

AELAB Steam Sterilizer Autoclave Sterilization AE-VD30 AE-VD50 AE-VD75

Model NO.: AE-VD30 AE-VD50 AE-VD75

+The shell case is made of high temperature thermoplastic material with outstanding impact resistance and stainless steel.
+The pot body of sterilizer is made of food grade stainless steel(304).
+The lid opening and closing device adopts the lever type multi-link synchronous telescopic structure, which makes the lid and the pot body open and close flexible and light, safe and reliable.

Quantity:

Product Description

AELAB Steam Sterilizer Autoclave Sterilization AE-VD30 AE-VD50 AE-VD75

Features :
+ The shell case is made of high temperature thermoplastic material with outstanding impact resistance and stainless steel.
+ The pot body of sterilizer is made of food grade stainless steel(304).
+ The lid opening and closing device adopts the lever type multi-link synchronous telescopic structure, which makes the lid and the pot body open and close flexible and light, safe and reliable.

Control and operation
The console uses the LCD window graphic dynamic display, the function settings are all selected by scrolling graphic and text, the whole sterilization phase is monitored by micro-computer graphic display and automatic cycle control, and the automatic shutdown is initiated when sterilization phase ends(with an alarm).
Function description

It has a one-button sterilization function selection, which can make a quick and clear choice based on different items.
With air-cooled chilling device to ensure that the pot body is quickly cooled at the end of sterilization, thus reducing the time to open the lid.
It has the function of preheating and melting of sterilized items and has time and temperature selection for the items to be dissolved.
A USB interface is available for the convenience if monitoring process with connection to a computer and of collecting data.
Sterilization reservation function is available so that users can start itat a set time.
Automatic fault detection and judgment system is in place.
The full-automatic control model has the function of discharging the low temperature air and exhausting steam when sterilization procedure ends.

Safety devices

It has a safety Interlocking device structure of which is featured by electronic and mechanical interaction, thus ensuring that it automatically locks the lid when there is pressure in the pot and avoid any danger resulted from improper operations.
Double protection system with the mechanical safety relief valve and electronically controlled overvoltage protective device.
It has heater anti-drying protection function and leakage protection system.
The full-automatic control model has the function of discharging the low temperature air and exhausting steam when sterilization procedure ends.

Safety devices

It has a safety Interlocking device structure of which is featured by electronic and mechanical interaction, thus ensuring that it automatically locks the lid when there is pressure in the pot and avoid any danger resulted from improper operations.
Double protection system with the mechanical safety relief valve and electronically controlled overvoltage protective device.
It has heater anti-drying protection function and leakage protection system.

Technical Specifications:

Parameter/Model	AE-V30KBS/V50KBS/V75KBS	AE-VD30/VD50/VD75
Configuration	Semi-automatic Control	Full-automatic control,Automatic Exhaust
The main material	Stainless steel	Stainless steel
Volume/GW	30L/50L/75L 93/96/101kg	30L/50L/75L 93/96/101kg
Voltage/Power	220V/3.5Kw	220V/3.5Kw
Packing size (L x W x H mm)	760 x 650 x 1270 (30L/50L) 760 x 650 x1430 (75L)	760 x 650 x 1270 (30L/50L) 760 x 650 x1430 (75L)
Sterilization chamber volume (D x H mm)	370x400(30L) 370x550(50L) 370X700(75L)	370x400(30L) 370x550(50L) 370X700(75L)
Basket size(D x H mm)	335x190(30L) 335x360(50L) 350x190x3pcs (75L)	335x190(30L) 335x360(50L) 350x190x3pcs (75L)
Time setting range	0-99 h	0-99 h
Rated working pressure	0.142MPa	0.142MPa
Sterilization temperature setting range	50～126℃	50～126℃
