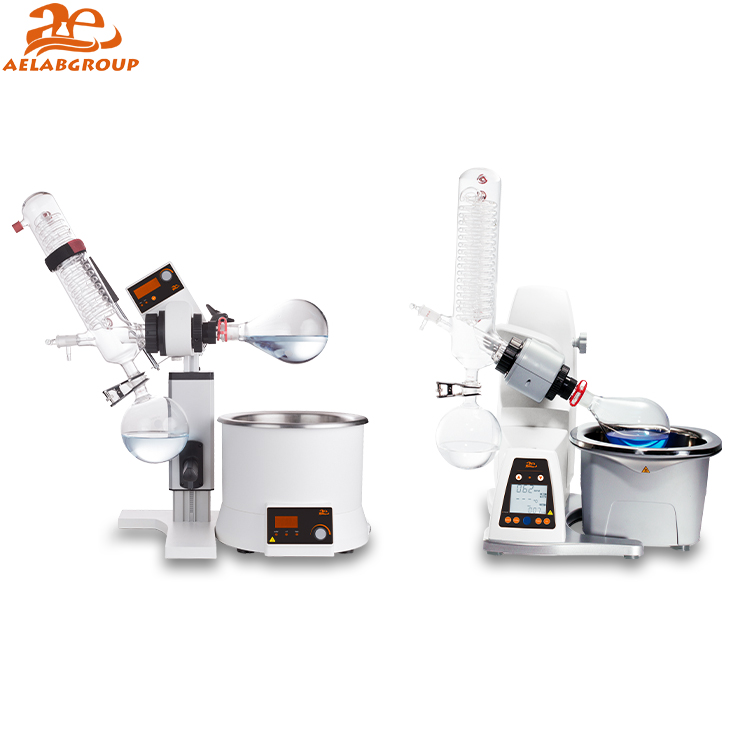

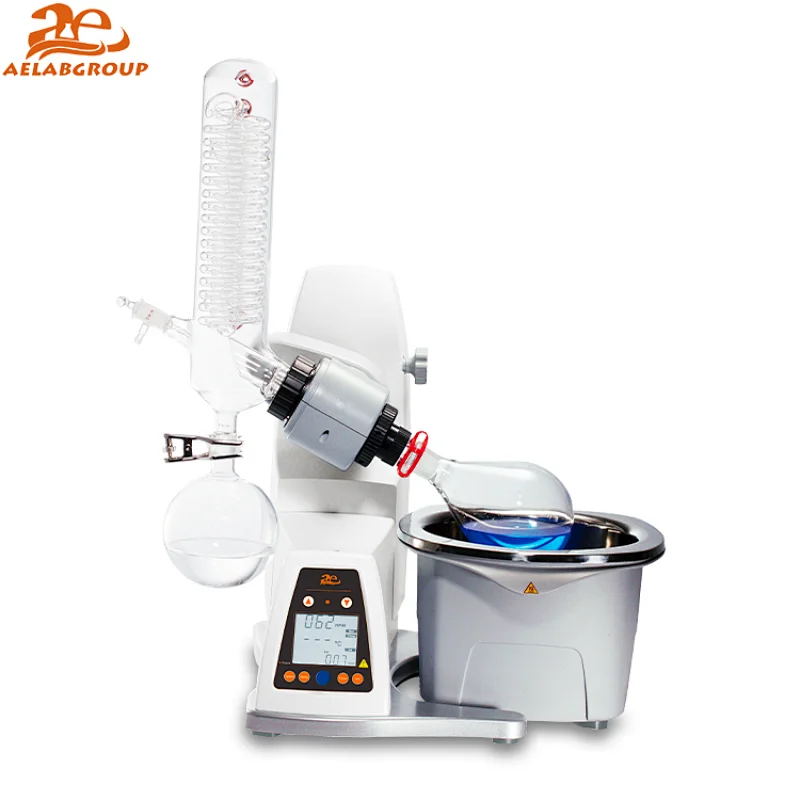

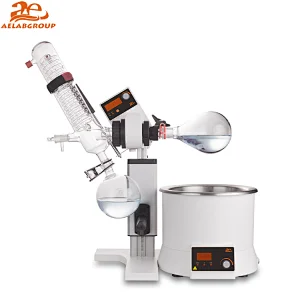

AELAB Rotary Vacuum Evaporator Vertical AE-RE2S
AELAB Rotary Vacuum Evaporator Vertical AE-RE2S
AELAB Rotary Vacuum Evaporator Vertical AE-RE2S
AELAB Rotary Vacuum Evaporator Vertical AE-RE2S
AELAB Rotary Vacuum Evaporator Vertical AE-RE2S
AELAB Rotary Vacuum Evaporator Vertical AE-RE2S
AELAB Rotary Vacuum Evaporator Vertical AE-RE2S

AELAB Rotary Vacuum Evaporator Vertical AE-RE2S

Model NO.
AE-RE2S
+ 5L heating bath with a wide temperature range (room temp.to180°C), independent temperature control,make it can be used separately.
+ Water/oil heating mode can be changed only through a switch.
+ Manual lift combined with auxiliary lift for precise positioning of the glassware.
+ PID control ensures high temperature accuracy at ±1C (water).
+ Overheating protection temperature at 220°C Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
+ Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.
+ Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
+ Ejection mechanism ensures easy exchange of evaporating flask Adjustable immersion angle
+ Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
+ Remote function provides PC control and data transmission.
+ Compatible with the entire range of AE-RE2 glassware.
Quantity:
AELAB Rotary Vacuum Evaporator Vertical AE-RE2

Features:

+ 5L heating bath with a wide temperature range (room temp.to180°C), independent temperature control,make it can be used separately.
+ Water/oil heating mode can be changed only through a switch.
+ Manual lift combined with auxiliary lift for precise positioning of the glassware.
+ PID control ensures high temperature accuracy at ±1C (water).
+ Overheating protection temperature at 220°C Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
+ Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.
+ Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
+ Ejection mechanism ensures easy exchange of evaporating flask Adjustable immersion angle
+ Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
+ Remote function provides PC control and data transmission.
+ Compatible with the entire range of AE-RE2 glassware.


Technical Specifications:

 SpecificationsAE-RE2S
TypeVertical
Motor TypeBrushless DC motor
Speed Range20-200rpm
DisplayLED (speed, temperature, time)
Clockwise and Anti-clockwiseYes
Heating Temperature RangeRoom temp. to 180℃
Control Accuracywater: ±1℃ oil: ±3℃
Heating Power1200 W
Stroke DisplacementManual 110mm + auxiliary100mm
TimerYes
Time Setting Range1~999s
Dimension[D×W×H]Main Unit: 440×320×450mm
Heating Bath: 300x300x240mm
WeightMain Unit: 7kg Heating Bath: 3kg
Permissible Ambient Temperature5~40 ℃
Permissible Relative Humidity80%RH
Protection ClassIP20
USB InterfaceYes
Voltage/Frequency100-120/200-240V 50/60Hz
Power1400W
