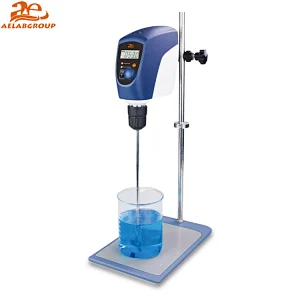

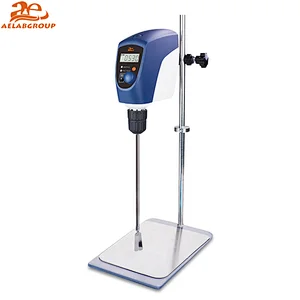

AELAB Overhead Stirrers ASHO-701 (LCD-20L）

AELAB Overhead Stirrers ASHO-701 (LCD-20L）

Model NO.: ASHO-701
Minimum order quantity:: 1

+ Easy and user friendly operation with LCD/LED digital display of set and actual speeds.
+ Speed adjustable within 50-2200rpm with precise speed control.
+ High performance BLDC motor with overload protection.
+ Speed maintains as the viscosity changes.
+ RS232 interface to control and data document(ASHO-701,702).
+ Microprocessor controlled safety circuits prevent splashing.
+ Powerful torque suitable for stirring of highly viscous liquids.
+ Protection class of IP21 , IP42.

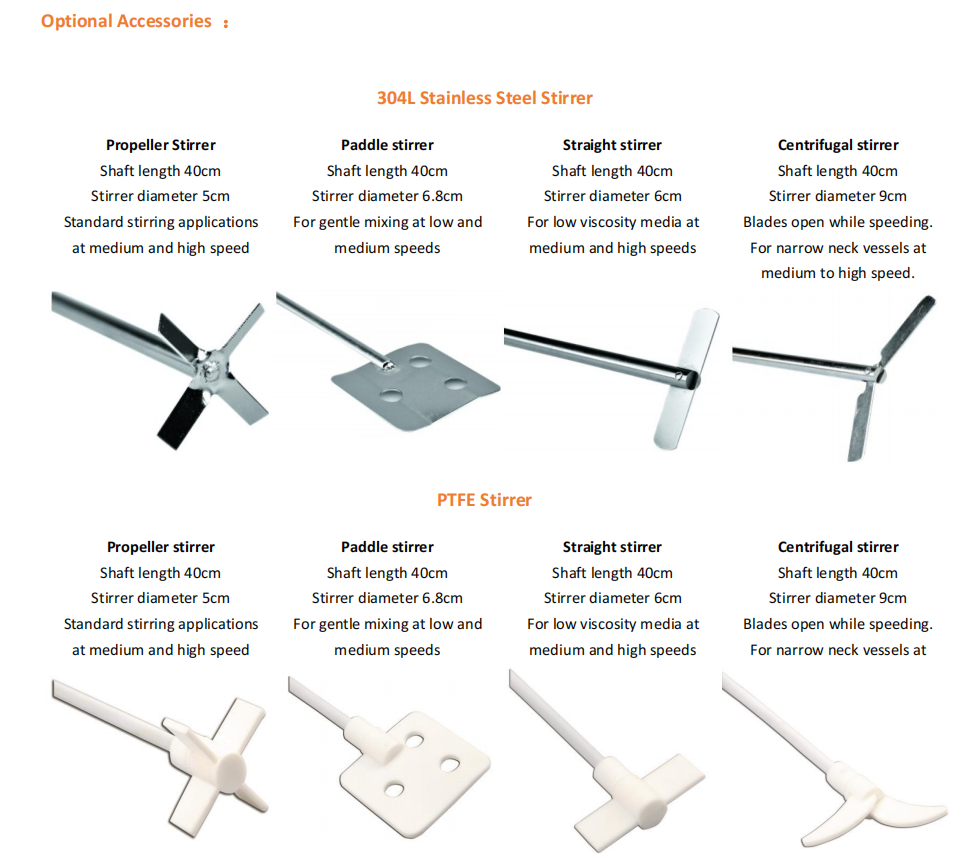

+ A wide range of shaft accessories for different kinds of applications.

Quantity:

Product Description

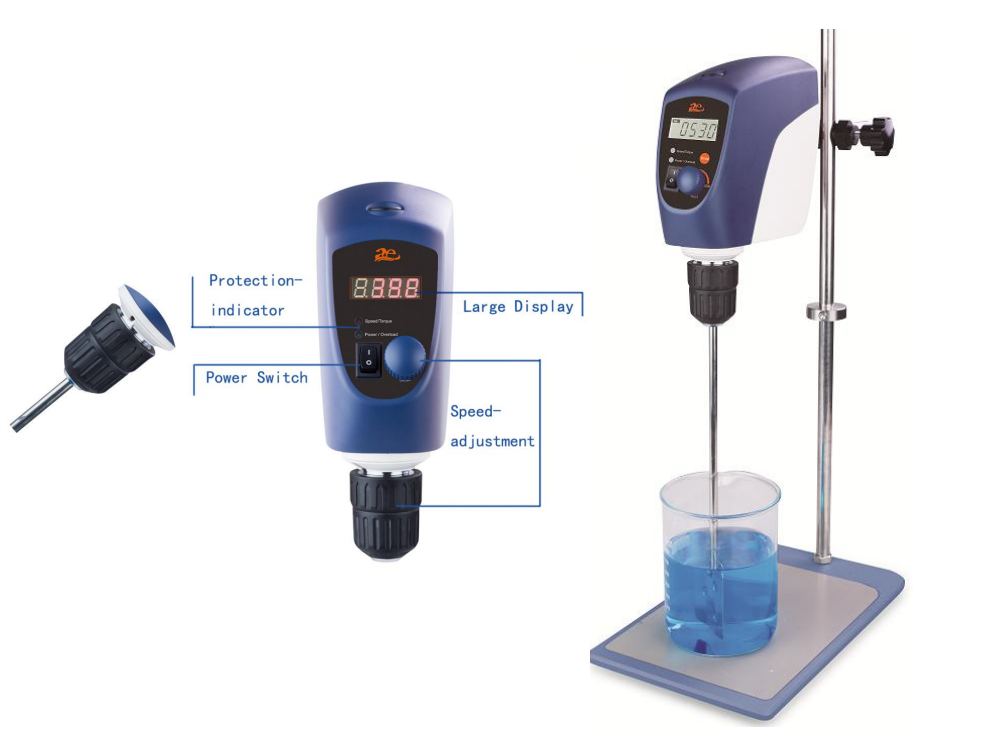

AELAB Overhead Stirrers ASHO-701 (LCD-20L）
Our Overhead Stirrers are designed for high volume and high viscosity sample stirring applications. These are used in polymer processing, organic and inorganic solvent mixing, chemical synthesis and many more pharmaceutical applications.

Features:
+ Easy and user friendly operation with LCD/LED digital display of set and actual speeds.
+ Speed adjustable within 50-2200rpm with precise speed control.
+ High performance BLDC motor with overload protection.
+ Speed maintains as the viscosity changes.
+ RS232 interface to control and data document(ASHO-701,702).
+ Microprocessor controlled safety circuits prevent splashing.
+ Powerful torque suitable for stirring of highly viscous liquids.
+ Protection class of IP21 , IP42.
+ A wide range of shaft accessories for different kinds of applications.

Technical Specifications:

Specifications	ASHO-701	ASHO-702	ASHO-703		ASHO-704
Max. stirring quantity[H2O]	20L	40L	20L		40L
Power	70W	130W	70W		130W
Motor type	Brush less DC motor
Motor input power	60W	120W	60W		120W
Motor output power	50W	100W	50W		100W
Speed range	50-2200rpm
Speed display accuracy	±3rpm
Speed display	LCD		LED
Torque display	LCD		LED
Voltage	100-240V, 50/60 Hz
Overload protection display	LCD			LED
Max. torque	40Ncm	60Ncm	40Ncm		60Ncm
Viscosity max.	10000mPas	50000mPas	10000mPas		50000mPas
Chuck range diameter	0.5-10mm
Dimension[W×D×H]	83x220x186mm
Weight	2.8kg
Protection class	IP21
Permissible ambient temperature and humidity	5-40°C 80%RH
Data connector	RS232		--- --- ---
