AELAB Nucleic Acid Purification System Auto-Pure96
AELAB Nucleic Acid Purification System Auto-Pure96

AELAB Nucleic Acid Purification System Auto-Pure96

Model NO.
Auto-Pure96
Quantity:
AELAB Nucleic Acid Purification System Auto-Pure96

Products introduction :

Auto-Pure series products is an automated system for purifying DNA, RNA, proteins and cells from a variety of sample materials, such as blood, cells and tissue samples. The Auto-Pure purification technology is automated and enables high-speed, high-quality processing with no cross-contamination between the samples or reagent carry-over.

The following automated instruments platforms are available for different processing requirements:


High throughput, fast extraction and modular design can meet variety of needs by one unit.
Operational advantages


1. High-throughput:
Auto-Pure96 can process 96x1ml samples simultaneously

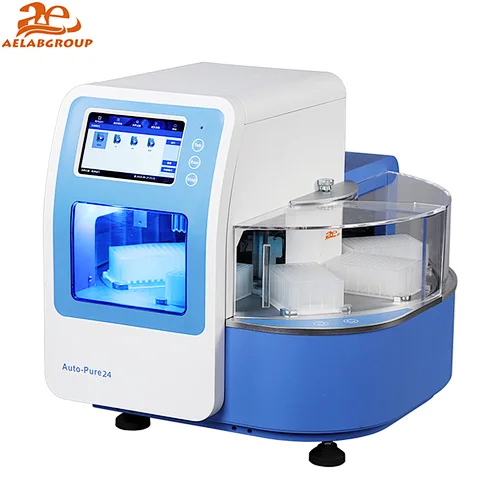

Auto-Pure24 can process 24x10ml samples simultaneously
2. Open and multiple functions design can be provided more?methods for reagent optimization, and also a reliable choice
3. Touchscreen interface and easy operation, parameters can be tuned based on experimental requirements
4. Accurate temperature control system ensures stability of?purification performance
5. Patent structure design with center rotary table which makes?it occupies smaller area?of magnetic rod tip comb, which guaranteed stability and?liability (Success rate >99.99%)


Antipollution measures
1. Avoid reagent splashing through drip shield plate and beads?dried way controlled by software
2. Disposable consumables which can avoid cross contamination


Simple and intelligentized operation
1. Front door can be opened, you can stop it at any moment?which is very convenient for reagent optimization and?experimental status viewing
2. Start with self-check, equipped with power-off protection
3. 8-plate identification design guaranteed their target position,?even though external forces exist
4. Automatic detection in case kit missing
5. With QR code identification, special reagent can be?recognized, without setting program or obtaining protocols


Compatible with automated systems (Optional)
Auto- pure96/24 can be used with automatic equipment,?including mechanical arm, liquid processing system, etc.,which meet the demand of high-flux experiment

TechnicalSpecification :


TypeAuto-Pure96Auto-Pure24
Throughput1~961~24
Process volume50~1000μl50~10000μl
Collection efficiency>95%>95%
Magnetic rod number9624
Plate types96 Deepwell plate24x14.6ml plate
Purification accuracy100 copy sample positive rate>95%
StabilityCV<5%
Heating for lysis tubeAmbient temperature~120°C
Heating for elution tubeAmbient temperature~120°C
Operation7 inch color touch screen
Extraction stepsLysis, binding, washing and elution
Storage Capacitymore than 100 programs
Protocol ManagementCreate, edit, delete, protocol mode
Pollution ControlUV light
LightingYes
Extension interface4 standard USB port, built-in SD card
ExhaustFan
Power Supply450W450W
Dimensions560 × 620 × 500mm560 × 620 × 500mm
Weight54Kg54Kg
