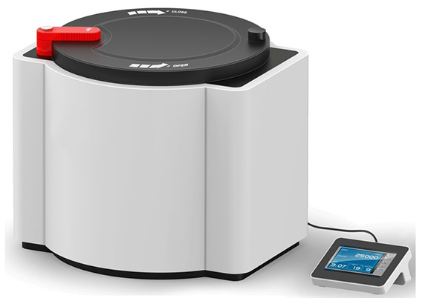

AELAB Microwave Digestion System AE-MD700/650 AE-MD850/800
AELAB Microwave Digestion System AE-MD700/650 AE-MD850/800

AELAB Microwave Digestion System AE-MD700/650 AE-MD850/800

Model NO.
AE-MD700/650 AE-MD850/800
+ Vent and Self-reseal digestion vessel: self-vent and reseal structure with patented law ensures that vessels will release pressure and instantly reseal when a sudden over-pressurization occurs.
This prevents waste of batch samples and solutions, and also avoids sample vessel damage.
+ Temperature-pressure monitoring/protection system: Advanced contactless temperature control technology which measures real temperature of solution in each digestion vessel. Meanwhile, it adopts multi-fiber to monitor pressure in a contactless way. This realizes isolation between temperature and pressure control system, avoids cross-contamination of all samples and also ensures temperature and pressure monitor and control for each and every vessel. All temperature and pressure data are displayed in real time during the microwave rum, allowing a visual check of digestion conditions. It prevents over-pressurization and over-heating
+ Large storage capacity: can edit and store 255 programs according to user's requirements and each method program can set 10 digestion steps. Users can set parameters (temperature, pressure, time, microwave power) according to their own requirements which provides convenient operation for users.
+ Multi safety protection functions: high strength double security door, temperature monitoring, high temperature prevention, pressure monitoring, high pressure prevention, instruments fault monitoring alert, innovative stopping running when opening door, instruments abnormal sound monitoring.
+ Power and power regulation mode: using variable frequency resonance or non-pulse (optional) continuous rotating mode to ensure highly efficient and even microwave throughput. Users can adjust it according to users' requirement between 0-3000W.
Quantity:
AELABMicrowave Digestion System AE-MD700/650 -AE-MD850/800
Features:
+ Vent and Self-reseal digestion vessel: self-vent and reseal structure with patented law ensures that vessels will release pressure and instantly reseal when a sudden over-pressurization occurs.
This prevents waste of batch samples and solutions, and also avoids sample vessel damage.
+ Temperature-pressure monitoring/protection system: Advanced contactless temperature control technology which measures real temperature of solution in each digestion vessel. Meanwhile, it adopts multi-fiber to monitor pressure in a contactless way. This realizes isolation between temperature and pressure control system, avoids cross-contamination of all samples and also ensures temperature and pressure monitor and control for each and every vessel. All temperature and pressure data are displayed in real time during the microwave rum, allowing a visual check of digestion conditions. It prevents over-pressurization and over-heating
+ Large storage capacity: can edit and store 255 programs according to user's requirements and each method program can set 10 digestion steps. Users can set parameters (temperature, pressure, time, microwave power) according to their own requirements which provides convenient operation for users.
+ Multi safety protection functions: high strength double security door, temperature monitoring, high temperature prevention, pressure monitoring, high pressure prevention, instruments fault monitoring alert, innovative stopping running when opening door, instruments abnormal sound monitoring.
+ Power and power regulation mode: using variable frequency resonance or non-pulse (optional) continuous rotating mode to ensure highly efficient and even microwave throughput. Users can adjust it according to users' requirement between 0-3000W.

Quality components :
+ 360°continuous rotator: Realize continuous rotation in the same direction in cavity to ensure even and complete digestion of different vessel. The 360°continuous rotating reduces impact on rotary motor, which greatly extends the service life of rotary motor.
+ Color touch-screen display:7-inch LCD touch-screen display to show real-time temperature, pressure, time and curves. It also contains a real time display for pressure and temperature of each individual vessel to give a clear check of
+ digestion processing.
+ Digestion vessel material: imported TFM material for inner vessel, imported PEEK and glass fiber for outer protection vessel, which prevents high temperature, high pressure and corrosion, and assures safe operation.

Technical Specification :
ModelAE-MD700AE-MD650Outer vessel pressure limit20MPA
Pressure control18 vessels12 vesselsTemperature control range50-400℃
Temperature control18 vessels12 vesselsMaximum working temperature250℃
Vessel volume100MLTemperature control accuracy±0.3℃
Pressure testingNO-Contact ContactlessInner vessel temperature limit300℃
Temperature testingNO-ContactMicrowave power0-3000W adjustable/
0-2000W adjustable/
Vessel materialInner vessel: imported TFM
Outer vessel: imported PEEK+glass fiber
Microwave frequency2450MHz
DisplayExternal 8"inches touch screenRotation mode360 continuous rotation
Microwave leak5mw/ cm²
Pressure control range0-10MPAPowerAC200V, 16A, 50/60HZ
Maximum working pressure6MPADimension630mm*630mm*590mm
Pressure control accuracy0.01MPAWeight75KG/70KG

ModelAE-MD850AE-MD800Outer vessel pressure limit20MPA
Pressure control50 vessels40 vesselsTemperature control range50-400℃
Temperature control50 vessel scan temperature control40 vessel scan temperature controlMaximum working temperature250℃
Vessel volume40MLTemperature control accuracy±0.3℃
Pressure testingContactlessInner vessel temperature limit300℃
Temperature testingContactlessMicrowave power0-3000W adjustable
Vessel materialInner vessel: imported TFM
Outer vessel: imported PEEK+glass fiber
Microwave frequency2450MHz
DisplayExternal 8"inches touch screenRotation mode360 continuous rotation
Microwave leak5mw/ cm²
Pressure control range0-10MPA(0-100KG/CM)PowerAC200V, 16A, 50/60HZ
Maximum working pressure6MPADimension640mm*630mm*590mm
Pressure control accuracy0.01MPA(1KG/CM)Weight88KG/78KG
