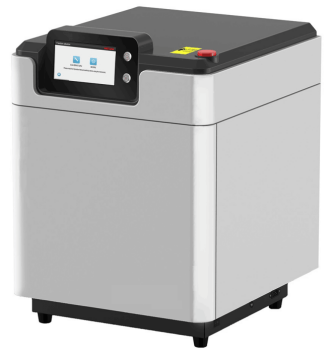

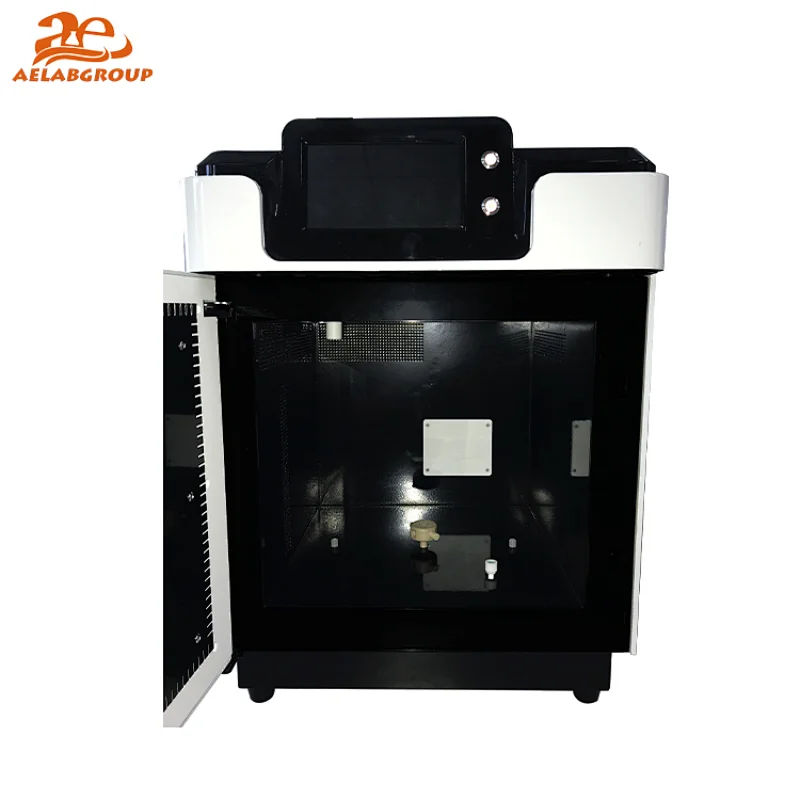

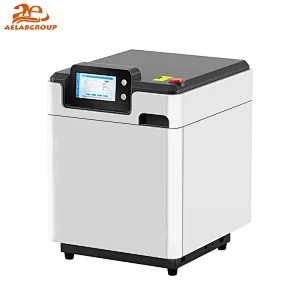

AELAB Microwave Digestion System AE-MD610 Series
AELAB Microwave Digestion System AE-MD610 Series
AELAB Microwave Digestion System AE-MD610 Series
AELAB Microwave Digestion System AE-MD610 Series
AELAB Microwave Digestion System AE-MD610 Series

AELAB Microwave Digestion System AE-MD610 Series

Model NO.
AE-MD610 Series
+ Up to 12 vessels to meet different digestion requirements.
+ Vertical Microwave design for even distribution of microwave.
+ Real time monitoring for both temperature and pressure of each vessel.
+ Contactless monitoring with no burst disk design saves consumable cost and maintenance cost.
+ Imported vessel material for both sample vessel and protection vessel ensures safety.
+ Touch screen with user-friendly interface for easy operation.
+ Imported CFRP with high strength ensures impact resistance.
+ Pre-installed international standard methods while user can also edit, save, modify and delete own method.
+ 316L stainless steel tank with teflon coating avoids erosion and ensures fast cooling.
+ Special magnetron design which carries out high microwave leakage standards.
Quantity:

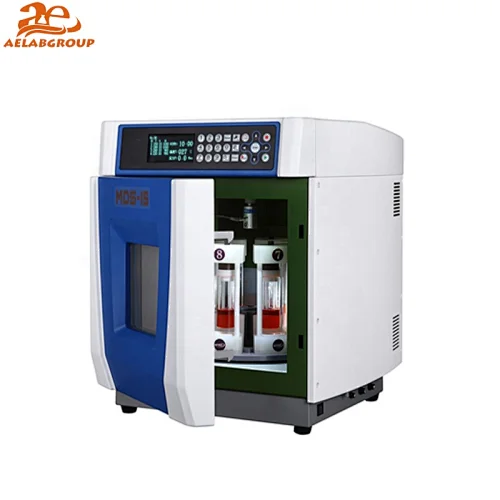

AELABMicrowave Digestion System AE-MD700/650 -AE-MD850/800
Feature:
+ Up to 12 vessels to meet different digestion requirements.
+ Vertical Microwave design for even distribution of microwave.
+ Real time monitoring for both temperature and pressure of each vessel.
+ Contactless monitoring with no burst disk design saves consumable cost and maintenance cost.
+ Imported vessel material for both sample vessel and protection vessel ensures safety.
+ Touch screen with user-friendly interface for easy operation.
+ Imported CFRP with high strength ensures impact resistance.
+ Pre-installed international standard methods while user can also edit, save, modify and delete own method.
+ 316L stainless steel tank with teflon coating avoids erosion and ensures fast cooling.
+ Special magnetron design which carries out high microwave leakage standards.

Technical Specification :
ModelAE-MD610-T6AE-MD610-T8AE-MD610-T10AE-MD610-T12
Vessels681012
Temperature Monitoring SystemAll vessel temperature Control;
Contactless temperature monitoring;
Temperature Accuracy:t0.1℃
Temperature Range:50~400℃
Display Accuracy:0.1℃
Pressure Monitoring
System
All vessels pressure control
Contactless pressure monitoring
Pressure control range:0~15MPa
Pressure Accuracy :±0.01MPa
Display Accuracy:±t0.01Mpa
Vessel Volume100ml
Vessel MaterialImported TFM
Protection vessel materialPeek +Glass Fiber
Display7inch Touch Screen
RotationOne Direction 360°continuous rotating
Microwave Tank316L stainless steel tank with erosion-proof coating
Microwave Power0~1000W (adjustable)
Microwave Leakage<5mw/cm²
Air exhuastHigh power erosion-proof air blower
PowerAC220V+10%.10A,50/60HZ
Dimension560mm*490mm*630mm
