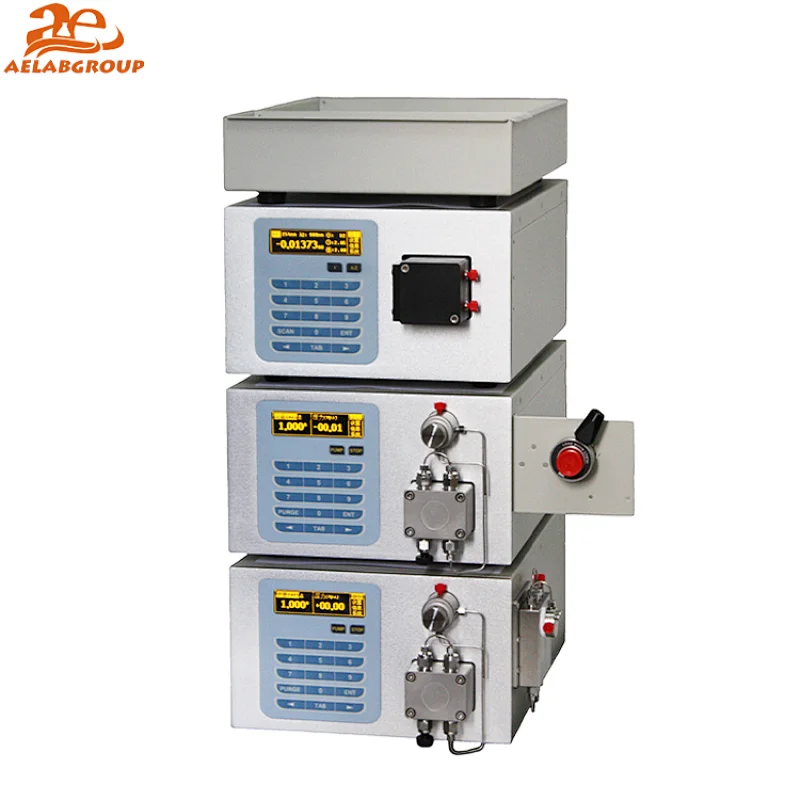

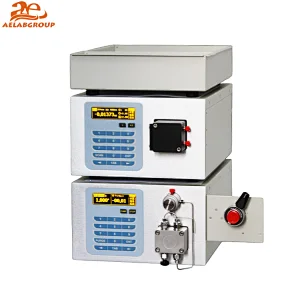

AELAB Isocratic & Binary Gradient System HPLC LC1620A

AELAB Isocratic & Binary Gradient System HPLC LC1620A

Model NO.: LC1620A
Minimum order quantity:: 1

+ Pumping system: Isocratic system and Binary Gradient system.
+ Different detectors available: UV, ELSD, FLD, RID.
+ UV Detector for routine analysis/ RID for universal detection in isocratic analysis, especially necessary in GPC system.
+ Superior high-pressure pump achieves accurate solvent delivery with high-precision and low-fluctuation.
+ Advanced and innovative design modules provide high reliability and accuracy for long time operation.
+ The pump works in-parallel and ensures accuracy and duration.
+ Electronic signature function.

Quantity:

Product Description
Brochure

AELAB Isocratic & Binary Gradient System HPLC LC1620A

Features:

+ Pumping system: Isocratic system and Binary Gradient system.

+ Different detectors available: UV, ELSD, FLD, RID.

+ UV Detector for routine analysis/ RID for universal detection in isocratic analysis, especially necessary in GPC system.

+ Superior high-pressure pump achieves accurate solvent delivery with high-precision and low-fluctuation.

+ Advanced and innovative design modules provide high reliability and accuracy for long time operation.

+ The pump works in-parallel and ensures accuracy and duration.

+ Electronic signature function.

Technical Specification :

Model	LC1620A
Model	Isocratic system	Binary Gradient system
LC1620A Pump	Specifications:
	Delivery system	Dual-plunger in series, Float plunger design, Single stroke discharged fluid volume is 30 ul
	Flow rate range	0.001-9.999mL/min Increment: 0.001ml/min
	Flow rate accuracy	≤±0.5% or 10 µL/min (1mL/min, water, room temperature)
	Flow rate precision	RSD≤0.1% (1mL/min, water, room temperature)
	Pressure fluctuation	≤ 0.5%
	Pressure range	≤ 42 Mpa for 316L pump head ≤ 30 Mpa for PEEK pump head
	Pipeline connection	1/16” standard pipeline connection
	Display parameters	OLED graphic display
	Control	Instrument panel control or computer anti-control
	Power supply	100～240VAC, power: 75W
LC1620A UV Detector	Specifications:
	Lamp	Deuterium or halogen lamp selectable
	Detection system	Single or dual-wavelength mode selectable
	Wavelength range	190-700nm Increment: 1nm
	Wavelength accuracy	1nm
	Wavelength precision	±0.1nm
	Volume of flow cell	10μl
	Detect range	0-2Au
	Baseline noise	±0.5×10-5 AU
	Baseline drift	2×10-4 AU
	Detection Limit	4×10-9 g/ml(Naphthalene/methyl alcohol solvent)
	Pipeline connection	1/16” standard pipeline connection
	Display parameters	OLED graphic display
	Control	Instrument panel control or computer anti-control
	Power supply	100～240VAC, power: 80W
