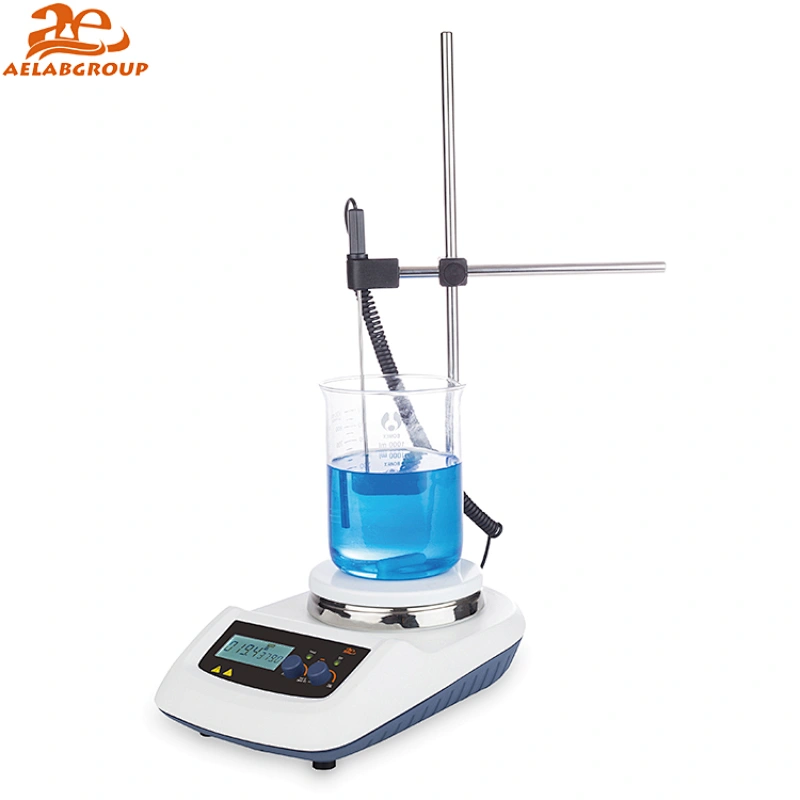

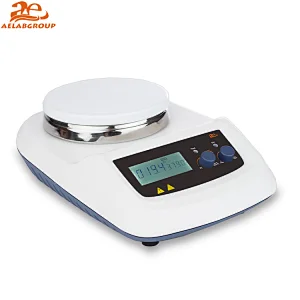

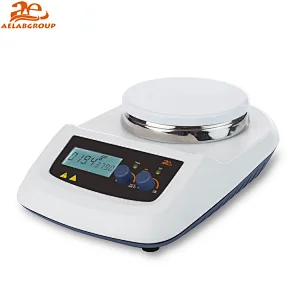

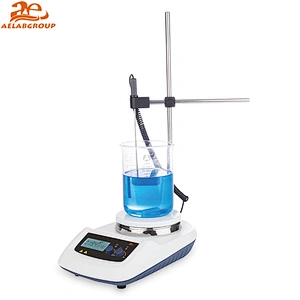

AELAB Hotplate Stirrer AHO-101

Model NO.: AHO-101

+ LCD/LED Digital control of speed and temperature.
+ Maintenance free brushless DC motor.
+ RS232 interface enables data preservation and transmission and control through a PC.
+ Speed setting range from 0-1500rpm.
+ RS232 interface provides PC control and data transmission.
+ Ceramic work plate with max. temperature of 340°C.

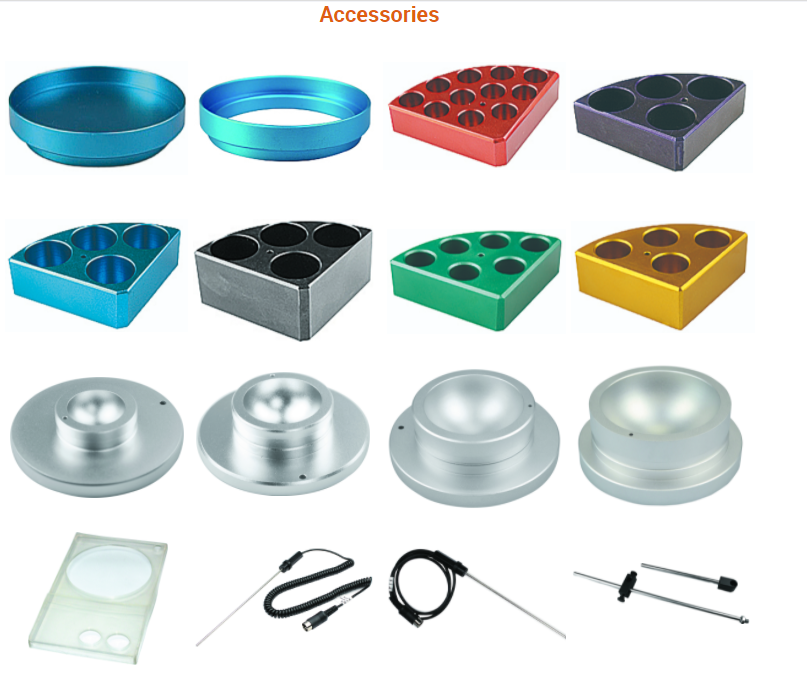

+ Various optional accessories make it suitable for many applications.
+“Hot” warning safety indication on LED when the plate temperature exceeds above 50°C.
+ PT1000 external temperature sensor for precise temperature control accuracy of ±0.2°C.

Quantity:

Product Description

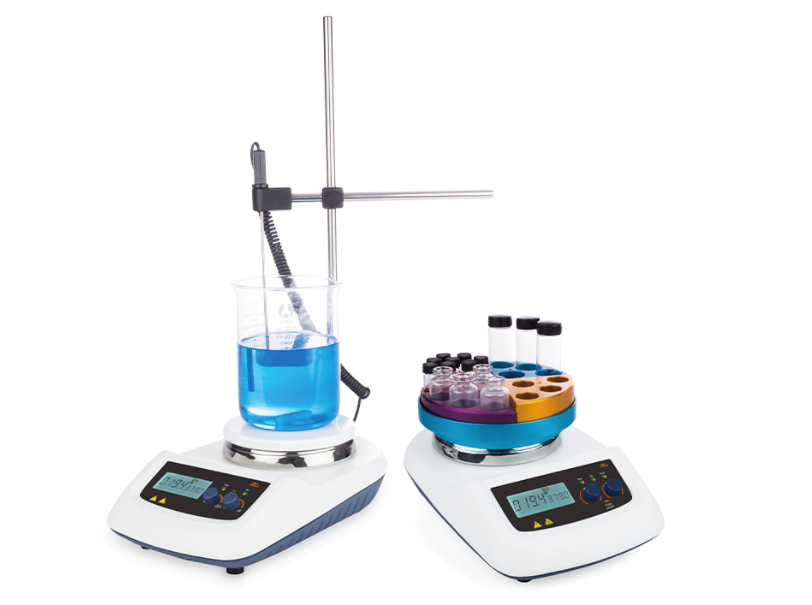

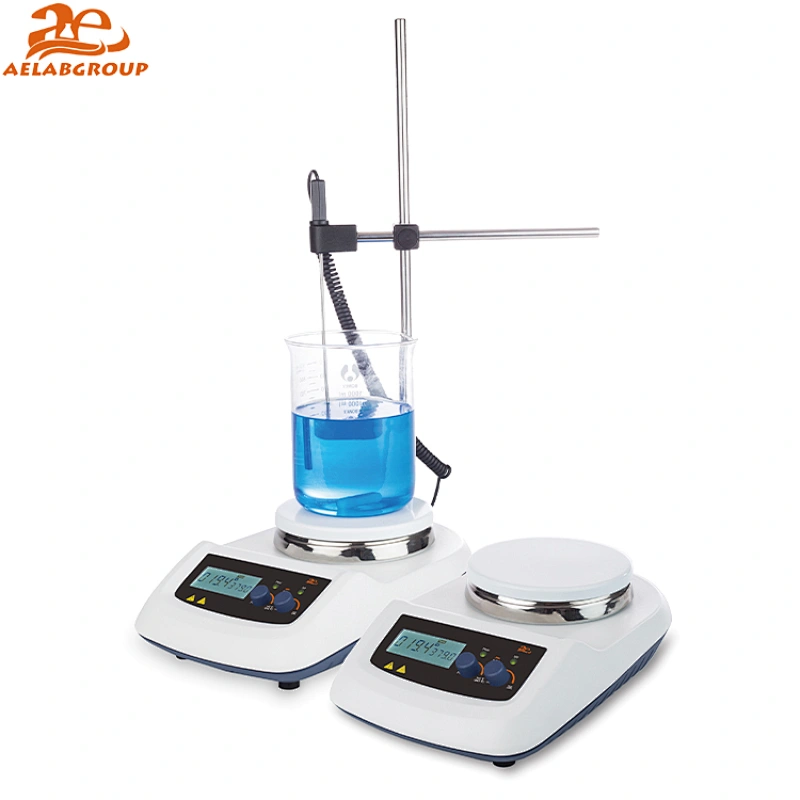

AELAB Hotplate Stirrer AHO-101
These magnetic stirrers deliver powerful, smooth mixing and safe heating. These are useful in biological, physical, chemical, pharmaceutical laboratories, etc.

Features:
+ LCD/LED Digital control of speed and temperature.
+ Maintenance free brushless DC motor.
+ RS232 interface enables data preservation and transmission and control through a PC.
+ Speed setting range from 0-1500rpm.
+ RS232 interface provides PC control and data transmission.
+ Ceramic work plate with max. temperature of 340°C.
+ Various optional accessories make it suitable for many applications.
+“Hot” warning safety indication on LED when the plate temperature exceeds above 50°C.
+ PT1000 external temperature sensor for precise temperature control accuracy of ±0.2°C.

Technical Specifications:

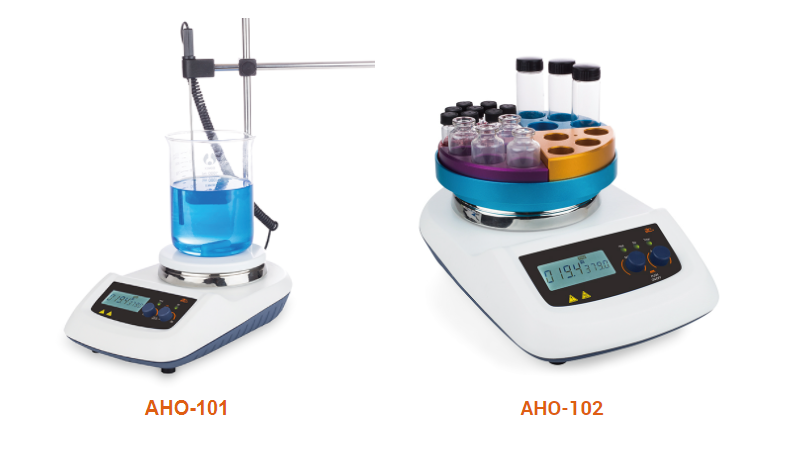

Model	AHO-101	AHO-102	ASC-201	ASC-202
Type	Hotplate Stirrer	Hotplate Stirrer	Stirrer	Hotplate Stirrer
Work plate dimension	φ135mm(5 inch)
Work plate material	stainless steel cover with ceramic
Motor type	Brushless DC motor
Motor rating input	18W			5W
Motor rating output	10W			3W
Power	550W			515W
Heating output	500W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity[H2O]	20L			3L
Max. magnetic bar[length]	80mm			50mm
Speed range	100-1500rpm		0-1500rpm	200-1500rpm
Speed display	LCD		Scale	LED
Temperature display	LCD		Scale	LED
Heating temperature range	Room temp.-340°C, increment 1°C			Room temp.-280, increment 1°C
Temperature control accuracy	±1°C(<100°C),±1%(>100°C)		---	±1°C(<100°C) ±1%(>100°C)
Over temperature protection	420°C				320°C
Temperature display accuracy	±0.1°C	±0.1°C	±0.5°C	±1°C
External temperature sensor	PT1000 (accuracy ±0.2)		----		PT1000 (accuracy ±0.2)
"Hot"warning	50°C	50°C	-	50°C
Data connector	RS232	RS232	-	RS232
Protection class	IP42	IP42	IP42	IP21
Timer function	-	1min to 99h 59min	---	---
Dimension[WxDxH]	160×280×85mm
Weight	2.8kg
Permissible ambient temperature and humidity	5-40°C, 80%RH
