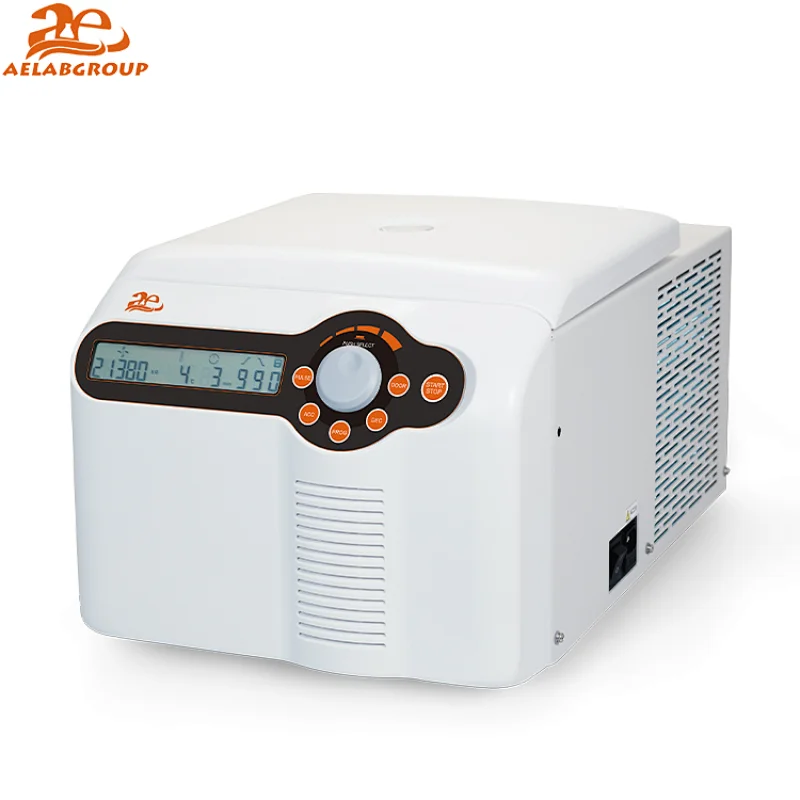

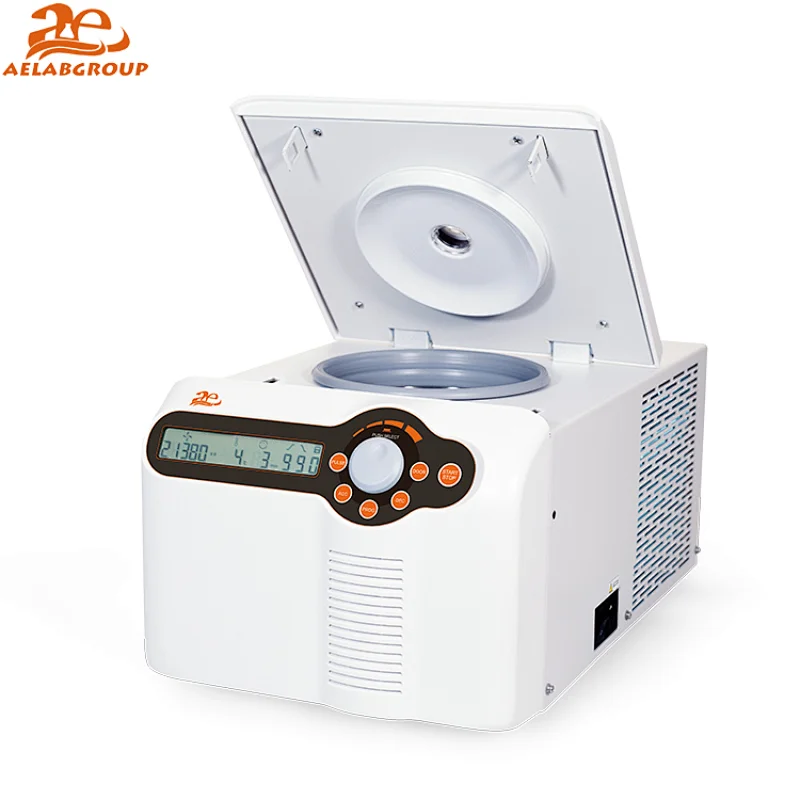

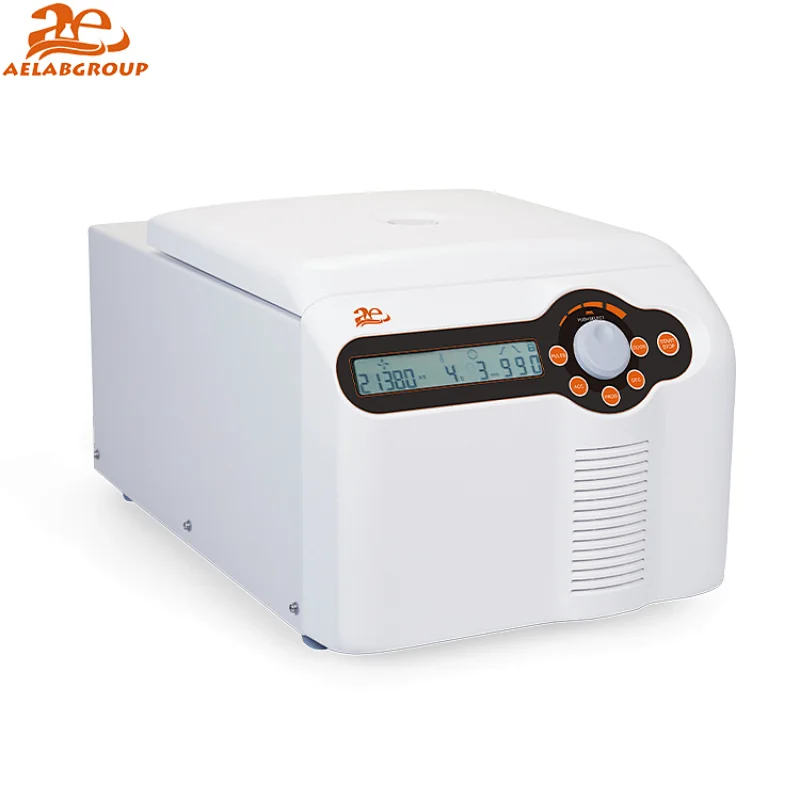

AELAB High-speed Refrigerated Micro Centrifuge Hematocrit centrifuge with AC24P hematocrit rotor is used for determination of volume fractions of erythrocytes in blood for diagnostic purposes and doping tests. Also it is used for the photometric determination of bilirubin content in neonate blood samples. Hematocrit centrifuge with A24-2P tube rotor, can be used for extraction of DNA and RNA.
Features: + Centrifuge chamber door with automatic adsorption door lock design, can be closed with a single finger. + Precooling, the compressor will automatically start cooling as long as the set temperature is lower than the ambient temperature. + Sound indicator to prompt that the upper cover is closed to maintain the temperature + inside the chamber, after centrifugation. + Advanced R290 fluorine free refrigerant, low carbon and environmental protection. + Maximum rotation speed can be achieved even at 4℃. + Up to 9 program storage capacity according to experimental needs. + Biosafety rotor, three-layer seal for biosafety + High-strength aluminum alloy, three layered biosafety to withstand numerous high temperature and high pressure sterilizations. + Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity. + An external condensation tank prevents condensate within the centrifuge chamber.
Technical Specifications:
Specifications
AE-HRC-15
Max. Speed
15,000rpm (200-15,000rpm) in 100rpm increments.
Max. RCF
21,380×g, step: 10×g
Capacity
1.5/2mL×24, 0.5mL×36, PCR8×4, 5mL×12, 5mL×18.
Temperature setting
-20℃- 40℃
Timing
30s-99 min; HOLD (continuous running)
Motor Type
DC brushless motor
Safety Performance
Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system.
Power Requirements
Single phase, 200-240V, 50Hz, 500W
Dimensions(mm)
332(Width) × 553(depth) × 283(height)
Weight
30kg
Acceleration and deceleration time
25s↑25s↓
Noise
≤56dB
Other functions
Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Acceleration/ deceleration in 9 steps, program storage capacity.
