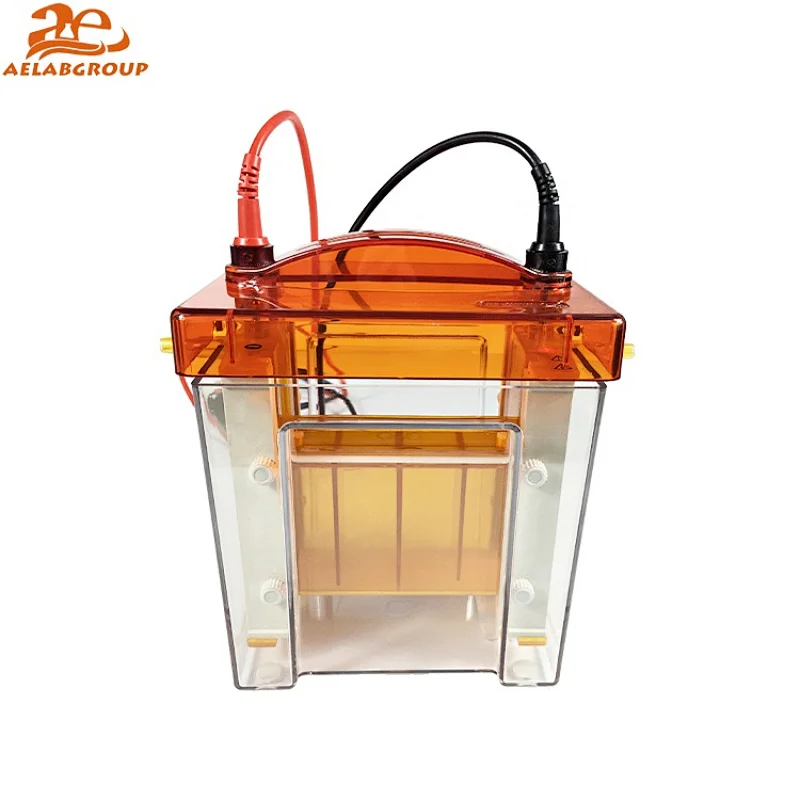

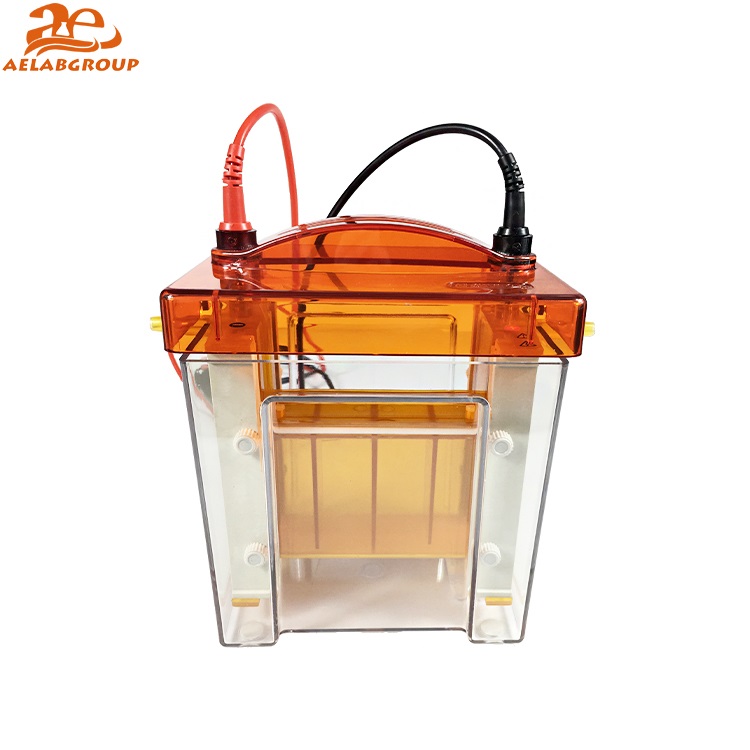

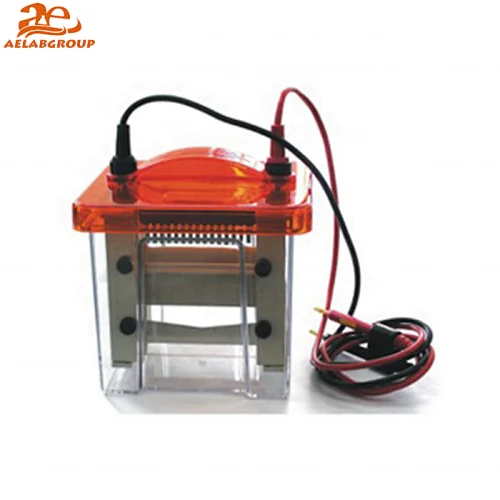

AELAB Gel Genomic DNA Protein Vertical Electrophoresis Tank AE-verMINI
AELAB Gel Genomic DNA Protein Vertical Electrophoresis Tank AE-verMINI

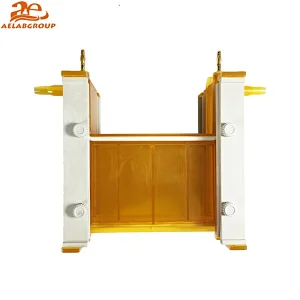

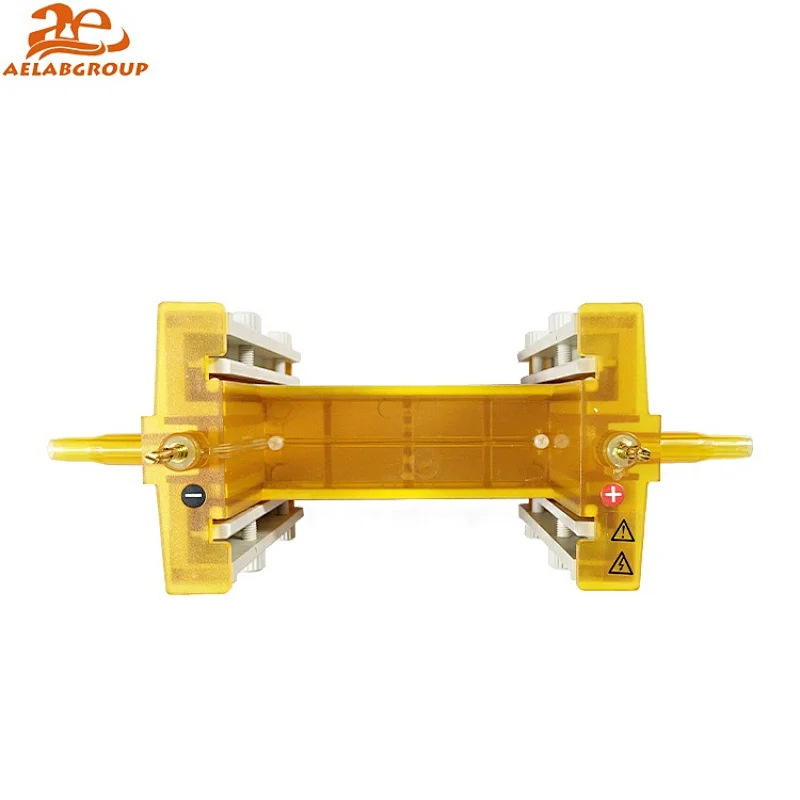

AE-verMINI cell is dual vertical electrophoresis system performs vertical gel electrophoresis on mini-format gels. The basic unit includes electrophoresis modules, casting stand and glass plates with permanently bonded gel spacers that simplify hand casting and eliminate leaking during casting, Each module holds one gel sandwich, 10 cm wide and up to 10.5 cm long. One gel can be cast in place on each electrophoresis module.
Technial Specifications:
AELAB Gel Genomic DNA Protein Vertical Electrophoresis Tank AE-verMINI
AE-verMINI cell is dual vertical electrophoresis system performs vertical gel electrophoresis on mini-format gels. The basic unit includes electrophoresis modules, casting stand and glass plates with permanently bonded gel spacers that simplify hand casting and eliminate leaking during casting, Each module holds one gel sandwich, 10 cm wide and up to 10.5 cm long. One gel can be cast in place on each electrophoresis module.
Technial Specifications:
| Model | AE-verMINI |
| Dimensions ( LxWxH) | 160x150x160mm |
| Gel size (WxH) | Standard configuration: 83x97mm Optional: 83x73mm |
| Prefabricated plastic | Compatible with Pierce, Invitrogen and Bio-rad precast gels |
| Glue quantity | 1 to 2 |
| On slot buffer | 200ml |
| The following slot buffer | 800ml |
| Comb specifications | 1.0mm thick, 9, 10, 15 and 18 well;0.75mm thick,10 and 15 well; 1.5mm thick,10 and 15 well |
| Recommended Power | AE-Power600/600i/300 |
| Net weight | 2.5kg |
