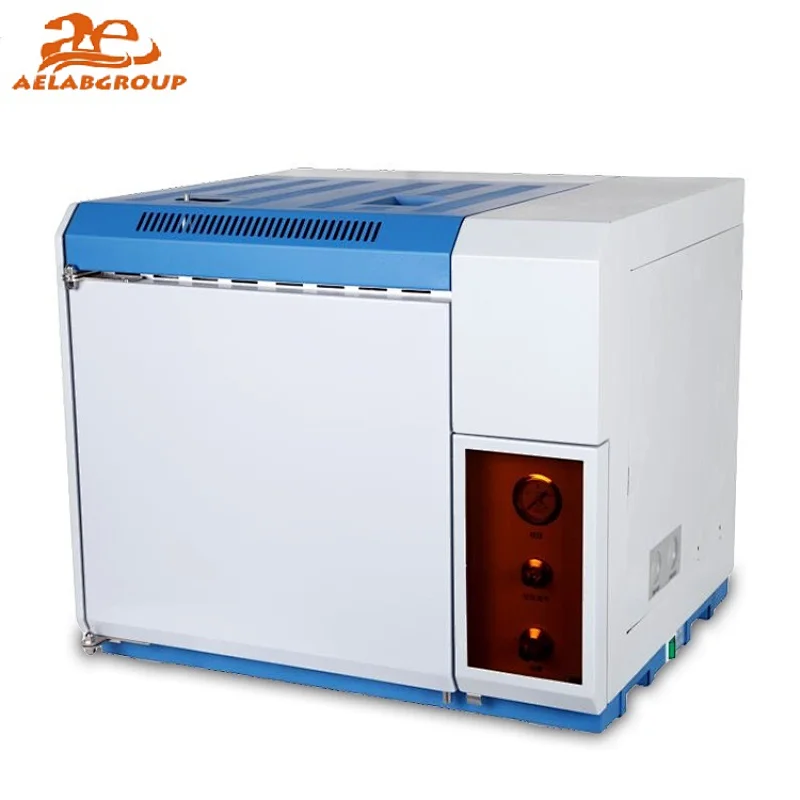

AELAB Gas Chromatograph GC102AF

Model NO.: GC102AF
Minimum order quantity:: 1

+ PC control, user-friendly interface, and easy to operate.
+ Temperature control is of high accuracy (better than ±0.1℃). Heating speed is fast and overshoot temperature is small.
+ Self-diagnosis, power protection, oven over-temperature protection, and automatic ignition.
+ It can accurately display the temperature control settings, actual value, and FID amplifier sensitivity.
+ The single gas system and precise scale pneumatic control valve contribute to excellent reproducibility and stability and can perform analysis of packed column.
+ Packed column: on-column injection, instantaneous vaporization injection, gas injection.
+ Open computer system and NJ2000 chromatography workstation can work together to process data.
+ Large capacity oven (300mm×280mm×270mm) facilitates the installation of packed column.
+ Built-in heating wire structure

Quantity:

Product Description
Brochure

Gas Chromatograph GC102AF
As a new generation instrument, GC102AF Gas Chromatograph applies the computer reverse control technology and canconduct remote detection and fault diagnosis, equipped with a flame ionization detector (FID).

Features:

+ PC control, user-friendly interface, and easy to operate.

+ Temperature control is of high accuracy (better than ±0.1℃). Heating speed is fast and overshoot temperature is small.

+ Self-diagnosis, power protection, oven over-temperature protection, and automatic ignition.

+ It can accurately display the temperature control settings, actual value, and FID amplifier sensitivity.

+ The single gas system and precise scale pneumatic control valve contribute to excellent reproducibility and stability and can perform analysis of packed column.

+ Packed column: on-column injection, instantaneous vaporization injection, gas injection.

+ Open computer system and NJ2000 chromatography workstation can work together to process data.

+ Large capacity oven (300mm×280mm×270mm) facilitates the installation of packed column.

+ Built-in heating wire structure.

Temperature Control:
+ Temperature area: column oven, sampler, detector

+ Temperature range: 15℃~399℃above room temperature (increment: 1℃)

+ Temperature accuracy: better than ±0.1℃(measured at 200℃)

Flame Ionization Detector (FID) :

+ Detection limit: Dt≤1×10-10 g/s (octane and hexadecane)

+ Baseline drift: ≤2×10-12 A/h

+ Linear range: ≥106

+ Max. limit temperature: 400℃

+ Voltage: 220V~±22V 50Hz±0.5Hz
