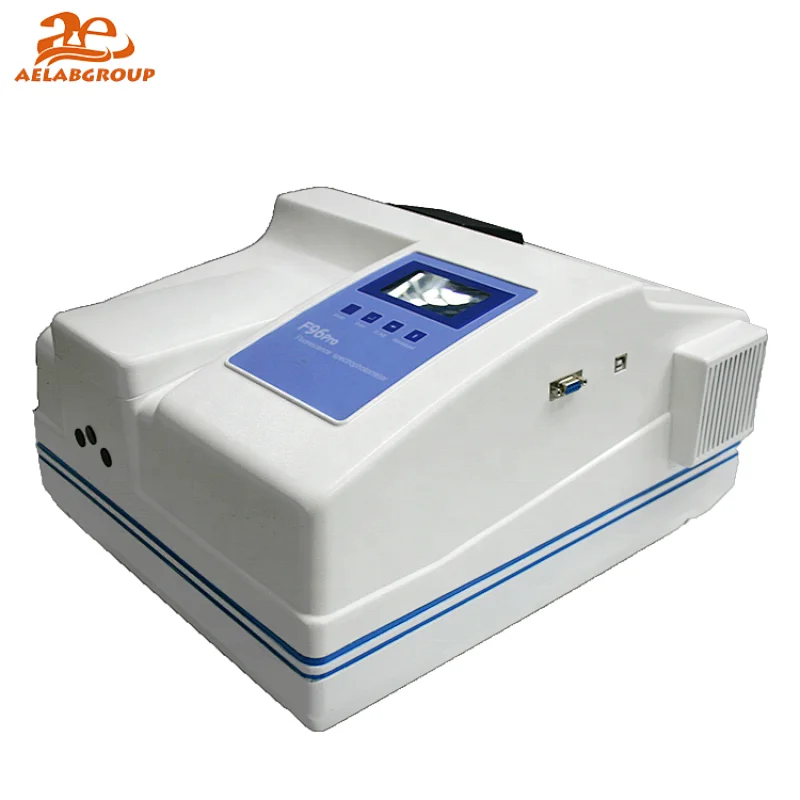

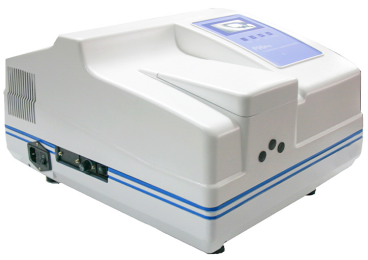

AELAB Fluorescence Spectrophotometer F96PRO
AELAB Fluorescence Spectrophotometer F96PRO
AELAB Fluorescence Spectrophotometer F96PRO
AELAB Fluorescence Spectrophotometer F96PRO
AELAB Fluorescence Spectrophotometer F96PRO
AELAB Fluorescence Spectrophotometer F96PRO
AELAB Fluorescence Spectrophotometer F96PRO
AELAB Fluorescence Spectrophotometer F96PRO
AELAB Fluorescence Spectrophotometer F96PRO

AELAB Fluorescence Spectrophotometer F96PRO

Model NO.
F96 PRO
Minimum order quantity:
1
+ Two operation mode could be chosen: fluorescence intensity and luminous intensity. Fluorescence scanning, kinetic determination and quantity analysis could be done under fluorescence intensity mode.
+ 365nm exciting wavelength Raman peak of water in 1 cm quartz fluorescence cuvette S/N≥150 High performance sensitivity simplifies the measurement of low detective sample.
+ 10 stages gain adjustment could be chosen for emission spectrum scanning, including high speed low S/N scanning and precise scanning. Total spectrum scanning could be done in 1 second. With the intelligent pre scanning feature, unknown sample's spectrum information could be detected rapidly. Auto-omission of the influence of scattering peak and harmonic peaks, it ensure the best measurement parameters and locate the fluorescence emission peak.
+Support off-line mode and on-line mode. Under off-line mode, instrument's computer system offer the fluorescence intensity measurement, concentration direct reading, auto 0 adjustment, auto background subtraction and etc. Under on-line mode, we could use quality and quantity software to control data acquisition and analysis through USB2.0 interface.
+ High stable and long life 150W xenon lamp and power source ensure high stable testing and wide range of spectrum.
+ The normalized feature for fluorescence value could make different fluorescence's result comparable.
+ Provide optional PC qualitative and quantitative software package with expansible time scanning, wavelength scanning, graphic calculation and storage-access abilities。
+ Optional accessories for different measurement, including single hole cell holder, fluorescence sample holder for different features, 200μl micro scale centrifuge tube, micro scale capillary sample holder, semi-auto sample introduction accessories, membrane sample accessories, powder sample accessories, jacket sample accessories and etc.
Quantity:

AELAB Fluorescence Spectrophotometer F96PRO

Features:
+ Two operation mode could be chosen: fluorescence intensity and luminous intensity. Fluorescence scanning, kinetic determination and quantity analysis could be done under fluorescence intensity mode.
+ 365nm exciting wavelength  Raman peak of water in 1 cm quartz fluorescence cuvette S/N≥150 High performance sensitivity simplifies the measurement of low detective sample.
+ 10 stages gain adjustment could be chosen for emission spectrum scanning, including high speed low S/N scanning and precise scanning. Total spectrum scanning could be done in 1 second. With the intelligent pre scanning feature, unknown sample's spectrum information could be detected rapidly. Auto-omission of the influence of scattering peak and harmonic peaks, it ensure the best  measurement parameters and locate the fluorescence emission peak.
+Support off-line mode and on-line mode. Under off-line mode, instrument's computer system offer the fluorescence intensity measurement, concentration direct reading, auto 0 adjustment, auto background subtraction and etc. Under on-line mode, we could use quality and quantity software to control data acquisition and analysis through USB2.0 interface.
+ High stable and long life 150W xenon lamp and power source ensure high stable testing and wide range of spectrum.
+ The normalized feature for fluorescence value could make different fluorescence's result comparable.
+ Provide optional PC qualitative and quantitative software package with expansible time scanning, wavelength scanning, graphic calculation and storage-access abilities。
+ Optional accessories for different measurement, including single hole cell holder, fluorescence sample holder for different features, 200μl micro scale centrifuge tube, micro scale capillary sample holder, semi-auto sample introduction accessories, membrane sample accessories, powder sample accessories, jacket sample accessories and etc.


Technical Specification :
Dimension  LWH550×510×365
Weight(Kg)11(N) 13(G)
Exciting optical filtersInterference optical filter
Standard set is equipped with an interference optical filter of central wavelength at 365nm and 10nm bandwidth
An optional interference optical filer of 25mm diameter of wavelength of 250-700 nm can be provided on users demand.
SensitivityRaman peak of water in 1 cm quartz fluorescence cuvette with S/N≥150
Linear measurement(r)≥0.995
Stabilitybetter than 1.5%/10min
Response time(0.1-4)s 6 stages adjustable
Fluorescence display value0.00-600.00
Data transmissionUSB2.0
Power220V±22V 50Hz±1Hz
Package Dimensions380 x440 x240 mm 0.04M3
G.W.14Kg
Emission monochromator3C-T diffraction gratingEm 200~900nmbandwidth 10nmWavelength accuracy±1nm Wavelength repeatability ≤0.5nm
Wavelength accuracy±1nm
Wavelength repeatability≤0.5nm
Data transmissionUSB2.0

Main instrument1 set
365nm filter(Preassembled)1 pc
F96PRO software package1 set
Power cable1 pc
USB wire1 pc
Instruction manual1 copy
Product quality certificate1 copy
Fuse2A2 pcs
Fuse5A2 pcs
Quartz fluorescence sample cell10mm1 pair
Packing list1 copy
