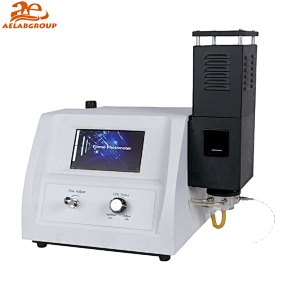

AELAB Flame Photometer AE-FP6450 AE-FP6440 AE-FP6431 AE-FP6430 AE-FP6410 AE-FP640
AELAB Flame photometer is a newly designed instrument. It has the advantages of small size, convenient operation, stability and reliability.
The host uses a 7-inch color capacitive touch LCD screen,It can store up to 200 sets of test data of the standard curve with a set of 10 points.
The FP series flame photometer uses liquefied gas as fuel gas.
Features:
+ 7- inch color touch- screen
+ Direct concentration display
+ Automatic calculation of correlation coefficient
+ Pre-selection of flame sizes
+ Flameout protection device
+ Measuring range changing
+ Concentration units selectable
+ Multilingual user interface
+ Air compressor provide
Technical Specifications:
Machine Details:
AELAB Flame photometer is a newly designed instrument. It has the advantages of small size, convenient operation, stability and reliability.
The host uses a 7-inch color capacitive touch LCD screen,It can store up to 200 sets of test data of the standard curve with a set of 10 points.
The FP series flame photometer uses liquefied gas as fuel gas.
Features:
+ 7- inch color touch- screen
+ Direct concentration display
+ Automatic calculation of correlation coefficient
+ Pre-selection of flame sizes
+ Flameout protection device
+ Measuring range changing
+ Concentration units selectable
+ Multilingual user interface
+ Air compressor provide
| Mode | AE-FP6450 | AE-FP6440 | AE-FP6431 | AE-FP6430 | AE-FP6410 | AE-FP640 | ||||
| Operation Mode | 7 inch color touch screen | |||||||||
| Display Value | Concentration value | Optical Power | ||||||||
| Data Range | 0.000~999.9 | 000.0~999.9 | 0000~9999 | |||||||
| Testable | K,Na,Li, Ca, Ba | K,Na,Li,Ca | K,Na,Ca | K,Na,Li | K, Na | K,Na | ||||
| Channel Qty | 5 | 4 | 3 | 3 | 2 | 2 | ||||
Range (ppm) | K | 0-100ppm | ||||||||
| Na | 0-160ppm | |||||||||
| Li | 0-100 | 0-100 | --- | 0-100 | --- | --- | ||||
| Ca | 0-1000 | 0-1000 | 0-1000 | --- | --- | --- | ||||
| Ba | 0-3000 | --- | --- | --- | --- | --- | ||||
LOD (ppm) | K | 0.01 | ||||||||
| Na | 0.01 | |||||||||
| Li | 0.1 | 0.1 | --- | 0.1 | --- | --- | ||||
| Ca | 2 | 2 | 2 | --- | --- | --- | ||||
| Ba | 6 | --- | --- | --- | --- | --- | ||||
Linearity Error | K | 0.195 | ||||||||
| Na | 0.69 | |||||||||
| Li | 0.15 | 0.15 | --- | 0.15 | --- | |||||
| Ca | 3 | 3 | --- | --- | --- | |||||
| Ba | 9 | --- | --- | --- | --- | --- | ||||
| Standard Accessories | Air compressor | |||||||||
| Curve Graph | Display | --- | --- | |||||||
| Printer & USB | Thermal printer, USB interface | --- | ||||||||
| Repeatability | <3 % CV for 7 consecutive samples | |||||||||
| Fuel | LPG (Liquefied petroleum gas) | |||||||||
| Response Time | <8s | |||||||||
| Sample Uptake | <6ml/min | |||||||||
| Ambient Temp | 10 ℃~35℃, humidity ≤85% | |||||||||
| Power Supply | AC220V±22V 50±1 Hz, 250W | |||||||||
| Power Supply | 110V/220±10% ,60/50Hz | |||||||||
| Packing Size | 580*540*400mm,18kg | |||||||||
