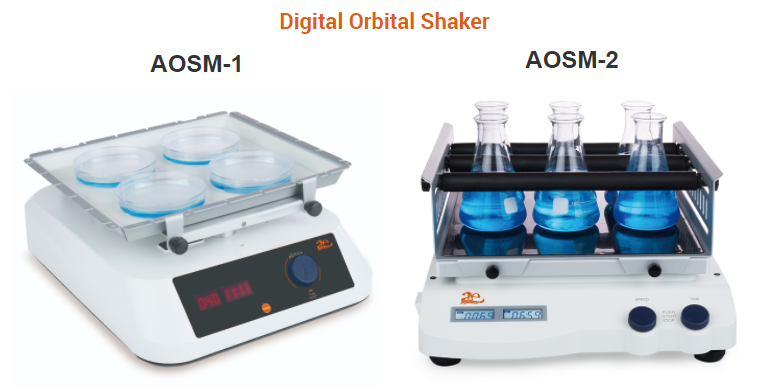

AELAB Digital Orbital Shakers A0SM-1
Orbital shakers with a variety of accessories are suitable for use in different laboratories in microbiology, chemistry, biochemistry and molecular biology in applications like drug analysis, ELISA, Enzyme immunoassays, protein synthesis, etc.,
Features:
+ Load capacity up to 3Kg with platform.
+ Independent LED digital control of speed and time.
+ Light in weight with low maintenance DC motor.
+ Programmable speed ranges from 40-200rpm.

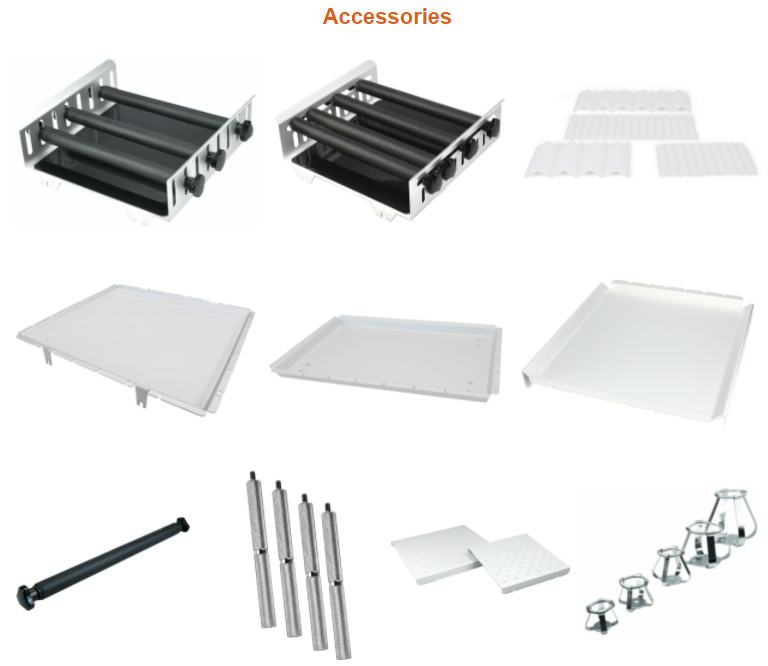

+ Variety of accessories suitable for most commonly used vessels.
Technical Specifications:
Orbital shakers with a variety of accessories are suitable for use in different laboratories in microbiology, chemistry, biochemistry and molecular biology in applications like drug analysis, ELISA, Enzyme immunoassays, protein synthesis, etc.,
Features:
+ Load capacity up to 3Kg with platform.
+ Independent LED digital control of speed and time.
+ Light in weight with low maintenance DC motor.
+ Programmable speed ranges from 40-200rpm.
+ Variety of accessories suitable for most commonly used vessels.
Technical Specifications:
| Model | AOS-1 | AOS-2 | A0SM-1 | A0SM-2 |
| Orbital diamter /Amplitude | 10mm | 20mm | 10mm | |
| Max.load capacity (with platform) | 7.5kg | 3kg | 3kg | 7.5kg |
| Motor type | Brushless DC motor | |||
| Motor input power | 28W | 20W | 16W | 28W |
| Motor output power | 15W | 15W | 10W | 15W |
| Speed range | 100-500rpm | 70-400rpm | 70-200rpm | 100-350rpm |
| Speed display | LCD | LCD | LED | LCD |
| Timer display | LCD | LCD | LED | LCD |
| Time setting range | 1min-19h59min | 1-1199min | 1min-19h59min | |
| Voltage | 100-240V, 50/60Hz | |||
| Power | 30W | 25W | 20W | 30W |
| Weight | 12.5kg | 9.8kg | 3.1kg | 13.5kg |
| Ambient temperature and humidity | 5-40℃, 80% | |||
| Dimensions (WxDxH) | 370x420x100mm | 420X370X100mm | 330x270x110mm | 420X370X100mm |
| Protection class | IP21 | |||
| Data connector | RS232 | --- | ||
