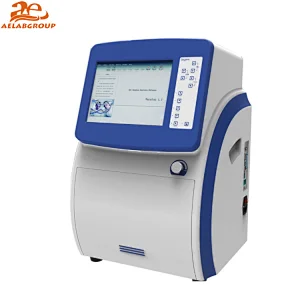

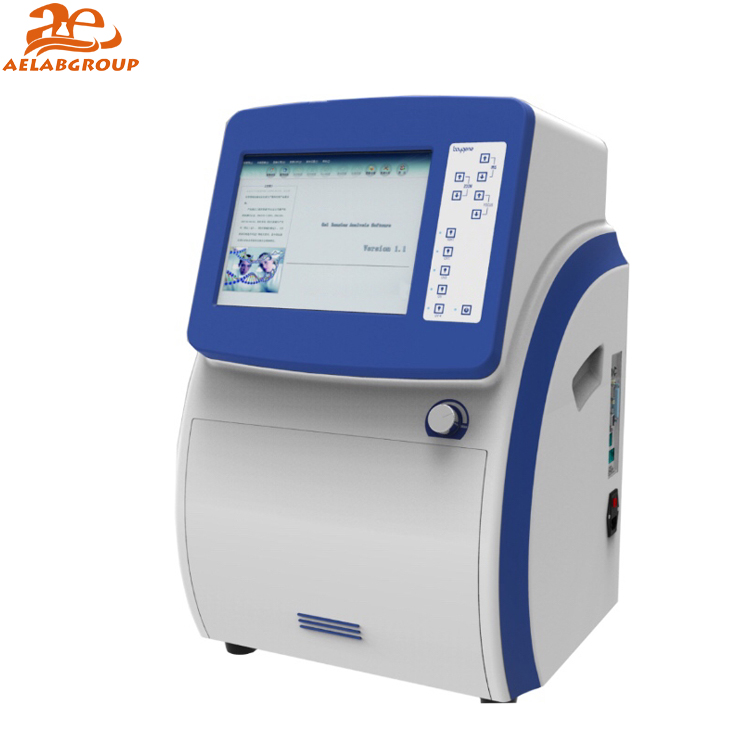

AELAB DNA and RNA Gel Document Imaging System AE-gdsAUTO520
The integrated gel imaging analysis system designed for blue light detection and analysis can realize detection, imaging and analysis storage functions without any external device. Compatible fluorescent dyes are GeneFinderTM, GeneGreen, GelRed, GelGreen, SYBR Green I, SYBR Safe, Goldview, SYBR Gold, SYPRO Ruby, SYPRO Orange, SYPRO Tangerine, eGFP, Cy2, FITC, etc.
Technial Specifications:
The integrated gel imaging analysis system designed for blue light detection and analysis can realize detection, imaging and analysis storage functions without any external device. Compatible fluorescent dyes are GeneFinderTM, GeneGreen, GelRed, GelGreen, SYBR Green I, SYBR Safe, Goldview, SYBR Gold, SYPRO Ruby, SYPRO Orange, SYPRO Tangerine, eGFP, Cy2, FITC, etc.
Technial Specifications:
| Model | AE-gdsAUTO320 | AE-gdsAUTO520 | |
| Camera | Resolution | 1280×1024(1.31 million) | 2592×1944(5.03million) |
| Pixel size | 5.2μm×5.2μm | ||
| Signal to noise ratio | 56dB | ||
| Detection sensitivity | Nucleic acid as low as 20pg | ||
| Lens | Electric lens | High transparency automatic zoom lens, F1.2, 8-48mm | |
| Filter | Professional grade coating filter UV/IR 590nm, optional: 535/605/699nm | ||
| Light source | Light intensity | up to 1000 microns /m³ | |
| Lighting mode | uv transmission, white light transmission (uv conversion white plate), white light reflection | ||
| Excitation light source | transmission: 312nm (optional 254nm and 365nm) | ||
| Bilateral reflection | LED reflection white light lamp | ||
| UV transmission area | 200×250mm | ||
| Visible light transmission area | 210×260mm | ||
| Equipped with glue cutting device | drawer type sample storage platform, the line of sight is 90° with the sample, which can protect the operator and facilitate the operation of glue cutting | ||
| Timed shutdown | turn off the uv light source for 15 minutes without operation, effectively extending the service life of the uv lamp and the uv glass | ||
| All-in-one machine design | it can be controlled by computer or cabinet panel, and can fully control zoom, focus, aperture, transmission ultraviolet lamp and reflection lamp | ||
| Airborne display screen | 12.1-inch industrial control touch LCD | ||
| Analysis software | customized software Baygene Gel Image Analysis | ||
| All-in-one machine design: it can be controlled by computer or cabinet panel, and can fully control zoom, focus, aperture, transmission ultraviolet lamp and reflection lamp | |||
| High-performance low-power I3 processor, dual-core four-thread 1.8g, solid state drive 128G, 4G memory, Windows10 system | |||
| With standard Internet port, USB, COM, VGA, keyboard and mouse, no need to have a computer | |||
