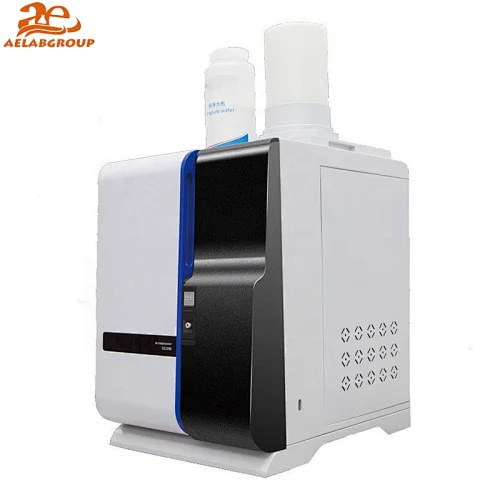

AELAB CIC-D160 Ion ChromatographFeatures:+ Built-in eluent generator, free from configuring eluent, with gradient elution available;
+ Modular manufacturing process to maintain excellent systemic stability;
+ Built-in low-pressure degassing technology to eliminate bubble interference for more stability;
+ Optional intelligent automatic injection system for large sample volumes, which features automatic dilution to save labor and time;Work across a variety of detectors, to expand the scope of applications of ion chromatography.
Technical Parameter:
Ion Chromatographic Pump | Type | High-pressure and low-pulse two-piston tandem advection pump |
Maximum Pressure | 42 MPa |
Pressure Display Accuracy | ≤0.1MPa |
Flow Stability | (0.2-0.5)mL/min≤3%; (0.5-1.0)mL/min≤2%; >1.0mL/min≤2%; |
Flow Range | 0.001~9.999mL/min |
Pressure Pulse | ≤0.5% |
Flow Precision | ≤0.1% |
Flow Accuracy | ≤0.1% |
Digital and Temperature -control Detection System |
Conductivity Detector | Type | Temperature-control and bipolar conductivity detector |
Detection Mode | Bipolar conductivity detection |
Cell Volume | ≤0.8μL |
Detection Range | 0~50000μS/cm |
Detection Resolution | ≤0.0020nS/cm |
Output Voltage | -6000~+6000mV (adjustable) |
Electronic Noise | 0.02nS |
Baseline Noise | 0.0005μS/cm |
Baseline Drift | 0.005μS/cm |
Operating Temperature Range | Room temperature +5~60℃(41 ~140℉) |
| | Controlling Temperature Accuracy | ±0.01℃ |
Maximum Pressure | 10MPa |
Linear Range | ≥105 |
Instrument Linearity | ≥0.999 |
Quantitative Repeatability | ≤0.5% |
Qualitative Repeatability | ≤0.2% |
Minimum Detectable Concentration | Cl-≤0.0001ug/mL; |
Suppressor | Type | Self-Regenerating electrolytic micro-membrane suppressor |
Maximum Pressure | 6.0MPa |
Dead Volume | <50μL |
Flow System | Plastic Flow Path | Made of PEEK materials |
Six-way Valve | PEEK material, pressure 5000psi;Independent automatic collecting and flow function. |
Built-in Eluent Generator | Eluent Types | KOH/MSA |
Eluent Concentration Range | 0.1-100mM |
Concentration Increment | 0.1mM |
Flow Rate Range | 0.1-5.0mL/min |
Maximum Pressure | 30MPa |
Minimum Pressure | 5MPa |
Accuracy of Gradient | 0.15% |
Power Supply | 150W |
External Size(L*W*H*) | 350*470*650 (mm) |
Net Weight(KG) | 34 |
Gross Weight(KG) | 40 |
