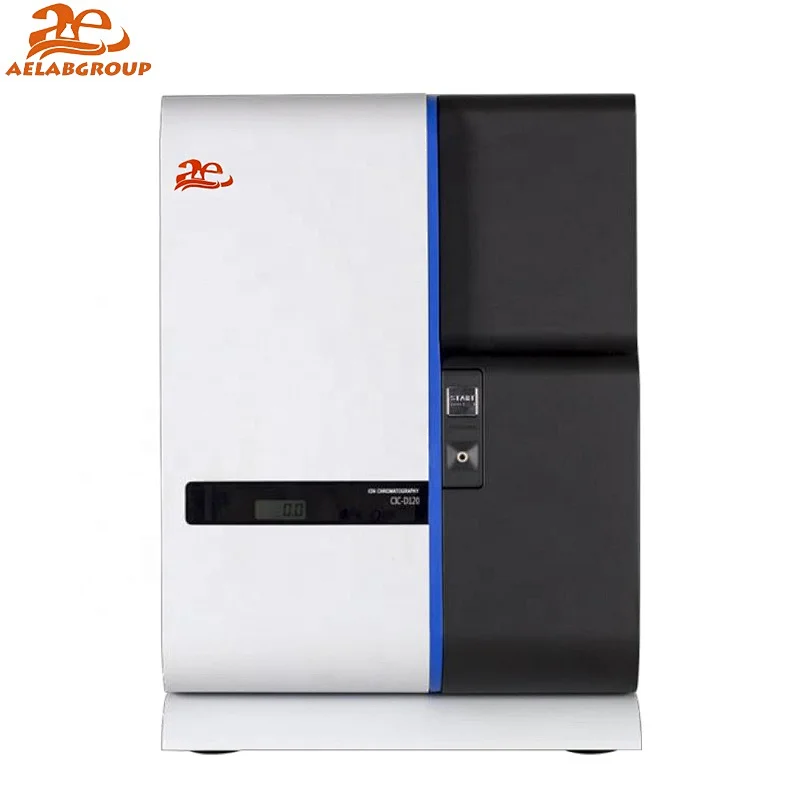

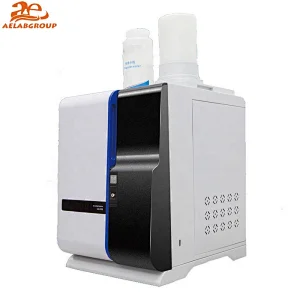

AELAB CIC-D120 Ion ChromatographFeatures:+ Temperature-control bipolar conductivity detector Greater detection range,better precise analysis.
+ Built-in circulating 3D constant temperature technology Temperature stability time is less than 30 mins, ensuring the accuracy and reliability of test data
+ The world's leading full-range series of ion chromatographic columns High efficiency, large capacity of the columns for detecting ions of varied compositions
+ Self-Regenerating Electrolytic Micro-membrane Suppressor.
+ High pressure resistance, small dead volume, highly responsive to signals
+ Able to detect anions and cations at the ppb level
+ Work across a variety of detectors, to expand the scope of applications of ion chromatography.
Technical Parameter:+ Built-in circulating 3D constant temperature technology Temperature stability time is less than 30 mins, ensuring the accuracy and reliability of test data.+ The world's leading full-range series of ion chromatographic columns.
+ High efficiency, large capacity of the columns for detecting ions of varied compositions.
+ Self-Regenerating Electrolytic Micro-membrane Suppressor High pressure resistance, small dead volume, highly responsive to signals.
+ Auto-range Conductivity Detector
+ It can directly detect the signal from ppb to ppm without adjusting the range; Only one conductivity detector can detect anions and cations.
+ Observatory intelligent workstation
+ Integrated control; With intelligent start-up, shutdown andmaintenance functions; Compatible with a variety of instruments; Customized images.
Technical Parameter:
Ion Chromatographic Pump | Type | High-pressure and low-pulse two-piston tandem advection pump |
| Maximum Pressure | 42MPa |
| Pressure Display Accuracy | ≤0.1MPa |
| Flow Stability | (0.2-0.5)mL/min≤3%; (0.5-1.0)mL/min≤2%;
＞1.0mL/min≤2%; |
| Allowable Deviation of Flow | (0.2-0.5)mL/min , ±5%; (0.5-1.0)mL/min, ±3%;
＞1.0mL/min, ±2%; |
| Flow Range | 0.001~9.999mL/min |
| Pressure Pulse | ≤0.5% |
| Flow Precision | ≤0.1% |
| Flow Accuracy | ≤0.1% |
| Numerical-control and Electromagnetic Sample Injector | Maximum Pressure | 35MPa |
| Contact Material of the Rotor | PEEK |
| Control Mode | By Stepper motor |
| Power Supply | 24V (DC) |
Suppressor | Type | Self-Regenerating electrolytic
micro-membrane suppressor |
| Maximum Pressure | 6.0MPa |
| Dead Volume | <50μL |
Digital and Temperature- control Detection System |
Conductivity Detector | Type | Temperature--control and bipolar conductivity detector |
| Detection Mode | Bipolar conductivity detection |
| Cell Volume | ≤0.8μL |
| Detection Range | 0～45000μS/cm |
| Detection Resolution | ≤0.0020nS/cm |
| Output Voltage | -6000~+6000mV (adjustable) |
| Electronic Noise | 0.02nS |
| Baseline Noise | ≤0.001μS |
| Baseline Drift | ≤0.01μS |
| Operating Temperature Range | Room temperature +5 ℃~60 ℃±0.01℃ |
| Controlling Temperature Accuracy | ±0.01 ℃ |
| Maximum Pressure | 10.0MPa |
| Linear Range | ≥103 |
| Instrument Linearity | ≥0.999 |
| Quantitative Repeatability | ≤0.5% |
| Qualitative Repeatability | ≤0.5% |
| Minimum Detectable Concentration | Cl-≤0.0002ug/mL; Li+≤0.0002ug/mL |
| Flow System | Plastic Flow Path | Made of PEEK materials |
| Six-way Valve | PEEK material, pressure 5000psi;Independent automatic collecting and flow function. |
| Power Supply | 150W |
| External Size(L*W*H*) | 350*470*510(mm) |
| Net Weight(KG) | 26 |
| Gross Weight(KG) | 32 |
