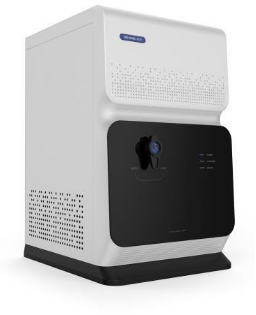

AELAB CIC-D100 Ion Chromatograph
AELAB CIC-D100 Ion Chromatograph

AELAB CIC-D100 Ion Chromatograph

Model NO.
CIC-D100
+ CIC-D100 ion chromatograph is a classic product of AELAB, which has been accepted by many customers. Based on the latest needs of users, Shenghan produced a newly upgraded CIC-D100.
+ Compared with the previous one, it is more accurate and reliable. The new IC not only can detect anions, cations and other polar substances in different matrix samples, but also separate ions with four orders of magnitude difference.
+ Intelligent maintenance function is added to give users a better experience. It is suitable for third-party testing institutions, enterprises, environmental protection, chemical industry, mining and metallurgy and other fields.
Quantity:
AELABCIC-D100IonChromatograph
Simple, economical and practical
+ CIC-D100 ion chromatograph is a classic product of AELAB, which has been accepted by many customers. Based on the latest needs of users, Shenghan produced a newly upgraded CIC-D100.
+ Compared with the previous one, it is more accurate and reliable. The new IC not only can detect anions, cations and other polar substances in different matrix samples, but also separate ions with four orders of magnitude difference.
+ Intelligent maintenance function is added to give users a better experience. It is suitable for third-party testing institutions, enterprises, environmental protection, chemical industry, mining and metallurgy and other fields.

Technology advantage:
+ Built-in circulating 3D constant temperature technology Temperature stability time is less than 30 mins, ensuring the accuracy and reliability of test data.
+ The world's leading full-range series of ion chromatographic columns.
+ High efficiency, large capacity of the columns for detecting ions of varied compositions.
+ Self-Regenerating Electrolytic Micro-membrane Suppressor High pressure resistance, small dead volume, highly responsive to signals.
+ Auto-range Conductivity Detector
+ It can directly detect the signal from ppb to ppm without adjusting the range; Only one conductivity detector can detect anions and cations.
+ Observatory intelligent workstation
+ Integrated control; With intelligent start-up, shutdown andmaintenance functions; Compatible with a variety of instruments; Customized images.

Technical Parameter:





Ion
Chromatograph ic Pump
TypeHigh-pressure and low-pulse two-piston tandem advection pump
Maximum Pressure42MPa
Pressure Display
Accuracy
≤0.1MPa

Flow Stability
(0.2-0.5)mL/min≤3%; (0.5-1.0)mL/min≤2%;
1.0mL/min≤2%;

Allowable Deviation of Flow
(0.2-0.5)mL/min , ±5%; (0.5-1.0)mL/min, ±3%; 1.0mL/min, ±2%;
Flow Range0.001~9.999mL/min
Pressure Pulse≤0.5%
Flow Precision≤0.1%
Flow Accuracy≤0.1%
Maximum Pressure35MPa

Manual
Sample
Injector
External Diameter of the Tube1/16"
Contact Material of the RotorPEEK
Contact Material of MediumPEEK/Ceramics

Column
Heater
Operating Temperature Range20~60℃(68~140℉)
Controlling Temperature Accuracy±0.01℃
Allowable Deviation of
Column Heater’s Temperature
±1℃
Temperature Stability≤0.05℃/h










Conduction
Detection System
TypeConstant temperature
auto-range conductivity detector
Cell Volume≤0.8μL
Detection Range035000μS/cm
Detection Resolution≤0.0020nS/cm
Output Voltage-6000+6000mv(adjustable)
Electronic Noise0.02nS
Baseline Noise≤0.001μS/cm
Baseline Drift≤0.02μS
Operating Temperature RangeRoom temperature,+5℃~60℃(41 ~140℉)
Controlling Temperature Accuracy±0.001℃
Temperature Compensation1.7 %/℃
Maximum Pressure10.0MPa
Linear Range≥103
Instrument Linearity≥0.999
Quantitative Repeatability≤1.0%
Qualitative Repeatability≤0.5%

Minimum Detectable Concentration
Cl-≤0.0005ug/mL;
Li+≤0.001ug/mL; BrO3-≤0.001ug/mL;


Flow System
Plastic Flow PathMade of PEEK materials

Six-way Valve
PEEK material, pressure 5000psi;
Independent automatic
collecting and flow function.

Suppressor
TypeSelf-Regenerating electrolytic
micro-membrane suppressor
Maximum Pressure6.0MPa
Dead Volume<50μL
Power Supply150W
External Size(L*W*H*)325*400*500
Net Weight(KG)21
Gross Weight(KG)28
