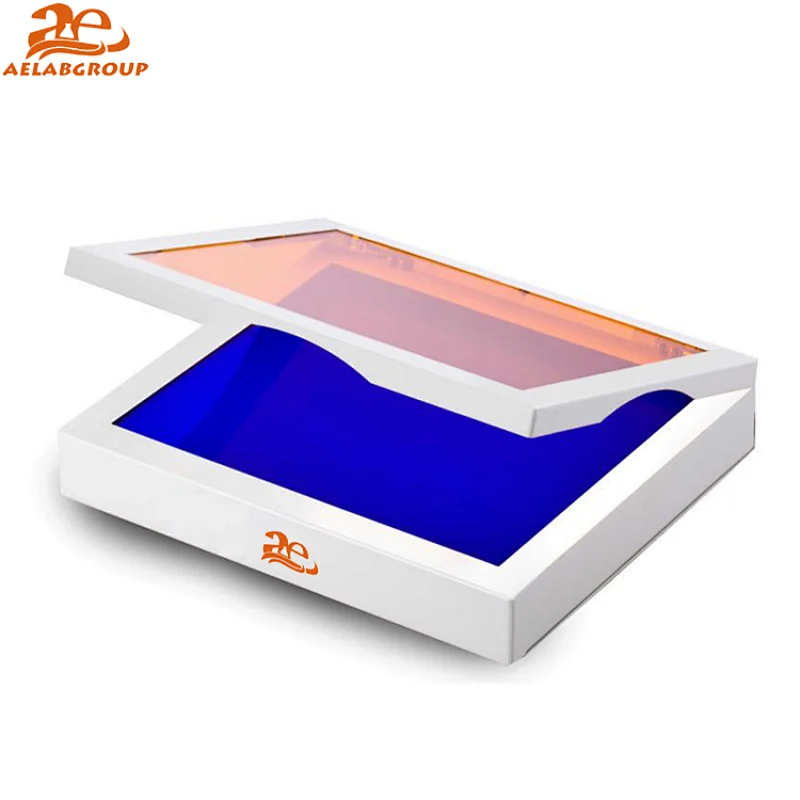

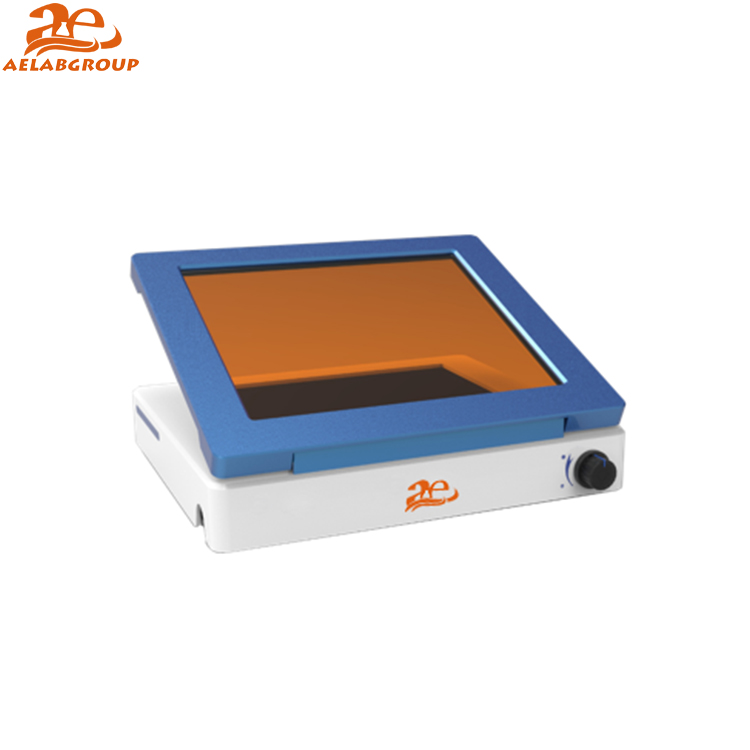

AELAB Blue LED UV Transilluminator For GEL Imaging System AE-Vtrans520
TheAE-Vtrans520 blue light transilluminator is easy to observe and cut the DNA/RNA gel with multiple safe dyes.It can also be used in combination with the AE-gdsAUTO520 gel imaging analysis system.
Features:
+ Safety: Use blue light source and safety dyes to avoid the damage caused by EB and UV gel imaging system.
+ Continuously adjustable light source intensity: Equipped with an adjustable light source knob, you can choose the appropriate light intensity according to the sample concentration, increase the imaging linear range, and avoid overexposed or weak sample signals.
+ Uniform illumination: 360 LED lights are evenly distributed at the bottom for even illumiation.
+ Suitable for a variety of sensitive and safe fluorescent dyes: The maximum absorption peak of many fluorescent dyes is blue-green visible light with a wavelength of 400-500nm, such as GeneFinder TM, SYBR Green, Gelstar, SYPRO Orange, green fluorescent protein Safety dyes.
Technical Specifications:
TheAE-Vtrans520 blue light transilluminator is easy to observe and cut the DNA/RNA gel with multiple safe dyes.It can also be used in combination with the AE-gdsAUTO520 gel imaging analysis system.
Features:
+ Safety: Use blue light source and safety dyes to avoid the damage caused by EB and UV gel imaging system.
+ Continuously adjustable light source intensity: Equipped with an adjustable light source knob, you can choose the appropriate light intensity according to the sample concentration, increase the imaging linear range, and avoid overexposed or weak sample signals.
+ Uniform illumination: 360 LED lights are evenly distributed at the bottom for even illumiation.
+ Suitable for a variety of sensitive and safe fluorescent dyes: The maximum absorption peak of many fluorescent dyes is blue-green visible light with a wavelength of 400-500nm, such as GeneFinder TM, SYBR Green, Gelstar, SYPRO Orange, green fluorescent protein Safety dyes.
Technical Specifications:
| Light source | 470nm blue light transmission light source |
| Light intensity | continuously adjustable |
| Dimensions(L × W × H) | 275 × 240 × 69 mm |
| Observation area(L × W × H) | 210 × 180 mm |
