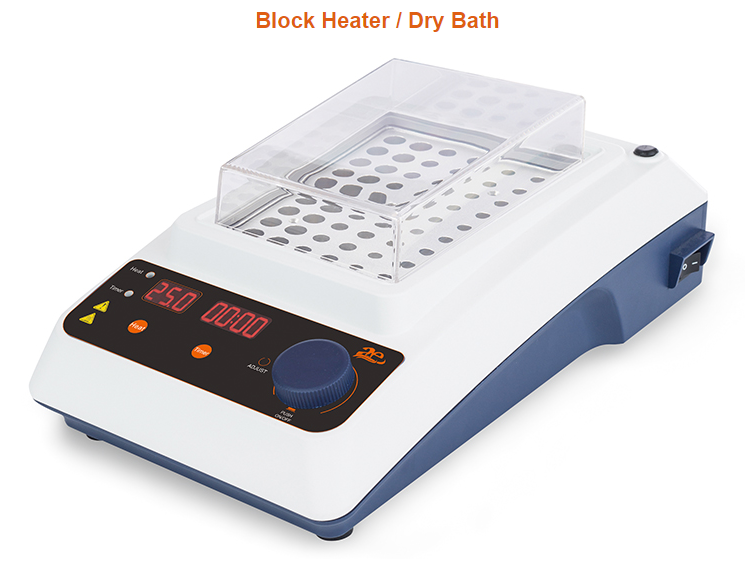

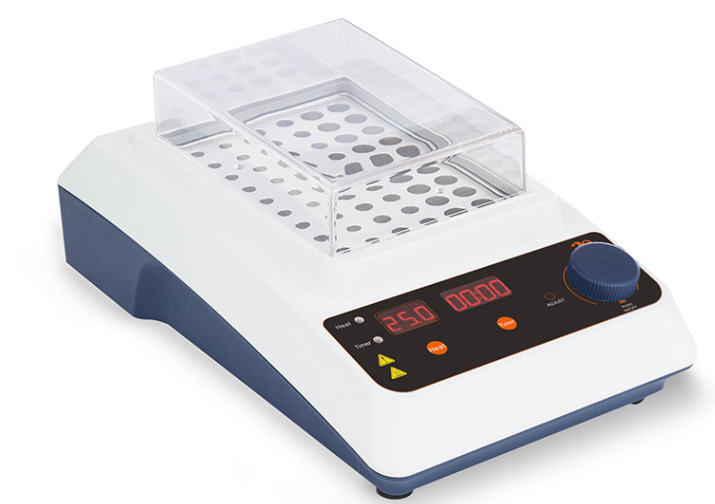

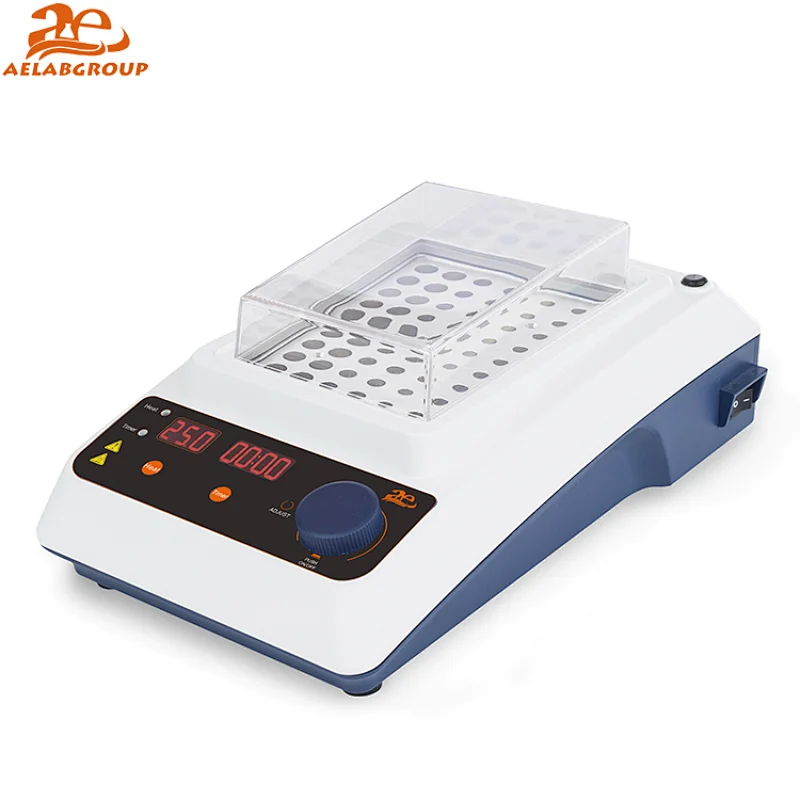

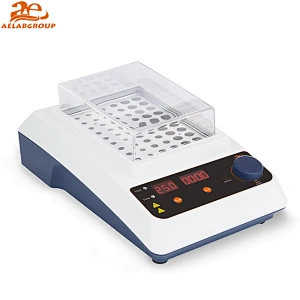

AELAB Block Heater / Dry Bath AE-BH101
These magnetic stirrers deliver powerful, smooth mixing and safe heating. These are useful in biological, physical, chemical, pharmaceutical laboratories, etc.
Features:
+ A wide range of temperature control up to 120°C.
+ Useful for heating of samples at low temperatures.
+ Timer function support is available.
+ LED digital display of temperature and time.
+ Various types of optional blocks are available.
+ Overheating protection.
+ Plastic Lid for protection and heat preservation.
Technical Specifications:
Block Ordering Detail:
These magnetic stirrers deliver powerful, smooth mixing and safe heating. These are useful in biological, physical, chemical, pharmaceutical laboratories, etc.
Features:
+ A wide range of temperature control up to 120°C.
+ Useful for heating of samples at low temperatures.
+ Timer function support is available.
+ LED digital display of temperature and time.
+ Various types of optional blocks are available.
+ Overheating protection.
+ Plastic Lid for protection and heat preservation.
Technical Specifications:
| Model | AE-BH101 |
| Functions | Heating |
| Temperature range | Room temp.-120°C |
| Temperature control accuracy [at 37℃] | ± 0.5°C |
| Temperature uniformity | ± 0.5°C |
| Max. heating rate | 5.5°C/min |
| Timer | 1min-99h59min |
| Screen | LED |
| Overheating protection | 140°C |
| Adapter block material | aluminum |
| Voltage, Frequency | 100-120V/220-240V,50Hz/60Hz |
| Power | 160W |
| Dimension [D×W×H] | 175 x 290 x 85mm |
| Weight | 3kg |

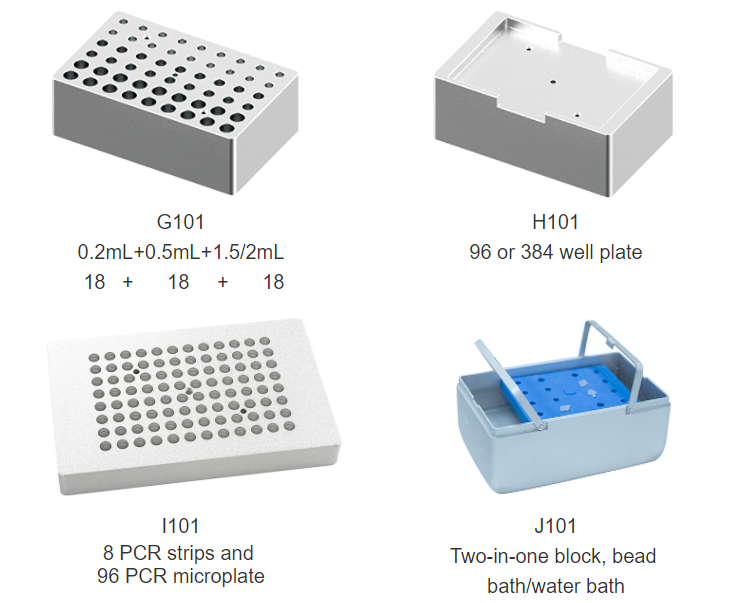

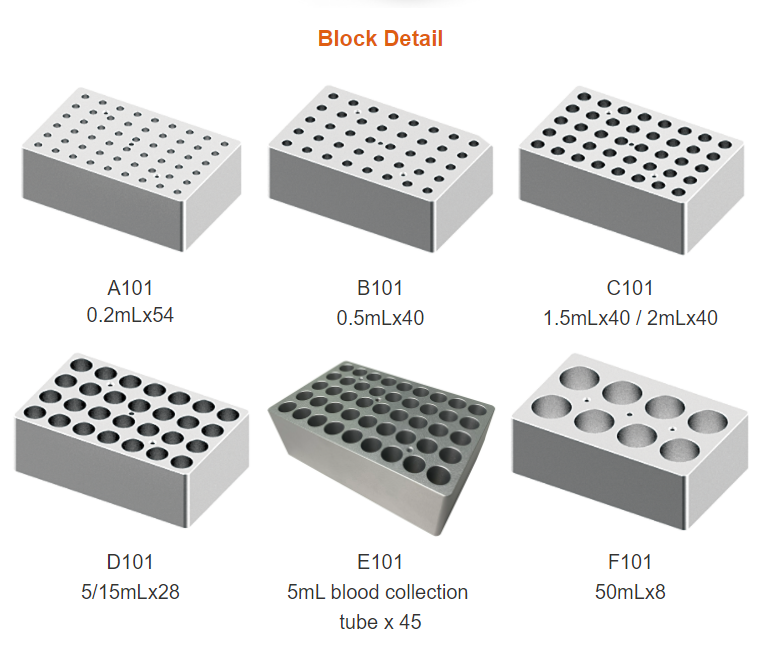

Block Ordering Detail:
| Ordering No. | Capacity | Diameter Depth | Ordering No. | Capacity | Diameter Depth |
| A101 | 0.2mLx54 | 6.4mm 15mm | F101 | 50mLx8 | 29.8mm 48mm |
| B101 | 0.5mLx40 | 8.2mm 26.4mm | G101 | 0.2mL+0.5mL+1.5/2mL 18+18+18 | |
| C101 | 1.5mLx40 2mLx40 | 11mm 34.7mm | H101 | 96 or 384 well plate | |
| D101 | 5/15mLx28 | 17mm 48mm | I101 | 8 PCR strips and 96 PCR microplate | |
| E101 | 5mL blood collection tube x 45 | 13.5mm 48mm | J101 | Two-in-one block, bead bath/water bath |
