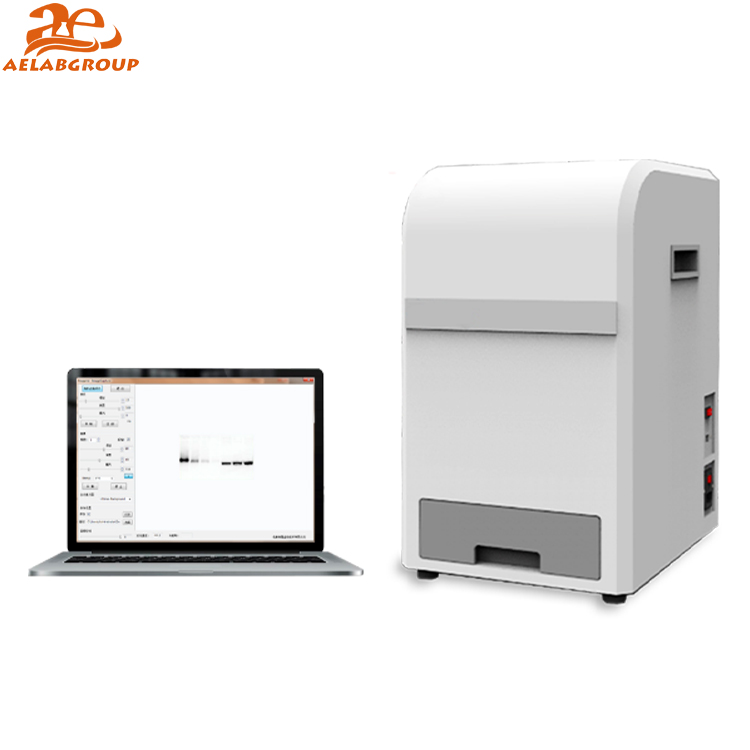

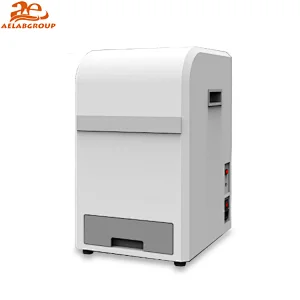

AELAB Automatic Gel Imaging and Analysis System AE-gdsAUTO 710 MINI
AELAB Automatic Gel Imaging and Analysis System AE-gdsAUTO 710 MINI
AELAB Automatic Gel Imaging and Analysis System AE-gdsAUTO 710 MINI
AELAB Automatic Gel Imaging and Analysis System AE-gdsAUTO 710 MINI
AELAB Automatic Gel Imaging and Analysis System AE-gdsAUTO 710 MINI

AELAB Automatic Gel Imaging and Analysis System AE-gdsAUTO 710 MINI

Model NO.
AE-gdsAUTO 710 MINI
Minimum order quantity:
1
Quantity:
AELAB Automatic Gel Imaging and Analysis System AE-gdsAUTO 710 MINI

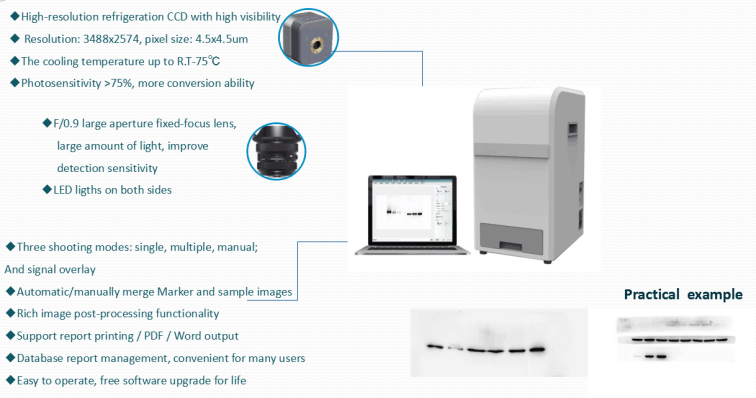

Technical Specifications:
ModelAE-gdsAUTO 710 MINI
CameraImported high resolution low illumination digital refrigeration camera
Resolution2750×2200 (6.05 million)
Pixel size4.54 microns × 4.54 microns
Pixel density16bit
Pixel merge1×1, 2× 2,4 ×4
CCD photosensitive chipSONY ICX 694
CCD dark current< 0.0005e-/pixel/ SEC @-40°C
Readout noise≥62dB
Photosensitive efficiency>75%
Cooling modeSemiconductor refrigeration
Cooling temperatureRelative temperature -75°C
(Absolute temperature -55°C, dynamic real-time display CCD refrigeration temperature)
LensF/0.8, high resolution, large aperture and high permeability fixed focus lens
ZoomCompatible with shooting sample thickness of 0.1-10mm
Dynamic range>4.5 orders of magnitude
Lighting sourceLED light source on both sides
Shooting area15×15cm
Overall size (L×W×H)320×360×550mm
SoftwareChemiImaging professional photo taking software, easy to switch between Chinese and English, free upgrade for life
