AELAB Automatic Gel Imaging and Analysis System AE-GEL600 AE-GEL900
AELABAutomatic Gel Imaging and Analysis System is fully automatic Chemiluminescence geI imaging system is highly integrated Cryogenic scientific research ultrasensitive CCD camera and wide aperture lens, it is with high sensitivity and very easy to operate.
Technical Specifications:
Features:
+ Fully automatic control ofthe lens and light source
+ Precise automatic exposure in calculate, no need to repeat calculation the exposure time
+ One button shooting, marker and Chemiluminescence image automatic stacking
+ Cryogenic scientific research ultrasensitive
+ CCD camera , wide aperture Lens
NucleicAcidDetection: EB,SYBRGold, SYBRGreen, SYBRSafe, GelRed, GelGreen, Fluorescein.
ProteinTest: Silver dyeing, SDS-page.Visible light imaging ...
luminescenceDetection: Western Blot.Western Lightning ECL、ECLplus ...
Performance :

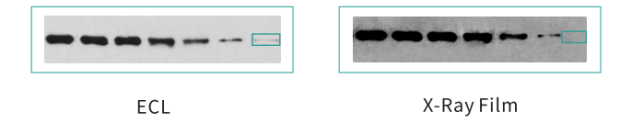

Chemiluminescence imaging compared with X-Ray Film, exposure time 30s, 01 Chemiluminescence imaging1 s linear range is better then X-Ray Film, and it has ultra- high sensitivity, you can capture the weak signal .
AELABAutomatic Gel Imaging and Analysis System is fully automatic Chemiluminescence geI imaging system is highly integrated Cryogenic scientific research ultrasensitive CCD camera and wide aperture lens, it is with high sensitivity and very easy to operate.
Technical Specifications:
| Model | AE-GEL600 | AE-GEL900 |
| Pixel | 6.0MP | 9.0MP |
| Cool | -65°C | |
| QE | High QE: >75% | High QE: >79% |
| Pixel size | 4.54umX4.54um | |
| Binning | 1X12x2 4x4 ・・8x8 | |
| Exposure | lms-120min | |
| Bit | 16 bit (0-65535) | |
| OD | N4.8OD | |
| Lens | F = 0.95f 25mm, optionaF = 0.8,25mm | |
| Uv transmission | 302nm, Area21x21cm | |
| Lighting | LED | |
| Uv reBection | NO | |
| Filter whee | Optional!,5 position filterwheel | |
| Filter | Opt i ona1 590nm, Other opt i ona1 | |
| Imaging area | 20X20cm | |
| APP Timer shut down | 1 ~ 60min | |
Features:
+ Fully automatic control ofthe lens and light source
+ Precise automatic exposure in calculate, no need to repeat calculation the exposure time
+ One button shooting, marker and Chemiluminescence image automatic stacking
+ Cryogenic scientific research ultrasensitive
+ CCD camera , wide aperture Lens
NucleicAcidDetection: EB,SYBRGold, SYBRGreen, SYBRSafe, GelRed, GelGreen, Fluorescein.
ProteinTest: Silver dyeing, SDS-page.Visible light imaging ...
luminescenceDetection: Western Blot.Western Lightning ECL、ECLplus ...
Performance :
Chemiluminescence imaging compared with X-Ray Film, exposure time 30s, 01 Chemiluminescence imaging1 s linear range is better then X-Ray Film, and it has ultra- high sensitivity, you can capture the weak signal .
