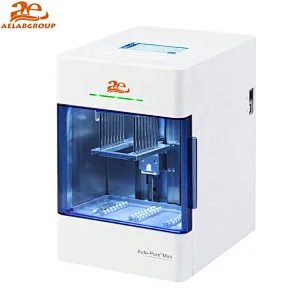

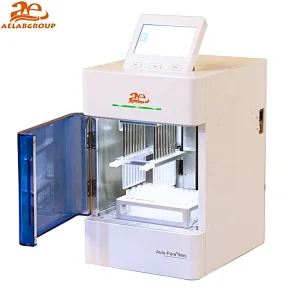

AELAB Auto-Pure Mini Nucleic Acid Purification System
AELAB Auto-Pure Mini Nucleic Acid Purification System
AELAB Auto-Pure Mini Nucleic Acid Purification System
AELAB Auto-Pure Mini Nucleic Acid Purification System
AELAB Auto-Pure Mini Nucleic Acid Purification System

AELAB Auto-Pure Mini Nucleic Acid Purification System

Model NO.
Auto-Pure Mini
+ Simple and intelligent operation
+ Field experiment
+ High-quality fast extraction
+ Open design, free editing of programs
Quantity:
AELAB Auto-Pure Mini Nucleic Acid Purification System

Features:
*Simple and intelligent operation
1.Built-in lighting LED, real-time observation of the operating status of the instrument.
2.Graphical interface design makes the operation of the instrument easier.
3.Configure mobile phone APP software, edit, set, and manage programs more easily.
*Field experiment
1.Special design of the instrument, small size, easy to carry.
2.Support low power consumption mode, such as when the battery is used for power supply, the display will automatically stop when it is not used for a long time.
3.External power supply, DC24V/5A, allowing battery power supply.
*High-quality fast extraction
1.Up to 16PCS 1mL samples can be processed simultaneously.
2.The use of lead screw drive to achieve lifting movement, high precision.
3.UV sterilization function to reduce the contamination of samples between different batches.
*Open design, free editing of programs
1.Accurate temperature control of room temperature +5℃~120℃.
2.Open software design, simple setting can complete the program setting.
3.Complete software functions, suitable for all kinds of magnetic bead reagents.
4.Diversified mixing and magnetic absorption methods are conducive to reagent optimization.
5.Use the same consumables as Auto-Pure 32A, and the corresponding reagents can be used directly.


Technical Specifications:
TypeAuto-Pure Mini
Throughput1~16
Processing volume20~1000μL
ConsumableSpecial magnetic rod cover, 96 deepwell plate, special single sample kit
Principle/working modeMagnetic bead method, magnetic rod; method/up and down mixing
StabilityCV≤3%
Magnetic bead recovery rate>95%
Lysis temperatureRoom temperature ~100℃
Elution temperatureRoom temperature ~100℃
Shaking modeMixed mode of editing different needs
Operation interface4.3 touch screen, 3 shortcut keys and external keyboard
Internal proceduresPreset 6 groups of programs, can store 100 groups of programs
Program managementNew, edit, save as, delete
Instrument portStandard USB, Ethernet port, WiFi
LightingYes
Purification&sterilizationFan exhaustion, UV sterilization
Size200x260x300mm
Weight7kg
