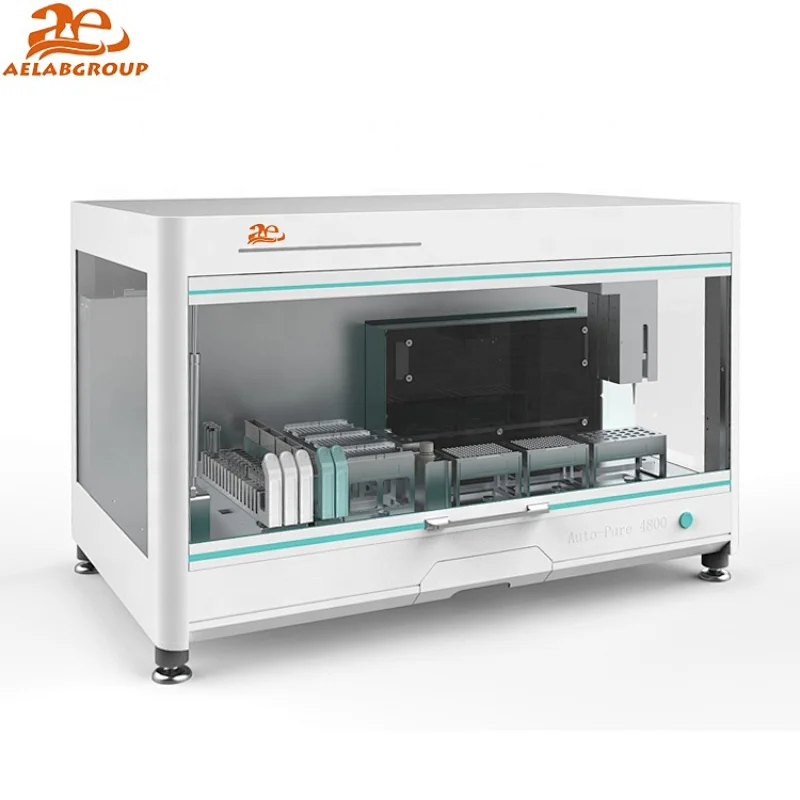

AELAB Auto-Pure 4800 Nucleic Acid Purification System
AELAB Auto-Pure 4800 Nucleic Acid Purification System
AELAB Auto-Pure 4800 Nucleic Acid Purification System
AELAB Auto-Pure 4800 Nucleic Acid Purification System
AELAB Auto-Pure 4800 Nucleic Acid Purification System

AELAB Auto-Pure 4800 Nucleic Acid Purification System

Model NO.
Auto-Pure 4800
+ Fast & flexible experiment
+ High-precision liquid handling
+ Effective cross-contamination prevention
+ Easy-to-learn operating software
+ Open and reliable nucleic acid extraction system
+ Vortex magnetic beads and PCR reagent block
Quantity:
AELAB Auto-Pure 4800 Nucleic Acid Purification System
Features:
*Fast & flexible experiment
1.Time for the extraction: 48 samples - 15 ~ 30 min (depending on different reagents)
Time for the pipette sample: 48 samples - 13 min
Time for PCR set-up: 48 samples - 10min
2.Bottled or prefilled reagents can be selected for extraction according to actual needs
3.Modular design of the work-table. And it can be customized for the layout of different forms
*High-precision liquid handling
1. 1+2 pipettors combination can meet various needs of sample, extraction reagent and PCR reagent
2.The pipettor’s pressure detection technology cannot only detect the height of the liquid level, but also empty suction, residual liquid volume and blockage detection
3.Detailed pipetting parameter settings for different liquids can effectively improve the accuracy
*Effective cross-contamination prevention
1.Air displacement pipetting principle to avoid liquid contamination
2.Anti-hanging drop technology to avoid dropping contamination
3.Negative pressure filter system to prevent aerosol contamination
4.Full coverage UV sterilization, exhaustive to clean the work-table
*Easy-to-learn operating software
1.Graphical user interface, program editing can be completed without complicated operations
2.Built-in comprehensive libraries of consumable carriers, and liquids to reduce customer program matching time
3.Users can simply select according to their needs to complete the whole process of liquid handling,extraction, and PCR / qPCR set-up
*Open and reliable nucleic acid extraction system
1.Open software designing, it can be suitable for matching most of the magnetic-beads based on extraction reagents
2.Various magnetic absorption methods can effectively solve problems of residual magnetic beads
*Vortex magnetic beads and PCR reagent block
1. Specially designed for magnetic beads, the vortex is stable which improves the efficiency of the experiment
2. The PCR reagent block can be be pre-cooled in the refrigerator before working
3. The PCR reagent block can be customized according to customer needs



Technical Specifications:
Parameter/ModelAuto-Pure 4800
FunctionAutomatic pipette samples and reagents, extract
nucleic acid and set-up PCR systems
Heating temperatureElution temperature control: RT+5℃~120℃
Lysis temperature control: RT+5℃~120℃
Information
management
Support external USB scanner, barcode scanning function, automatic scanning functionCooling module4℃~100℃(Optional)
Pipetting principleAir displacement pipetting technologyUV sterilizationSeparate UV lamp: extraction area,
pipetting area and waste container area
PipettorTwo 1000μL pipettors and one 200μL pipettorInstrument portUSB port
Pipetting range (μL)1~1000Power supply100-240V ±10%, 50-60Hz ±5%
Tips Tips, and other tips compatible
 with this instrument
Magnetic rods48
Liquid detectionPressure detection: liquid level detection, tip
clogging detection and residual liquid detection
PowerMaximum 450W
Samples per run1~48Computer systemWin10
Elution volume (μL)40~200Operating humidity20%~90%
Extraction uniformityCV ≤5%Size (W x D x H) mm1090x700x724
