AELAB Analytical Semi-Preparative and High Pressure Semi & Preparative Types HPLC
AELAB Analytical Semi-Preparative and High Pressure Semi & Preparative Types HPLC

AELAB Analytical Semi-Preparative and High Pressure Semi & Preparative Types HPLC

Model NO.
Semi-Preparative

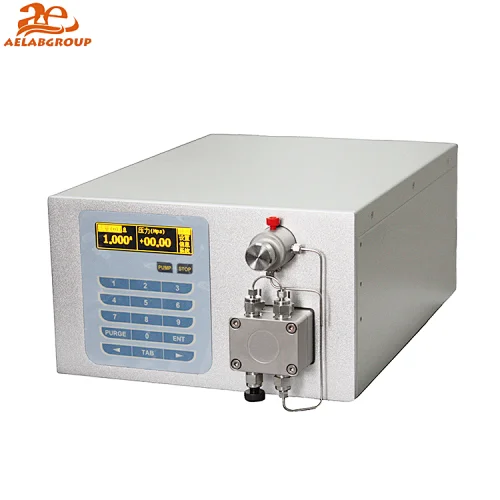

+ The new upgraded pump reserves the classic reciprocating parallel pump design to provide accurate flow and minimize pressure fluctuations.
+ The structure of one-piece check valve is simple and provides excellent leak resistance.
+ The piston rod can be retracted automatically so you to replace the piston seal easily without opening the instrument case.
+ New piston rinse function adopts dual-piston seals design, it is provided for buffer salt systems.
+ Less noise and higher reliability.
+ Extended warranty service and more comprehensive after-sales service to assist with your analysis.
+ Specifications of Infusion Unit.
Quantity:

AELAB Analytical Semi-Preparative and High Pressure Semi & Preparative Types HPLC

Introduction:

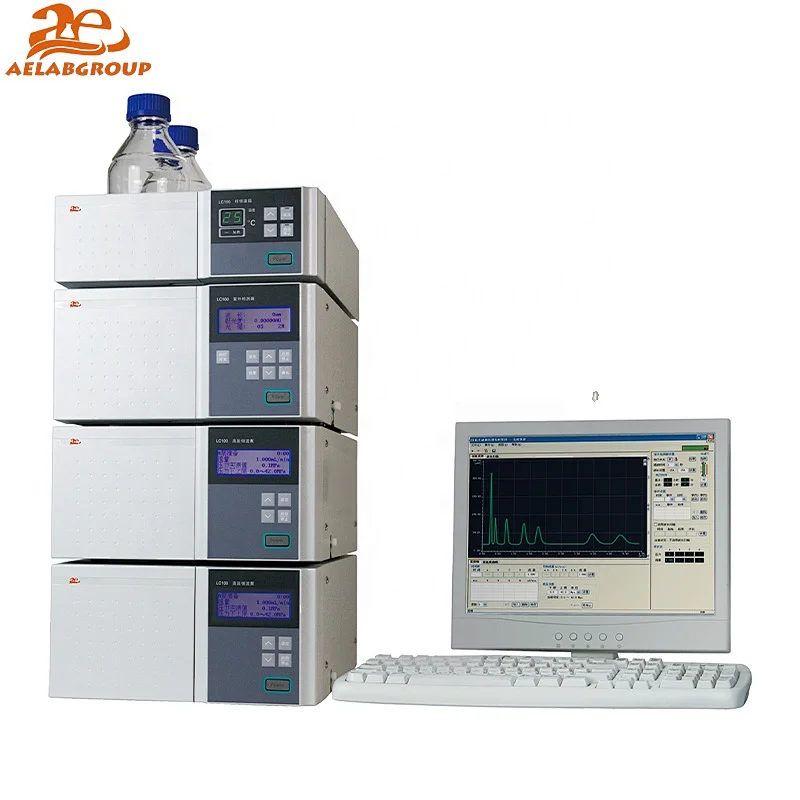

The Semi-PRE HPLC system can fulfill most analysis and preparation requirements. The High pressure preparation HPLC system ts mainly used in small-scale sample preparation and purification in laboratories.
+ The new upgraded pump reserves the classic reciprocating parallel pump design to provide accurate flow and minimize pressure fluctuations.
+ The structure of one-piece check valve is simple and provides excellent leak resistance.
+ The piston rod can be retracted automatically so you to replace the piston seal easily without opening the instrument case.
+ New piston rinse function adopts dual-piston seals design, it is provided for buffer salt systems.
+ Less noise and higher reliability.
+ Extended warranty service and more comprehensive after-sales service to assist with your analysis.
+ Specifications of Infusion Unit.


Specifications of Infusion Unit
1.Analytical System
Model: P100
Liquid Infusion System: Dual-piston reciprocating parallel pump,
equipped with a binary high-pressure mixer
Flow Rate Range: 0.001-10 mL/min
Max Output Pressure: 42 MPa
Flow Accuracy: <±1%
Flow Precision: RSD<0.07%
Qualitative Repeatability: RSD6 w 0.1% (naphthalene/methanol standards)
Quantitative Repeatability: RSD6 < 0.3% (naphthalene/methanol standards)
Pressure Fluctuation: 0.1Mpa
Power Supply: 220V/110V

2.Semi-Preparation System
Model: P100SP (40 mljsemi-preparation system
Flow Rate Range: 0.01 -40 mL/min
Prsssure Range: 0-25 MPa
Flow Accuracy: ±2%
Flow Rate Accuracy: RSD<0.1%

3.High Pressure Semi-Preparation System and High Pressure Preparation System
ModelPlOOHSP(SOmL)
HighPressureSemi-Preparation System
Pl00HP(120mL)
HighPressurePreparationSystem
Flow Rate Range0.01-50 mL/min0.01-120 mL/min
Prsssure Range0-42 MPa
Flow Accuracy±2%
Flow Rate AccuracyRSD

Specifications of Infusion Unit
Detector Units include: UV/ UV-VIS, FLD,DAD, RID, ELSD
ModelUV-100UV detectorUV-VIS100 detectorUV-100S preparative UV detector
Flow Cell Volume8ul8ul6ul
Light SourceD2 lampD2 lamp+W lampD2 lamp
Wavelength Range190-680 nm190-900 nm190-680 nm
Spectrum Bandwidth8nm
Wavelength Accuracy1nm
Wavelength PrecisionBelow 0.1
Noise<0.25 x 10 5AU (static)/1x1 OSAU (dynamic, under given conditions)
Drift< 0.4x10 4AU/h (static) /< 2 x 10 4AU/h (dynamic, under given conditions)
Minimum Detectable Concentration3xl09g/mL(naphthalene/methanol solution)


Rl Detector
Model:RI 100
Effective range for refractive:1.00-1.75 RIU
emperature control optical bench:7°C above ambient temperature
35 °C up to 55 °C in 1 °C steps
Noise (Analog signal):7nRIU(±7uV)
Noise (Digital output):3nRIU(±3uV)
Drift:< 1uRlU/h (< 1 mV/h)
Signal range (recorder):Selectable: 10 mV, 100 mV, 1000 mV
Flower cell volume:4 ul/ Micro
9 uL/Analytically
13 uL / Semi-preparative
Max Pressure:6 bar (0.6 MPa)
Max Flow rate:0.1 - 3.0 mL/min

DAD100 Detector
Wavelength Range:200-900nm (200-600*) Above 600 nm just for W lamp
Arrays:512
Spectrum Bandwidth lOnm:10nm
Light Source:D2 lamp + W lamp
Noise:±5x105AU
Drift:5x10-4AU
Sample Rate:max 100Hz
Interface:LAN USB R232

ELSD Detector
Model:ELSD 100
Light Source:Laser diode with correction optical mirror, 670 nm,
and maximum output being less than 5mW, in compliance with FCC safety standards
Detection Element:Silicon photoelectric diode
Temperature Range:Room temperature to 110°C
Nebulizer Gas:Nitrogen is optimal, maximum 3.0L/min
Pressure Range:15-90 psi
Mobile Phase Flow Rate:0-5 mL/min
Analog Output:0-1 V or 0-10 mV
Parameter:Use keyboard to enter operation parameters
Display:LCD

FLD100 Detector
Flow Cell Volume:16uL
Excitation Wavelength:200-890 nm
Emission Wavelength:210-900 nm
Wavelength Precision:3nm
S/N:720
