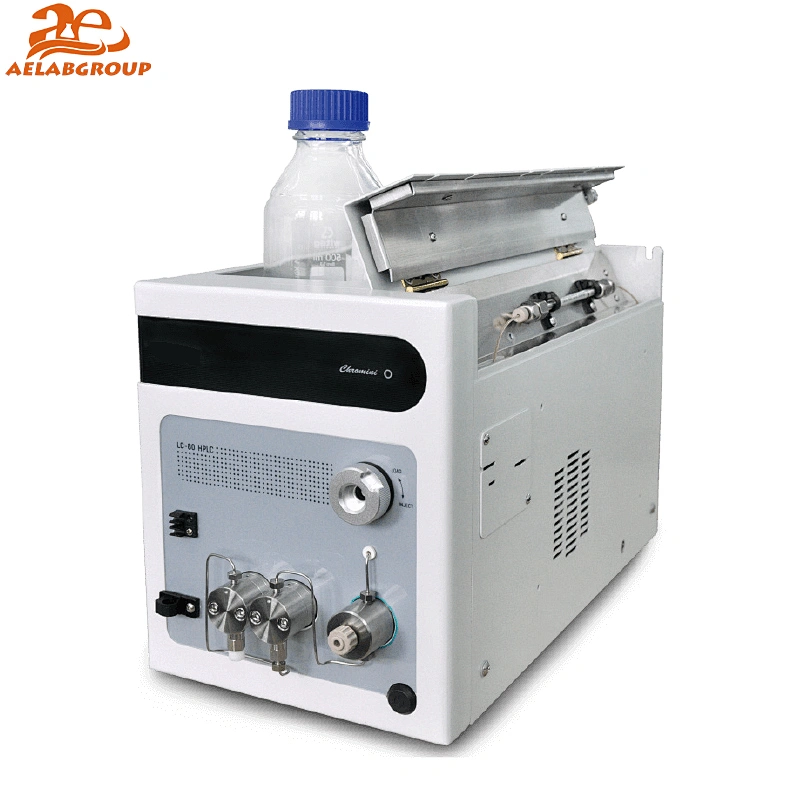

AELAB All-in-One Smart Isocratic System High Performance Liquid Chromatography LC-80
Introduction:
+ LC-80 ChroMini HPLC is designed to fit the needs of uses in special fields, such as Chemical industry, agricultural feed, teaching and training. As a cost-effectiveand integratedliquid chromatograph, the installation, operating, service and moving of LC-80 ChroMini HPLC is more convenience. On the basis of the analysis needs for food and feed industry, We have developed various application packages, such as fat-soluble vitamins, water soluble vitamins, amino acid analys is,clenbuterol,melamine, aflatoxin, be nzopyrene and Sudan III etc.
+ LC-80 high performsnce liquid chromatograph is a brand new chromatographic instrument of high accuracy. The intergration, the modularity and the intelligence are all in this instrument of a small size with the convinence of maintenance and free mobility.
+ Adoption of the leading technology of microcomputer makes the control of unit with just the connection to the PC chromatographic working station possible. Simplification of operation will emancipate you from the hard work in the laboratory!
+Intergration reduces the distance of tubing between units and the quantity of interface. Thereby the reduction of dead volume and potential leaking point improves the overall performance and meanwhile provides a convinent maintenance.

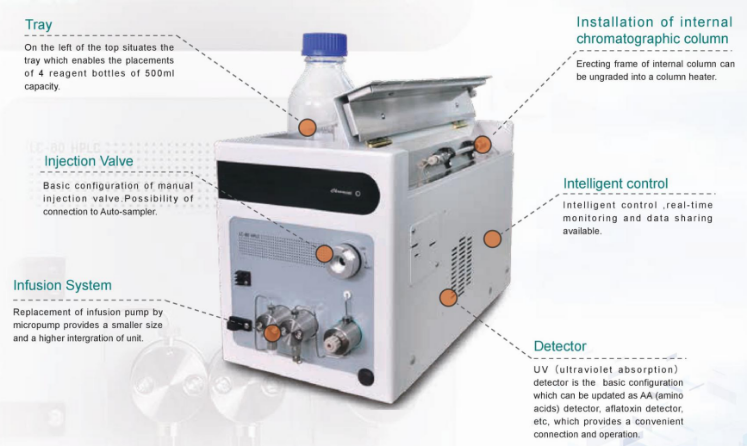

Machine Structure:

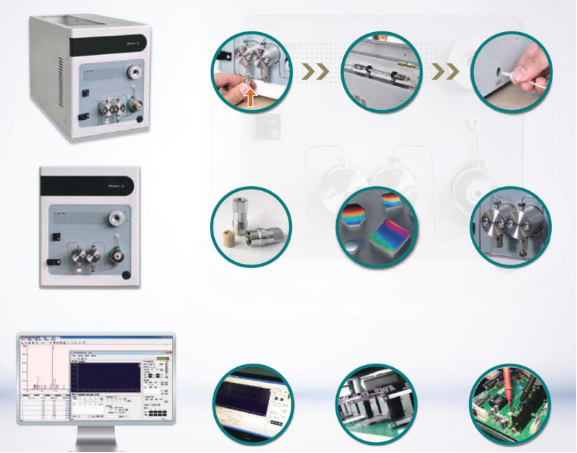

Features:
Convenient connection and operation
Tubing bewteen units and signal cables are all intergrated in LC'80 No need of a long-term training, high efficiency lies in the easy installation in just 3 steps before operation of unit and convenience of maintenance.
Accessories newly upgraded
Compared with the former edition, the HPLC upgrades from a normal piston seal to the one of high abrasion resistance, from check valve to integrated check valve .Under the guarantee of long service life, maintenance costs are significantly reduced.
Intelligent control system
LC-80 is equipped with intellige nt chromatographic working station networked. Unit is controlled directly by chromatographic working station; state of unit and analytic results can be efficiently and conveniently acquired from the working station.
The small unit LC-80 is intergrated with a powerful intelligent control system like the leakage alarm system and the pump head decompression alarm system normly seen in the high-end instruments.
Detection of vitamin content in the feed
Methods source: GB/T 17817-2010> GB/T 17818-2010> GB/T 17812-2008
Sample: Vitamin A acetate, Vitamin D3, Vitamin E acetate
Sample extraction：second method in standard (Methanol extract)
Instrument: LC-80
Column: EXFORNMAC18(L), 4.6*150mm, 5.m
Mobile phase:methanol:water = 95:5, flow rate:1.0mL/min
Column temperature: 25°C；Injection Volume：20ul
UV detection wavelength (nm) : Vitamin A acetate, 326; Vitamin D3, 264; Vitamin E acetate, 280.
Detection of aflatoxin
Instrument: LC-80
Mobile phase: water(2% acetic acid):methanol:acetonitrile = 70:15:15
Column: 150*4.6mm 2.6um Phenomenex C18;flow rate:1.0mL/min
Column temperature:40°C;Injection Volume:10uL
LC-80 ChroMini HPLC Specifications
(1)Flow Rate: 0.001 ~ 5.000 ml/min
(2)Flow Precision Sr < 0.1%
(3)Flow Accuracy Ss^±1%
(4)Max Pressure: 40MPa
(5)Qualitative Repeatability: RSD6< 0.2% (Naphthalene/Methanol standards)
(6)Quantitative Repeatability: RSD6 W 0.5% (Naphthalene/Methanol standards)
(7)Pressure Fluctuation: 0.1MPa
(8)Spectrum Bandwidth: 8nm
(9)Wavelength Accuracy: ±1nm
(10)Wavelength Precision: Below 0.1nm
(11)Noise：≤0.25 x 10 5AU (Static)；
≤±1 x 1 o 5AU (Dynamic, given conditions)
(12)Drift:≤0.4X104AU/hr (Static)；
≤2X104AU/hr (Dynamic, given conditions)
(13)Minimum Detectable Concentration: < 5 X 10'9 g/ml (Naphthalene/Methanol standards)
(14)Overall dimension: L455XW220XH 267 (mm)
+ LC-80 high performsnce liquid chromatograph is a brand new chromatographic instrument of high accuracy. The intergration, the modularity and the intelligence are all in this instrument of a small size with the convinence of maintenance and free mobility.
+ Adoption of the leading technology of microcomputer makes the control of unit with just the connection to the PC chromatographic working station possible. Simplification of operation will emancipate you from the hard work in the laboratory!
+Intergration reduces the distance of tubing between units and the quantity of interface. Thereby the reduction of dead volume and potential leaking point improves the overall performance and meanwhile provides a convinent maintenance.
Machine Structure:
Features:
Convenient connection and operation
Tubing bewteen units and signal cables are all intergrated in LC'80 No need of a long-term training, high efficiency lies in the easy installation in just 3 steps before operation of unit and convenience of maintenance.
Accessories newly upgraded
Compared with the former edition, the HPLC upgrades from a normal piston seal to the one of high abrasion resistance, from check valve to integrated check valve .Under the guarantee of long service life, maintenance costs are significantly reduced.
Intelligent control system
LC-80 is equipped with intellige nt chromatographic working station networked. Unit is controlled directly by chromatographic working station; state of unit and analytic results can be efficiently and conveniently acquired from the working station.
The small unit LC-80 is intergrated with a powerful intelligent control system like the leakage alarm system and the pump head decompression alarm system normly seen in the high-end instruments.
Detection of vitamin content in the feed
Methods source: GB/T 17817-2010> GB/T 17818-2010> GB/T 17812-2008
Sample: Vitamin A acetate, Vitamin D3, Vitamin E acetate
Sample extraction：second method in standard (Methanol extract)
Instrument: LC-80
Column: EXFORNMAC18(L), 4.6*150mm, 5.m
Mobile phase:methanol:water = 95:5, flow rate:1.0mL/min
Column temperature: 25°C；Injection Volume：20ul
UV detection wavelength (nm) : Vitamin A acetate, 326; Vitamin D3, 264; Vitamin E acetate, 280.
Detection of aflatoxin
Instrument: LC-80
Mobile phase: water(2% acetic acid):methanol:acetonitrile = 70:15:15
Column: 150*4.6mm 2.6um Phenomenex C18;flow rate:1.0mL/min
Column temperature:40°C;Injection Volume:10uL
LC-80 ChroMini HPLC Specifications
(1)Flow Rate: 0.001 ~ 5.000 ml/min
(2)Flow Precision Sr < 0.1%
(3)Flow Accuracy Ss^±1%
(4)Max Pressure: 40MPa
(5)Qualitative Repeatability: RSD6< 0.2% (Naphthalene/Methanol standards)
(6)Quantitative Repeatability: RSD6 W 0.5% (Naphthalene/Methanol standards)
(7)Pressure Fluctuation: 0.1MPa
(8)Spectrum Bandwidth: 8nm
(9)Wavelength Accuracy: ±1nm
(10)Wavelength Precision: Below 0.1nm
(11)Noise：≤0.25 x 10 5AU (Static)；
≤±1 x 1 o 5AU (Dynamic, given conditions)
(12)Drift:≤0.4X104AU/hr (Static)；
≤2X104AU/hr (Dynamic, given conditions)
(13)Minimum Detectable Concentration: < 5 X 10'9 g/ml (Naphthalene/Methanol standards)
(14)Overall dimension: L455XW220XH 267 (mm)
