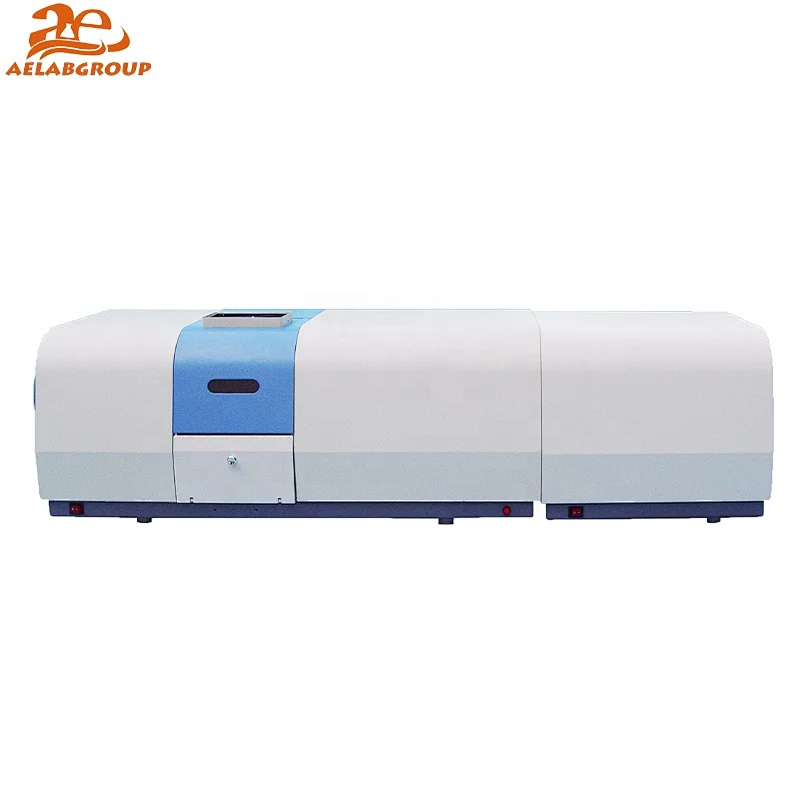

AELAB 8 Lamps Turret Atomic Absorption Spectrophotometer AA990 Series
Features & Functions:
+ The instrument has a motorised 8 hollow cathode lamp turret which allows the automatic positioning and optimisation of each hollow cathode lamp by the software.
+ The control of the gas flows for the fuel gas (C2H2) of the burner is also carried out directly from the software thus allowing optimisation of the instrument for the best analytical parameters for a selected analysis.
+ Two methods of background correction are available. The first utilises a Deuterium Arc lamp and the second is the proven method of Self Reversal.
+ High precision minimal optics ensures maximum light throughput to the computer controlled Czerny-Turner Monochromator.
+ The location of the wavelength and peak selection is automatically controlled from the software.
+ The spectral bandwidth is automated and is available with a choice of five slit sizes.
+ The electronic parameters for the photomultiplier tube detector, the hollow cathode lamp current and the balancing of the absorbance and background energies are controlled from the software.
+ The ignition of the flame is computer controlled and the various safety interlocks offer a very safe operating system.
SaftyThe flame conditions are continuously monitored and should the flow rates change, an audible alarm sounds.
The pressure of the support gas (oxidant) is monitored constantly. If the pressure changes then the flow of the fuel gas will be stopped and the flame will be safely extinguished.
A sensor monitors the level of liquid in the drain and will prevent ignition if too low. The flame will also be extinguished if the level of liquid in the drain changes significantly.
A flame sensor monitors the flame and safely turns off the gas flow to the burner if the flame suddenly extinguishes.
The burner is identified by a switch making it impossible to light without the burner being fitted.
An emergency flame off button is installed in case a problem is observed. The flame can be extinguished safely.
Technical Specification : | Optical System |
| Wavelength Range | 190nm-900nm |
| Monochromator | Czerny-Turner Configuration |
| Grating Groove | 1800/mm |
| Spectral Bandwidth | 0.1nm, 0.2nm, 0.5nm, 1.0nm, 2.0nm (with automatic changeover) |
| Wavelength Accuracy | ±0.25nm |
| Wavelength Reproducibility | ≤0.15nm |
| Wavelength Resolution | 0.2nm±0.02nm |
| Baseline Stability | ±0.004Abs/30min |
| Background Correction | Deuterium Arc 1.0Abs Self Reversal 1.0Abs |
| Flame Analysis | |
| Flame Types | Air/Acetylene;Nitrous Oxide/Acetylene;Air/Propane(LPG) |
| Characteristic Concentration | Cu﹤0.04μg/ml/1% (Air/Acetylene)
Ba＜0.15μg/mL/1% (Nitrous Oxide/Acetylene ) |
| Detection Limit | Cu≤0.006μg/ml |
| Burner | Metal Titanium Alloy Burner |
| Repeatability | Cu＜1.0% ( air – acetylene method)
Ba＜1.0% (air – acetylene method) |
| Sensitivity | Cu 2ug/ml Absorption>0.28Abs |
| Nebulizer | High-efficiency glass nebulizer, Acid proof available as an option |
| Atomization Chamber | Corrosion-resistant material |
| Position Adjustment | Automatic changeover of flame and furnace, automatic setting of optimum height for flame burner |
| Safety | Various auto safety functions |
| Graphic Furnace Analysis | |
| Temperature Range | Ambient-2650℃ |
| Detection Limit | Cd≤0 .01ng/ml |
| Repeatability | Cu＜3%, Cd ＜4% |
| Heating Methods | Advanced graphic furnace horizontal heating |
| Heating and Temperature Control | Voltage feedback control when drying and ashing;
Multi-Standard Calibration, Standard Addition, Interpolation |
| Temperature Control Precision | ＜1% |
| Background Correction | (Deuterium Lamp Background Correction and Self-reversal Background Correction ) ＞55 times |
