Model NO.
A3 Series
+ PC System is used to control the instrument. Preinstalled AA-Win 3.0 software, user manuals, cook book and Windows operating system.
+ AA-Win 3.0 software provides full control of the instrument and autosampler with easy method change for each technique.

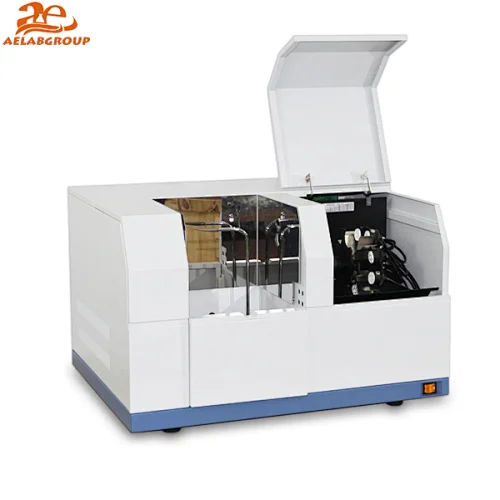

+ Automatic 8 Hollow Cathode lamp turret controlled and optimised by the AA-Win 3.0 software. Operating lamp current and warm-up lamp current can be individually controlled to eliminate drift commonly associated with lamp warming.
+ D2 lamp background correction system fitted as standard to all configurations. High energy D2 lamp and adjustable beam splitter mirror are optimised by the AA-Win 3.0 software.
+ Self Reversal background correction system fitted as standard to all configurations. The high performance background system uses the same hollow cathode lamp as installed for the analysis. Minimum extra components are required and optical alignment is very simple. Self Reversal can be used for any element at any wavelength making it extremely versatile.
+ High precision minimal optics ensures maximum light throughput to the computer controlled Czerny-Turner monochromator.

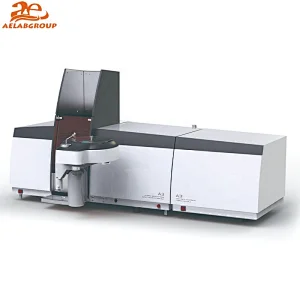

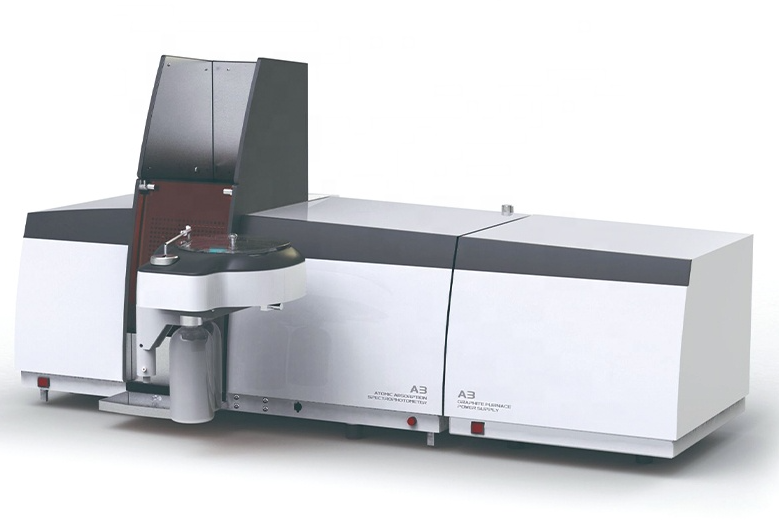

+ A universal autosampler is available as an optional accessory which is conveniently mounted on the front of the A3 instrument.
+ Absorption and Emission modes are standard features in the AA-Win3.0 software as well as peak height, peak area, sequential and manual integration modes
Quantity:

AELAB 8 Lamps Turret Atomic Absorption Spectrophotometer A3 Series

Features & Functions:
+ PC System is used to control the instrument. Preinstalled AA-Win 3.0 software, user manuals, cook book and Windows operating system.
+ AA-Win 3.0 software provides full control of the instrument and autosampler with easy method change for each technique.
+ Automatic 8 Hollow Cathode lamp turret controlled and optimised by the AA-Win 3.0 software. Operating lamp current and warm-up lamp current can be individually controlled to eliminate drift commonly associated with lamp warming.
+ D2 lamp background correction system fitted as standard to all configurations. High energy D2 lamp and adjustable beam splitter mirror are optimised by the AA-Win 3.0 software.
+ Self Reversal background correction system fitted as standard to all configurations. The high performance background system uses the same hollow cathode lamp as installed for the analysis. Minimum extra components are required and optical alignment is very simple. Self Reversal can be used for any element at any wavelength making it extremely versatile.
+ High precision minimal optics ensures maximum light throughput to the computer controlled Czerny-Turner monochromator.
+ A universal autosampler is available as an optional accessory which is conveniently mounted on the front of the A3 instrument.
+ Absorption and Emission modes are standard features in the AA-Win3.0 software as well as peak height, peak area, sequential and manual integration modes.

Air/Acetylene
+ The Air/Acetylene flame uses a 100mm single slot burner for the standard configuration.
+ The high sensitivity (Cu 2ppm >0.280abs) is due to the efficiency of the fixed position glass nebuliser fitted as standard. An acid resistant replacement is available as an option.
+ The flame can be easily set from blue lean flame through stoichiometric to fuel rich by means of computer control.
N2O/Acetylene
+ The N2O/Acetylene flame uses a 50mm single slot burn- er and is available as an optional extra.
+ This flame configuration is used to measure elements less prone to ionization such as: Aluminium, Tin, Titanium, Calcium, Vanadium and Molybdenum.
+ Switching from Air/Acetylene to N2O/Acetylene to Flame Off is fully controlled by the AAWin3.0 software.
Air/Propane(LPG)
+ This flame uses a 3 slot burner and with the Iowpressure requirement it is also much safer to operate.
+ Due to the Iow temperature of the flame it is ideal for analysing alkali metals such as: Potassium, Sodium and Lithium, especially when used in the emission mode.
+ Some remote areas of the world have difficulty obtaining Acetylene gas of a high enough purity to operate the flame correctly, LPG can give a real alternative and offer comparable results for most elements throughout the wavelength range.


Technical Specification :
Spectrometer System
Wavelength range185nm -910nm
Light SourceHollow cathode lamp (HCL), Deuterium Arc lamp (D2)
ModulationSquare Wave Pulse
Modulation frequency100Hz Self reversal (SR) background, 400Hz Deuterium Arc (D2) background
Monochromator
Grating1800 grooves/mm diffraction grating
Blazed Wavelength250nm
Focus300nm
Bandwidth0.1nm, 0.2nm, 0.4nm, 1.0nm, 2.0nm (Software selectable)
Scan modeAutomatic
Photometric TypeSingle Beam
Wavelength Accuracy± 0.15nm
Wavelength Resolution0.2nm ± 0.02nm
Wavelength Reproducibility< 0.05nm
Baseline Stability0.005Abs/30min
Background CorrectionDeuterium Arc (D2) 1.0Abs, Self Reversal (SR) 3.0Abs
Flame Analysis
Flame TypesAir/Acetylene, Nitrous Oxide/Acetylene, Air/Propane (LPG)
Sensitivity (Cu)2ug/ml Absorption >0.28Abs
Characteristic ConcentrationCu< 0.02ug/ml, Ba < 0.15mg/ml (N20/Acetylene)
Detection LimitCu< 0.004ug/ml
RepeatabilityCu< 0.7% (Air/Acetylene Flame)
Ba< 1.0% (Nitrous Oxide/Acetylene Flame)
Burner headsTitanium Alloy
NebuliserHigh efficiency glass, Acid proof available as an option
Pre-mix ChamberCorrosion Resistant
Atomiser SelectionAutomatic changeover (A3FG), Manual (A3F)
Safety FeaturesBurner identification, Flame Sensor, Gas Leak Sensor, Low Gas Pressure Sensor, Drain Trap,Sensor, Power Loss Protection
Graphite Furnace Analysis
Graphite HeadTransversally Heated
Temperature RangeAmbient - 3000 0C
Heating ProgramUp to 10 steps. Drying, Ashing, Atomisation, Cleaning
FeedbackVoltage and Optical temperature control feedback
Sensitivity (Cu)50ng/ml Absorption >0.40Abs
Detection LimitCd< 0.004ng/ml
RepeatabilityCu< 2.0%, Cd < 2.0%
Graphite TubesPyrolytically Coated with Platform
Sample SizeUp to 20ul
Graphite CoolingWater Circulator Available
Safety FeaturesArgon Pressure Sensor, Water Flow Sensor, Over Temperature Sensor, Broken Tube Protection

Data Processing
PC SystemPC, Windows Operating System
Operating ProgramAA Win 3.0 software
Analytical MethodsFlame AA, Flame AE, Graphite Furnace, Hydride Generation
Readout ModeContinuous, Peak Height, Peak Area
CalibrationsMulti-Standard Calibration, Standard Addition, Interpolation
Data StorageAnalytical results, instrument and measurement parameters, signal profile, calibration curve
Power Requirements
Main Unit220VAC 50/60Hz
Graphite Power Supply220VAC 50/60Hz Instantaneous power 7KW
Dimensions
Main unit110cm x 54cm x 54cm 75Kg
Graphite Power Supply50cm x 54cm x 54cm 70Kg

A3F
1Main unit
1A3 instruction Manual
1Cook Book
1Safety Manual
1System validation document
1Data coded Air/Acetylene burner
1Glass Nebuliser
8Hollow cathode Lamp Holders
2Power Cables
1Gas tubing Air
1Gas Tubing Acetylene
1Drain Trap and Tubing
1Tool Kit
1Various gas Fittings

A3G
1Main unit
1A3 instruction Manual
1Cook book
1Safety Manual
1System Validation document
8Hollow cathode Lamp Holders
2Power Cables
1Tool Kit
1Various Gas Fittings
10Graphite Tubes
1Gas Tubing Argon
1Connection Cable (Graphite)
1Pipette
1bagPipette Tips

A3FG
1Main unit
1A3 instruction Manual
1Cook Book
1Safety Manual
1System validation document
1Datacoded Air/Acetylene burner
1Glass Nebuliser
8Hollow cathode Lamp Holders
2Power Cables
1Gas tubing Air
1Gas Tubing Acetylene
1Drain Trap and Tubing
1Tool Kit
1Various gas Fittings
10Graphite tubes
1Gas Tubing Argon
1Connection Cable (graphite)
1Pipette
1bagPipette Tips
