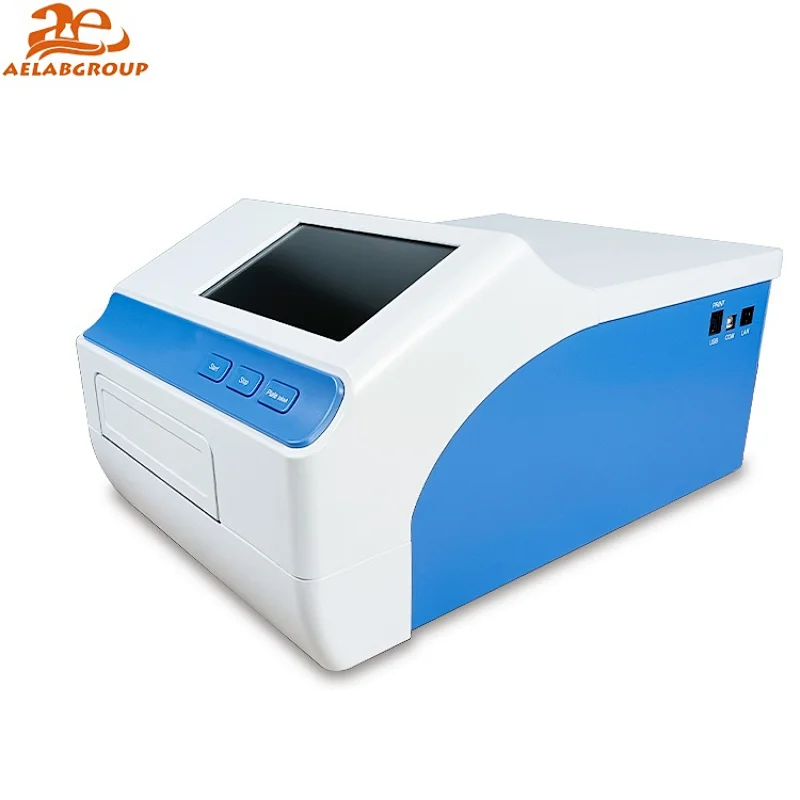

AELAB 96 Plate Multifunctional Elisa Microplate Reader AE-AMR-100
The AMR-100 Microplate Reader, with a wavelength range of 340–750nm, is a high-performance solution for a wide range of applications, including immunoassays with colorimetric substrates, such as ELISA, and protein assays such as Bradford and Lowry. It is designed for applications within the clinical, biotechnology research and pharmaceutical laboratory.
The AMR-100 can be used as a stand-alone reader or be controlled by a PC or a PAD with Android systemThe AMR-100 Microplate Reader is a reliable and robust instrument for a wide variety of research and clinical applications. It reads various kinds of 96-wells plates, and is equipped with shaking function. It can be used as a stand alone instrument or under PC control with regular or APP software. It is easy-to-use the software.
AMR-100 Microplate Reader is a 8-channel absorbance microplate reader that provides not only accurate, reproducible and fast measurements, but also offer innovative design with its easy-to-use control and data analysis software. It is ideal for a variety of ELISA applications in the biology laboratory.
The AMR-100 Microplate Reader, with a wavelength range of 340–750nm, is a high-performance solution for a wide range of applications, including immunoassays with colorimetric substrates, such as ELISA, and protein assays such as Bradford and Lowry. It is designed for applications within the clinical, biotechnology research and pharmaceutical laboratory.
The AMR-100 can be used as a stand-alone reader or be controlled by a PC or a PAD with Android systemThe AMR-100 Microplate Reader is a reliable and robust instrument for a wide variety of research and clinical applications. It reads various kinds of 96-wells plates, and is equipped with shaking function. It can be used as a stand alone instrument or under PC control with regular or APP software. It is easy-to-use the software.
AMR-100 Microplate Reader is a 8-channel absorbance microplate reader that provides not only accurate, reproducible and fast measurements, but also offer innovative design with its easy-to-use control and data analysis software. It is ideal for a variety of ELISA applications in the biology laboratory.
Features:
It keeps with high visual and logical user interface of software, it can be offered a comprehensive inbuilt calculations, such as blank subtraction, quantitative curve fit, quanlitative classification and kinetic calculations, as well as the versatile reporting tool and make data reduction.

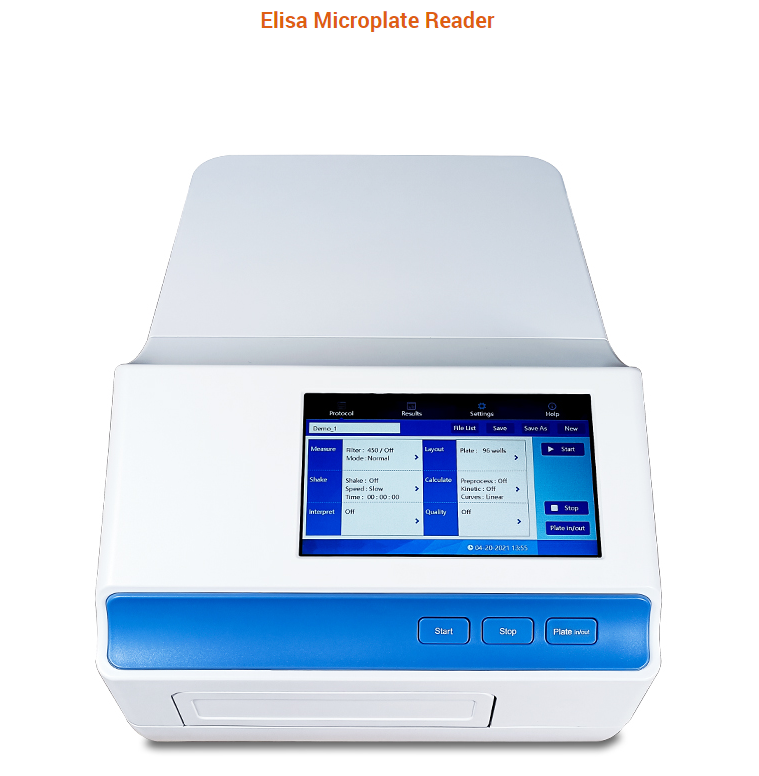

1. Easy of use with 7 inch touch screen together with 3 external keys
2. A broad wavelength range of 340-750nm
3. Able to use individually or connect with PC and export results or a PAD with Android system
4. Absorbance range: 0.0~4.000Abs
5. 8 positions optical filter wheel, equipped with 4 standard optical filters
6. Fast and accurate measurement of 96-well plates within 6 seconds
7. Convenient built-in shaker
8. Wide-format internal thermal graphical printer
9. Wide applicability for life science and clinical laboratories
10. Additional reference channel for optimized light intensity
11. Endpoint, kinetic and multi-label measurements for a variety of applications
12. Shaking with variable time and speed
13. PC software, APP software and bulit-in software for powerful and validated data analysis

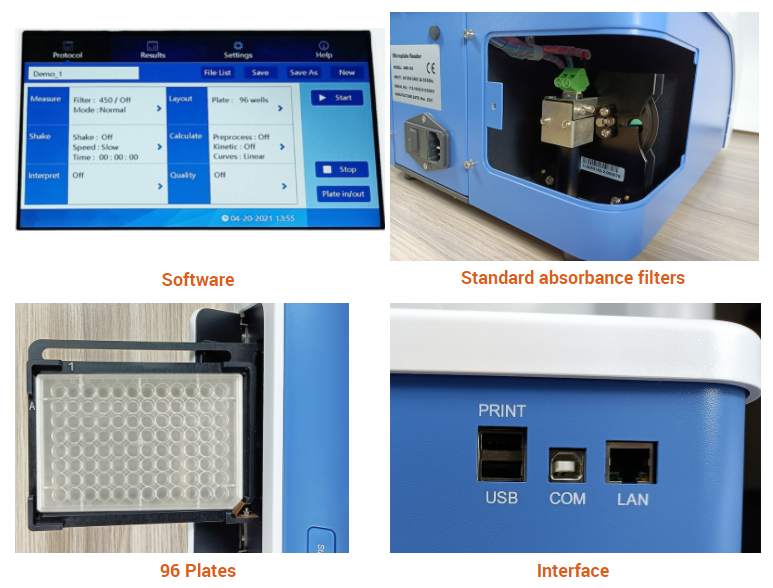

Filters:
The AMR-100 Microplate Reader comes with four standard absorbance filters:405, 450, 492, and 630nm. We
also supply custom filters at 5~9nm intervals from 340 to 750nm on request.
Software:
AMR-100 keeps with high visual and logical user interface of software, it can be offered a comprehensive inbuilt
calculations, such as blank subtraction, quantitative curve fit, quanlitative classification and kinetic calculations,
as well as the versatile reporting tool and make data reduction.
Technical Specifications:
It keeps with high visual and logical user interface of software, it can be offered a comprehensive inbuilt calculations, such as blank subtraction, quantitative curve fit, quanlitative classification and kinetic calculations, as well as the versatile reporting tool and make data reduction.
1. Easy of use with 7 inch touch screen together with 3 external keys
2. A broad wavelength range of 340-750nm
3. Able to use individually or connect with PC and export results or a PAD with Android system
4. Absorbance range: 0.0~4.000Abs
5. 8 positions optical filter wheel, equipped with 4 standard optical filters
6. Fast and accurate measurement of 96-well plates within 6 seconds
7. Convenient built-in shaker
8. Wide-format internal thermal graphical printer
9. Wide applicability for life science and clinical laboratories
10. Additional reference channel for optimized light intensity
11. Endpoint, kinetic and multi-label measurements for a variety of applications
12. Shaking with variable time and speed
13. PC software, APP software and bulit-in software for powerful and validated data analysis
Filters:
The AMR-100 Microplate Reader comes with four standard absorbance filters:405, 450, 492, and 630nm. We
also supply custom filters at 5~9nm intervals from 340 to 750nm on request.
Software:
AMR-100 keeps with high visual and logical user interface of software, it can be offered a comprehensive inbuilt
calculations, such as blank subtraction, quantitative curve fit, quanlitative classification and kinetic calculations,
as well as the versatile reporting tool and make data reduction.
Technical Specifications:
| Model | AMR-100 |
| Display | 7 inch touch screen (800x480 dots) |
| Light source | Quartz-halogen lamp 6V/10W |
| Wavelength | 340-750nm |
| Optical filter | Equipped with filters: 405,450,492,630nm |
| Half-bandwidth of filters | 3~9nm |
| Read-out range | 0~4.000Abs |
| Linearity (405nm) | 0~2.000Abs ≤±1%, 2~4.000Abs ≤±2% |
| Resolution | 0.001Abs |
| Accuracy (405nm) | ±1% (0-3Abs), ±2% (3-4Abs) |
| Precision(405nm) | CV≤0.2% (0-3Abs), CV≤1.0% (3-4Abs) |
| Test speed | <6s for 96 wells plate |
| Incubator | No |
| Shaking | 3 modes shaking: slow, medium and fast |
| User interface | Integrated software or PC control software |
| Operation | Touch screen, 3 pcs external keys |
| Storage | 200 programs and 100,000 test records |
| Ports | 3 USB ports, for PC, printer and USB-disk |
| Dimensions(W x D x H), weight | 440 x 295 x 225 mm, 10kg |
