AELAB Melting Point Device with Microscope DMP-100 DMP-200

Model NO.
DMP-100 DMP-200
AELAB Melting Point Device DMP-100 using in chemical industry and medicine. It is a necessary instrument for the production of food, drugs, spices, dyes and other organic crystal substances.
Quantity:

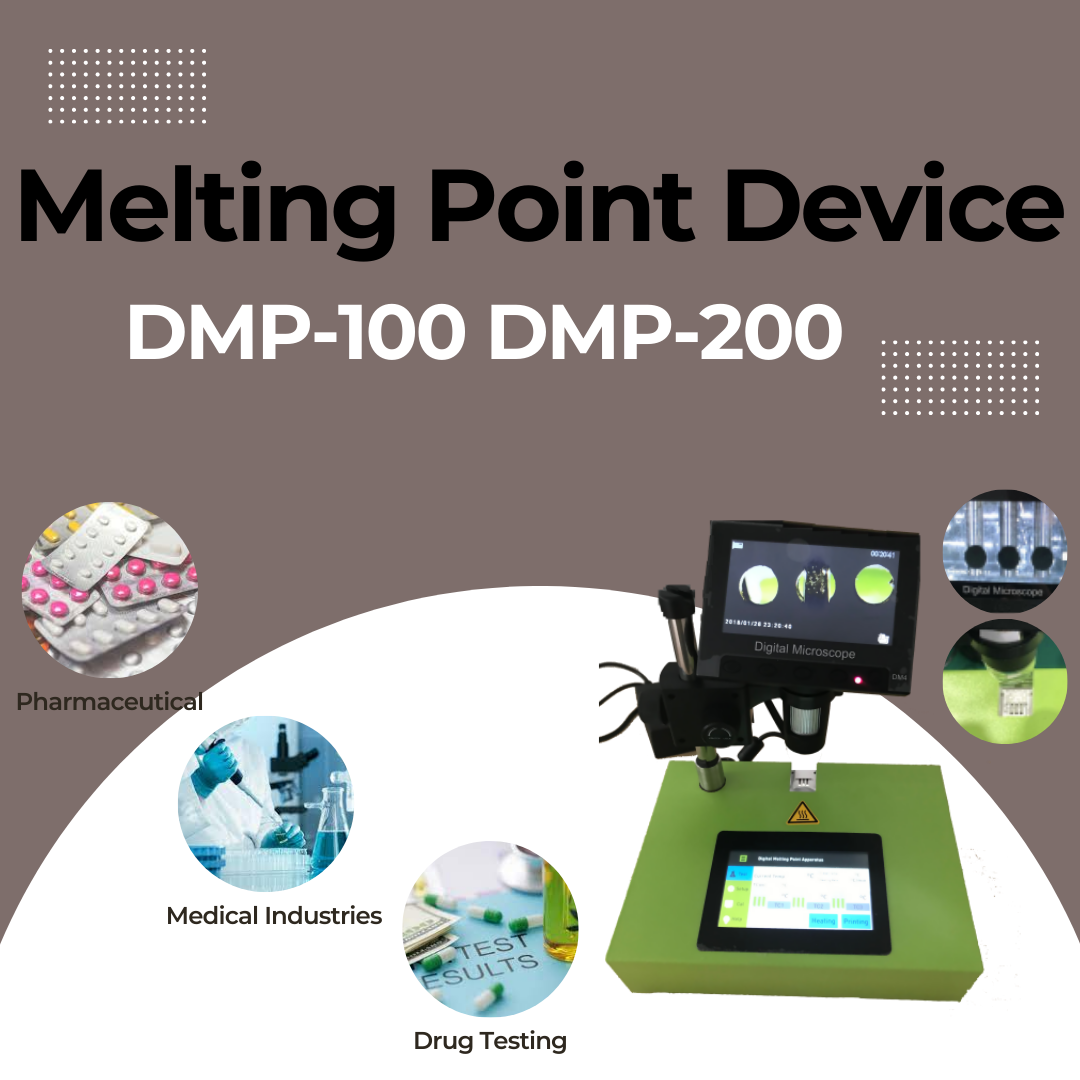

AELAB Touch Screen Melting Point Device with Microscope DMP-100 DMP-200

AELAB  melting point device is widely using in chemical industry and medicine. It is a necessary instrument for the production of food, drugs, spices, dyes and other organic crystal substances.


Application fields:
+ Pharmaceutical
+ Medical Industries
+ Drug Testing



Features:

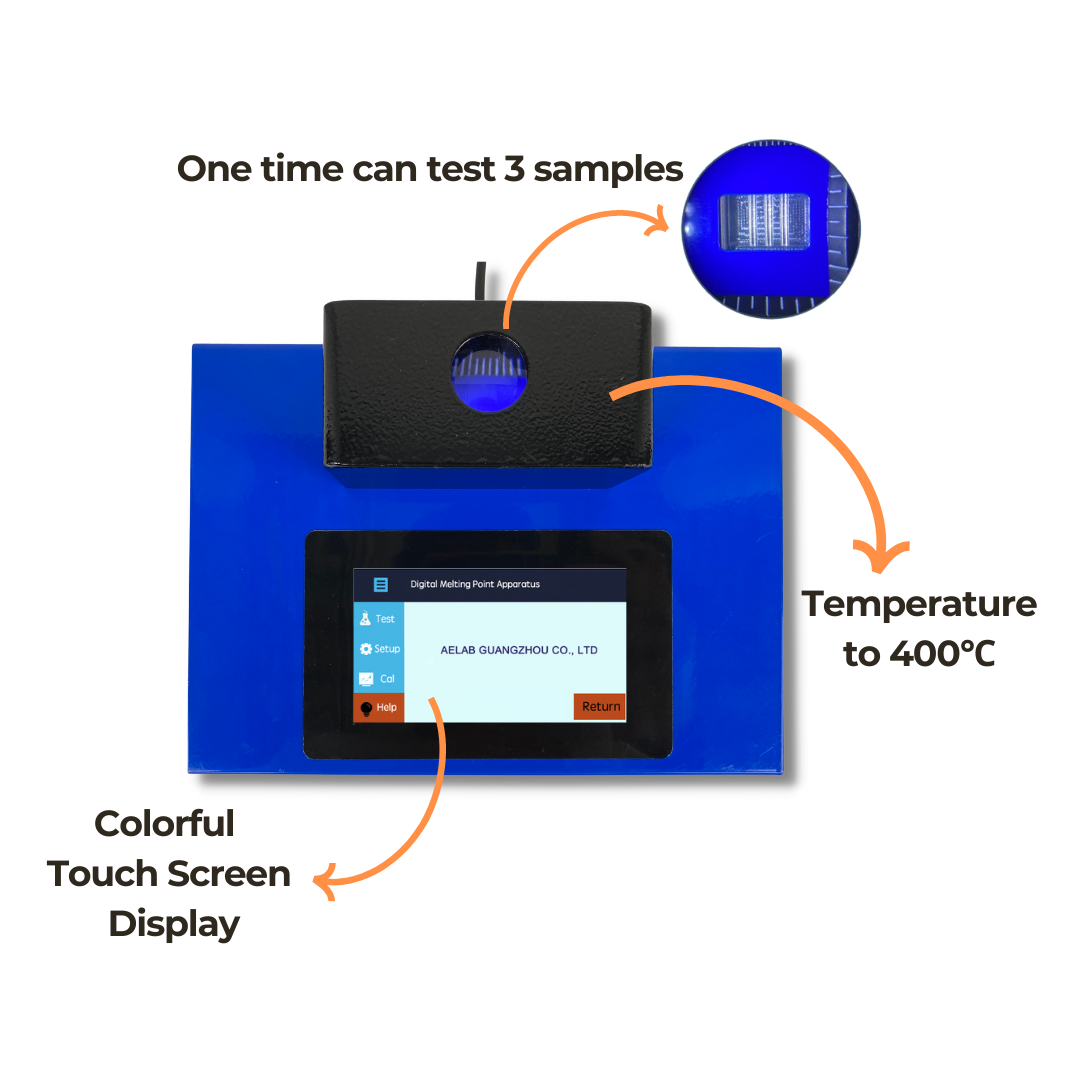

+ Process 3 samples at a time .

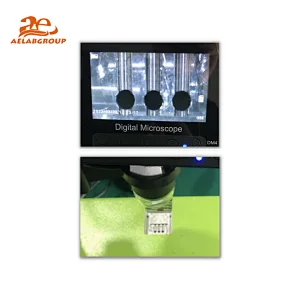

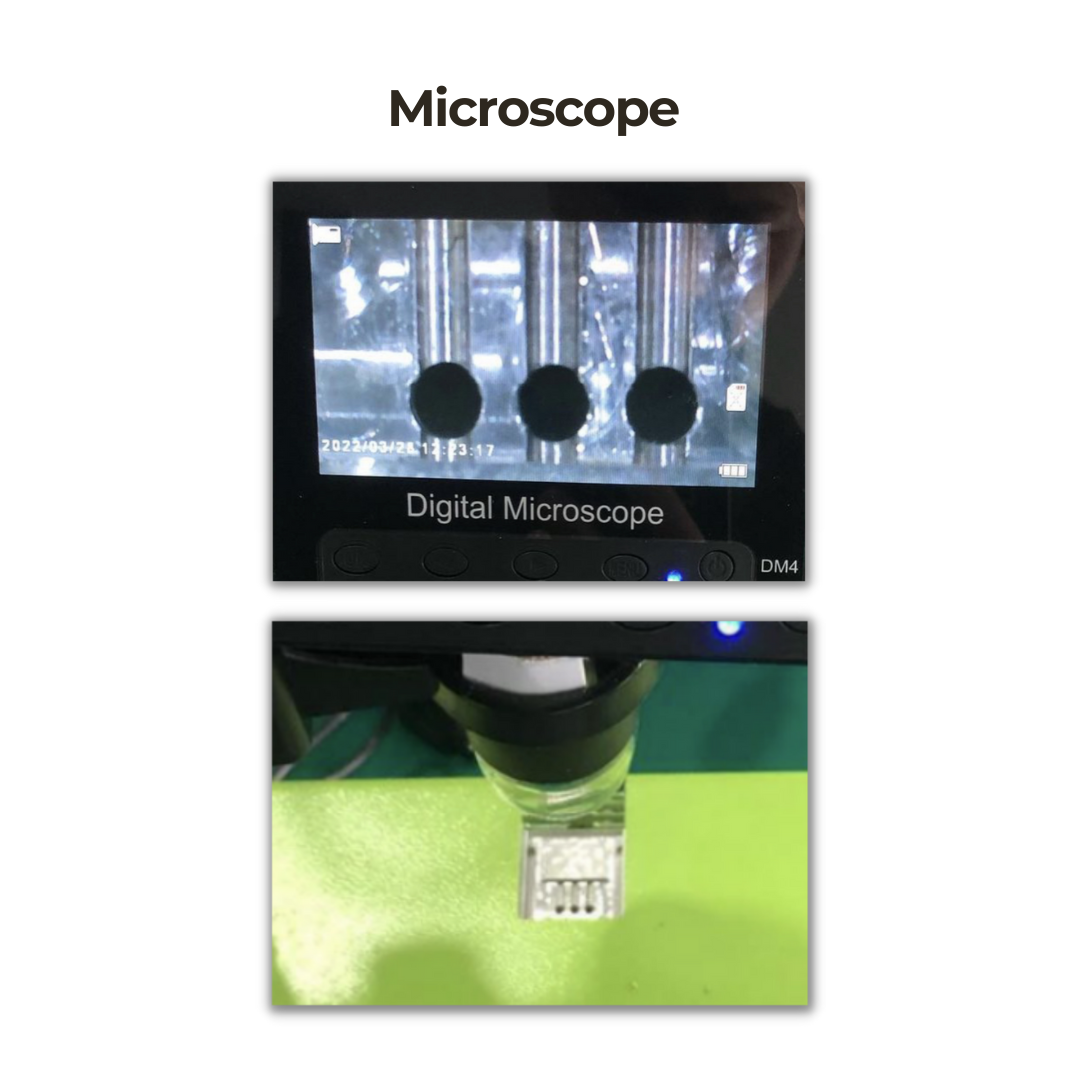

+ The video clearly sees the melting process of the sample .
+ The heating rate (0.1-10) °C/min can be set arbitrarily .
+ Capillary tube or glass slide load the sample .
+ The fan automatically cools down (DMP-100) .




 Technical Specifications:

ModelDMP-100DMP-200
Temperature RangeRoom Temperature to 400Room Temperature to 350
Cooling FunctionBuilt-incooling fanNo
PC SoftwareInclude PC softwareNo
Resolution0.1
Temperature Increase Speed0.1-10 (100temperature point infinitely adjustable)
Temperature Control MethodPID control temperature, fully closed design of furnace body
Accuracy±0.4℃(<250℃),±0.7℃(>250℃)
RepeatabilityWhen0.1/Min,repeatability±0.3
DisplayFTF High Solution Color Touch Screen
OutputRS232 interface
Sample Tube external diameter φ1.6mm,internal diameter :φ1.2mm
Voltage100V-240V  50HZ-60HZ
Power100W
Size250mm*250mm*150mm
Weight1.5kg

  Machine Display:




#melting point apparatus
#touch screen meling point




Better Solutions, Better Science

Perfessional Supply and Service








You Make Money ,We Make Solution.

Succeed with AELAB!

  • AELAB Melting Point Device DMP-100 DMP-200.pdf:Downloads
