AELAB Vortex Mixers AVT-501
AELAB Vortex Mixers AVT-501
AELAB Vortex Mixers AVT-501
AELAB Vortex Mixers AVT-501
AELAB Vortex Mixers AVT-501
AELAB Vortex Mixers AVT-501
AELAB Vortex Mixers AVT-501

AELAB Vortex Mixers AVT-501

Model NO.
AVT-501
+ Speed adjustable from 0-2500rpm (AVT-501).
+ Fixed speed of 2500rpm (AVT-502).
+ Standard configuration with an adapter for Ø30mm tube or smaller.
+ 3 position power switch with touch/continuous modes of operation.
+ Wide range of accessories available.
+ Shaded pole motor for less maintenance.
+ Good corrosion resistant aluminum alloy casing exterior.
+ Small rubber vacuum grippers hold the unit during operation.
+ LED indicator of power.
Quantity:

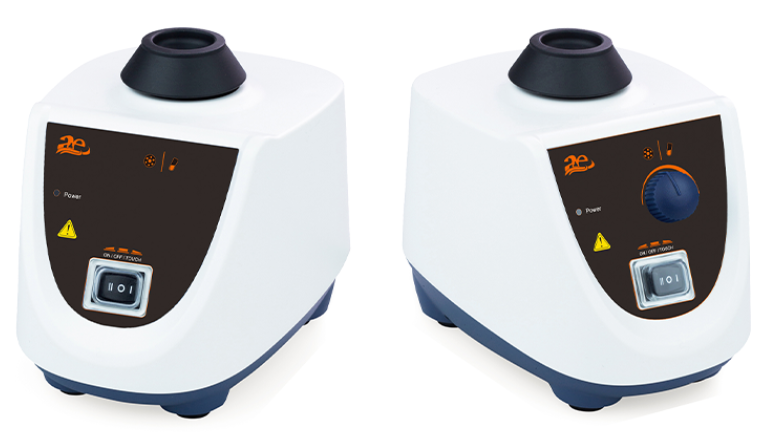

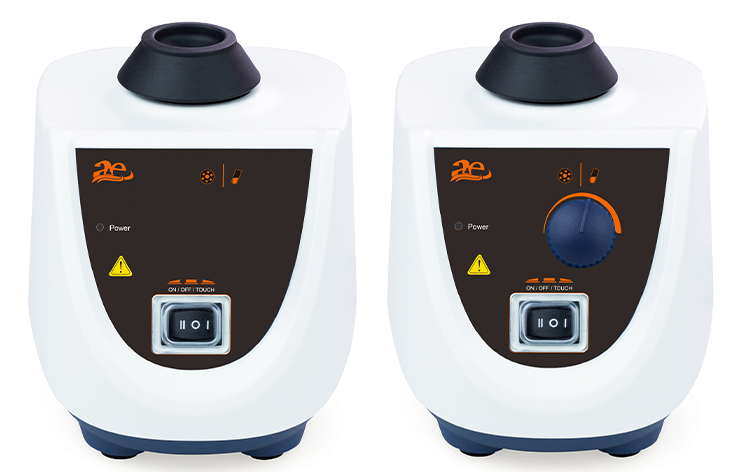

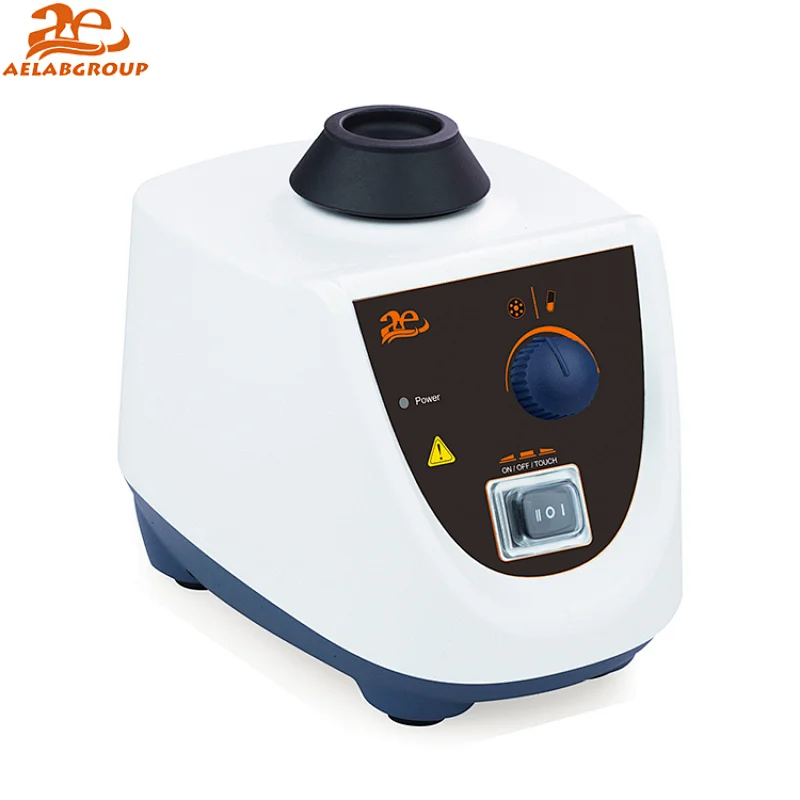

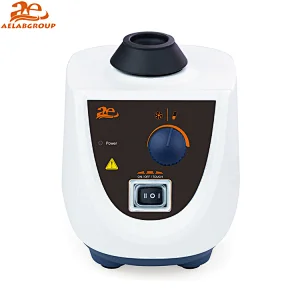

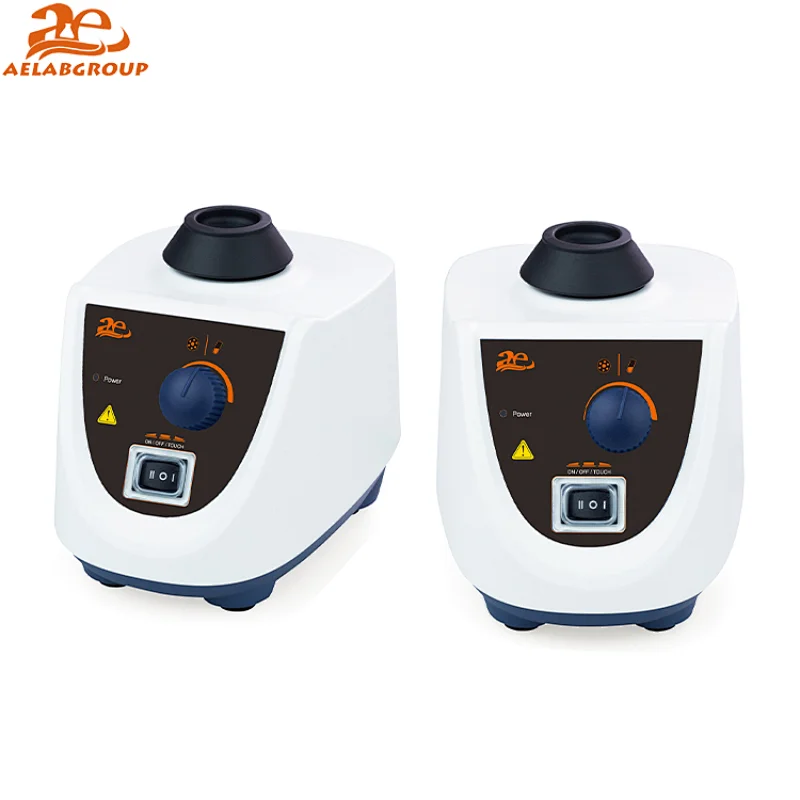

AELAB Vortex Mixers AVT-501
Vortex mixer is used in most bioscience laboratories for mixing liquids in tubes. In a biochemical or analytical laboratory they may be used to mix the reagents of an assay or to mix the experimental samples.

Features:
+ Speed adjustable from 0-2500rpm (AVT-501).
+ Fixed speed of 2500rpm (AVT-502).
+ Standard configuration with an adapter for Ø30mm tube or smaller.
+ 3 position power switch with touch/continuous modes of operation.

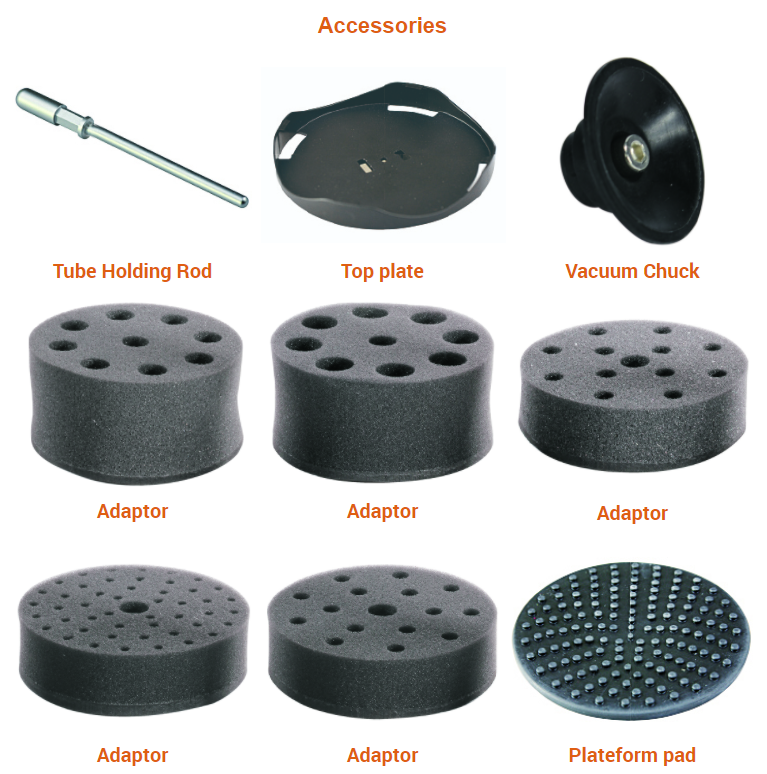

+ Wide range of accessories available.
+ Shaded pole motor for less maintenance.
+ Good corrosion resistant aluminum alloy casing exterior.
+ Small rubber vacuum grippers hold the unit during operation.
+ LED indicator of power.


Technical Specifications:

SpecificationsAVT-501 (Adjustable speed 0-2500rpm )AVT-502 (Fixed speed 2500rpm)
Voltage110-120V/220-230V,50/60Hz110-120V/220-230V,50/60Hz
Power60W60W
Mixing motionOrbitalOrbital
Orbital diameter4mm4mm
Motor typeShaded pole motorShaded pole motor
Motor rating input58W58W
Motor rating output10W10W
Speed range0-3200rpm3200rpm
Speed displayScale---
Run typeTouch operation/ContinuousTouch operation/Continuous
Dimension[W×H×D]127×130×160mm127×130×160mm
Weight3.5kg3.5kg
Permissible ambient temperature5-40 °C5-40℃
Permissible relative humidity80%RH80%RH
Protection classIP21IP21
